FTVOGUE DC10-60V 20A Pulse Width Modulator PWM Motor Speed Controller Waterproof Shell Regulate Speed Rotary Switch,Module
Availability: Pre-Order, Inquiry Price
About this product

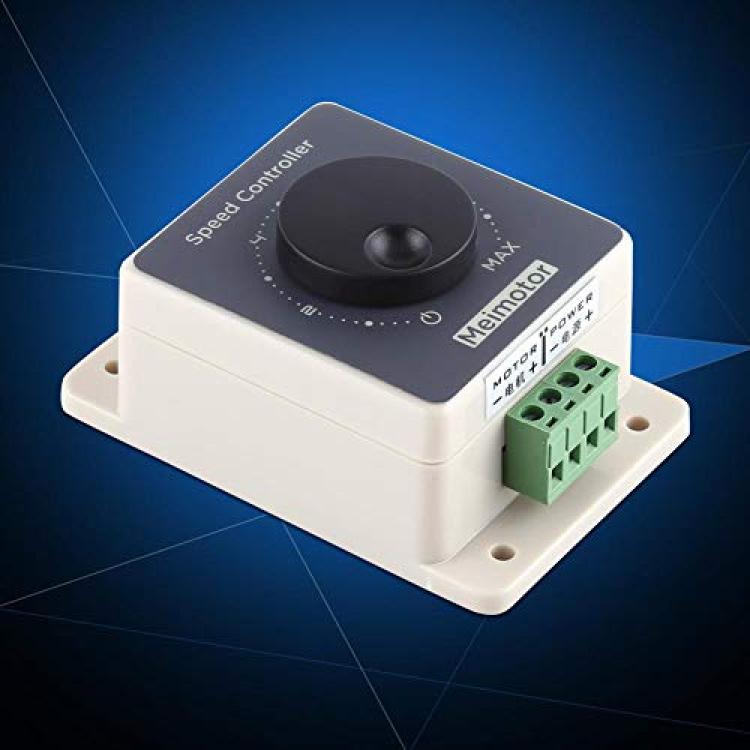

*This speed controller has a delicate and practical housing which is waterproof so you can use it out of doors

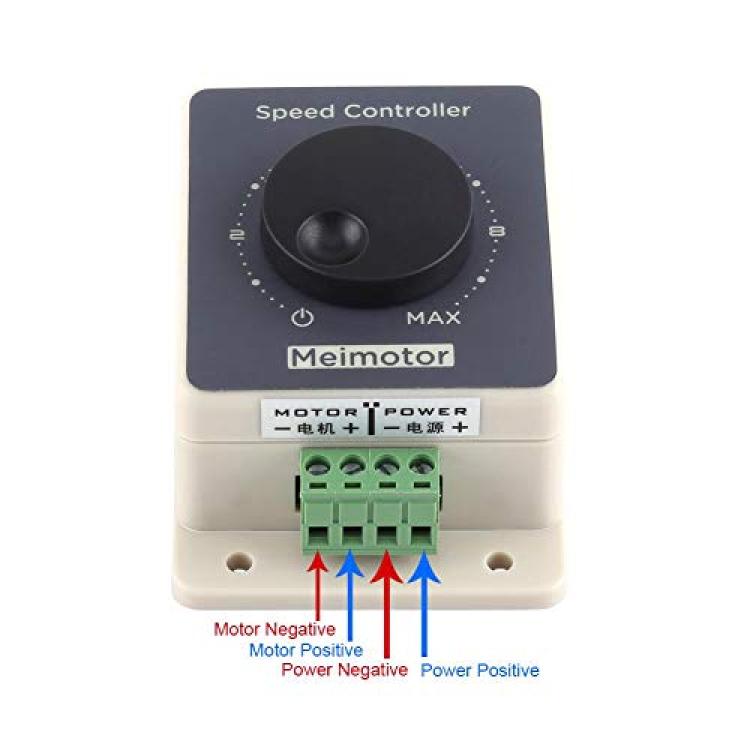

*Comes with screw terminal and a indication label of power and motor electrodes for convenient wiring
*DC motor controller input is connected to direct current, can not be connected to alternating current, or it will be burnt
*Make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged
*Suitable for 12V motors with power less than 120W, 24V motors with power less than 240W, etc
Description
Description:

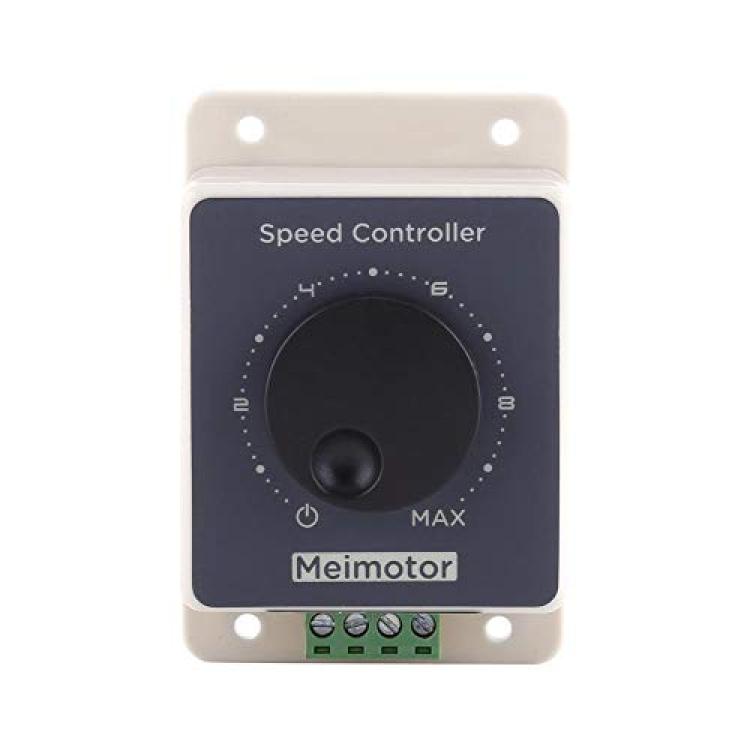

This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance.
It is made with high quality circuit board which ensures a longer service life.Â
The input voltage can be DC 10V to 60V and output voltage is 0-100% of the input voltage.Â
This speed controller is quite convenient to set.
Specifications:
Potentiometer Resistance: B100K
Input Voltage Range: DC 10V-60V
Output Voltage: 0-100% of the input voltage
Control Power: 12V*10A=120W,24V*10A=240W......
Rated Current: 10A
Max Current: 20A
Speed Range: 5%-100%
PWM Frequency: 25Khz

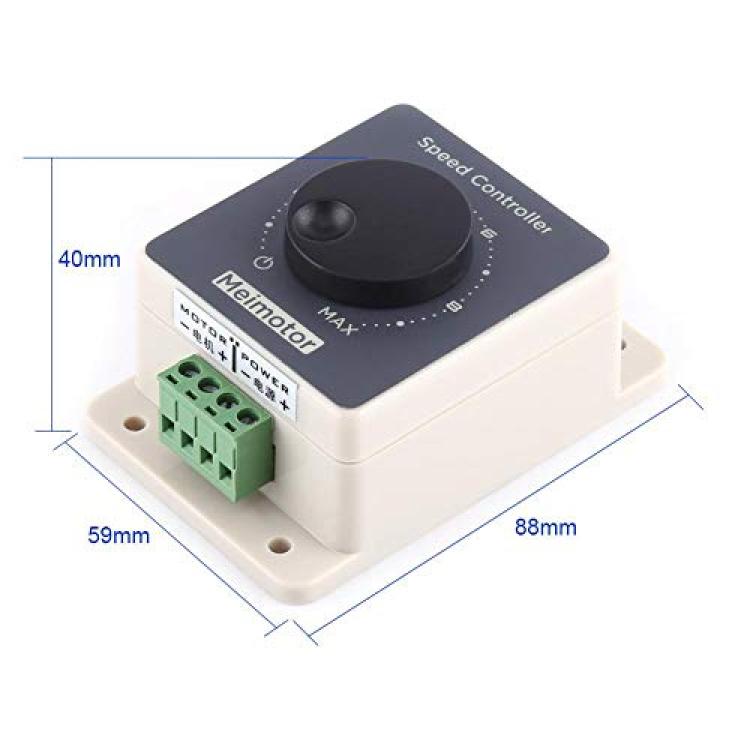

Size: 88 x 59 x 40mm / 3.46 x 2.32 x 1.57"
Tap Hole Size: 8mm / 0.31"
Package Includes:
1 x Speed Controller
