DC Motor Speed Controller, 10-60V 20A Pulse Width Modulator PWM HHO RC Speed Regulator Motor Speed Controller Waterproof Shell High Power 20A with Housing
Availability: Pre-Order, Inquiry Price
About this product

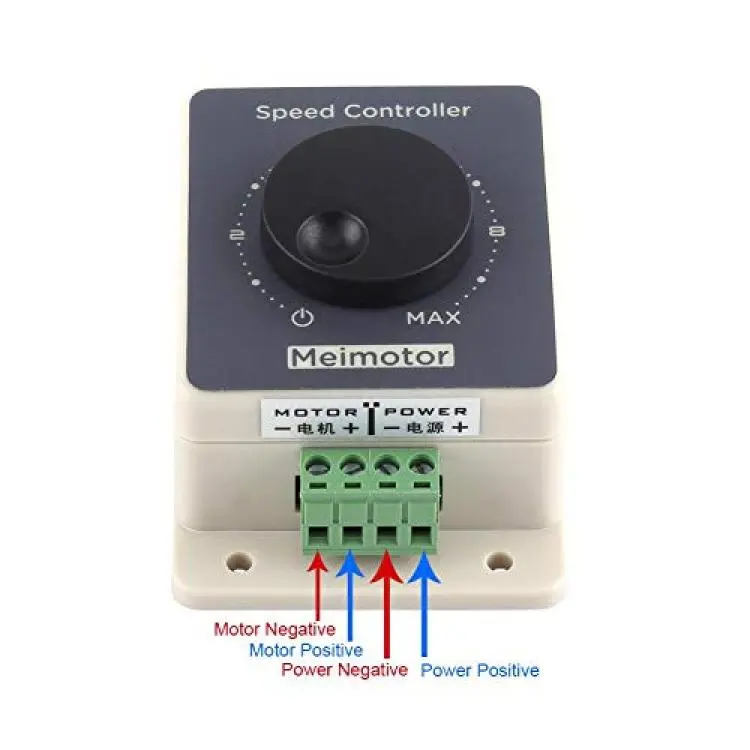

*♜ 【Professional】 Comes with a screw terminal and a label for the power and motor electrodes for convenient wiring
*♜ 【Waterproof】 This speed controller has a delicate and practical case that is waterproof so you can use it outdoors
*♜ 【Note】 Make sure the positive and negative polarity are connected correctly, otherwise the controller will be damaged
*♜ 【Application】 Suitable for 12 V motors with an output of less than 120 W, 24 V motors with an output of less than 240 W, etc.
*♜ 【Direct Current】 The DC motor controller input is connected to direct current, cannot connect to alternating current, or it will be burned
Description
Description:
This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 10V to 60V and output voltage is 0-100% of the input voltage. This speed controller is quite convenient to set.
Features:
This speed controller has a delicate and practical housing which is waterproof so you can use it out of doors. Comes with screw terminal and a indication label of power and motor electrodes for convenient wiring. DC motor controller input is connected to direct current, can not be connected to alternating current, or it will be burnt. Make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged. Suitable for 12V motors with power less than 120W, 24V motors with power less than 240W, etc.
Specifications:
Potentiometer Resistance: B100K
Input Voltage Range: DC 10V-60V
Output Voltage: 0-100% of the input voltage
Control Power: 12V*10A=120W,24V*10A=240W......
Rated Current: 10A
Max Current: 20A
Speed Range: 5%-100%
PWM Frequency: 25Khz

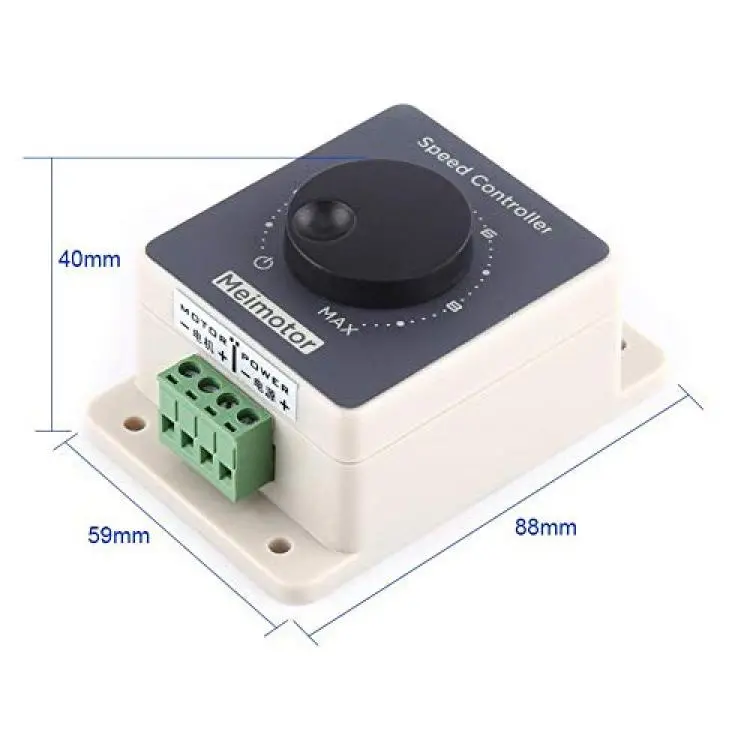

Size: 88 x 59 x 40mm / 3.46 x 2.32 x 1.57"
Tap Hole Size: 8mm / 0.31"
Package Includes:
1 x Speed Controller
