1axis Nema34 Stepper Motor 34HS5460 1600oz 6.0A 151mm & Driver CNC
Availability: Pre-Order, Inquiry Price
About this product

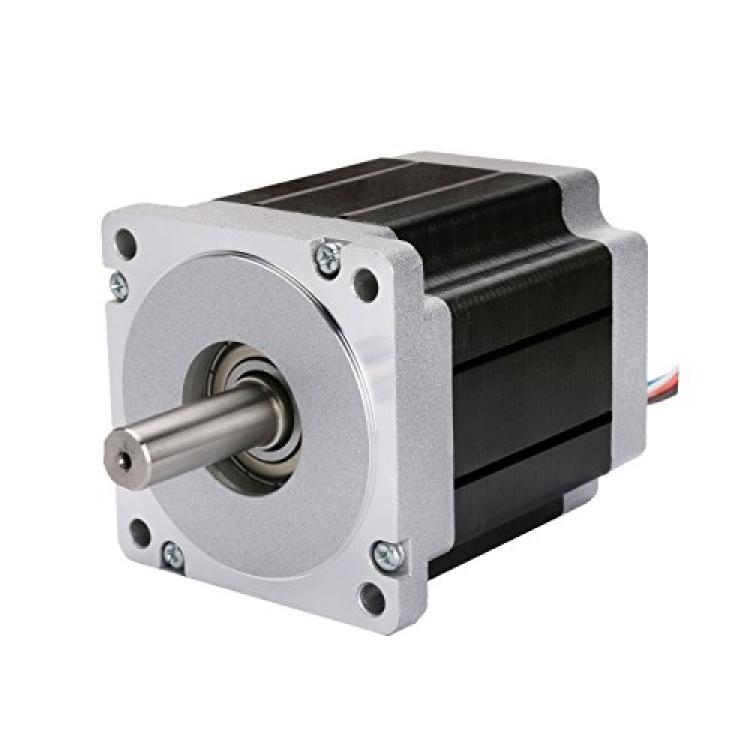

*1. Nema 34 Stepper Motor: Nema 34 Stepper Motor Bipolar 150mm Body 24.5Ncm Torque 4 Lead W 6.0A with 1.8 Step angel CNC
*2. Stepper Motor Driver: DM860A Stepper Motor Driver 2 Phase 2.8A-7.8A Voltage 24-80VDC

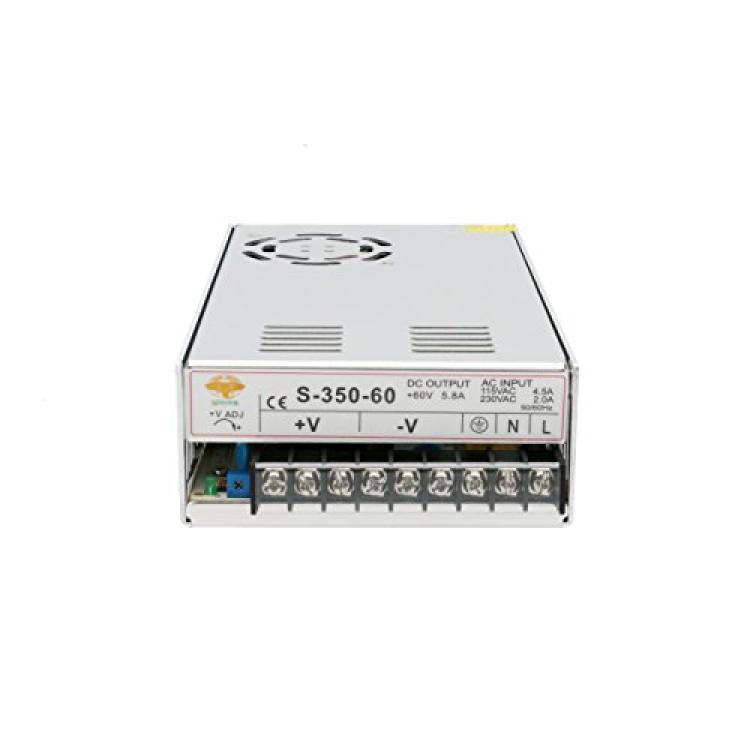

*3. Power Supply: 350W(60VDC/5.8A)

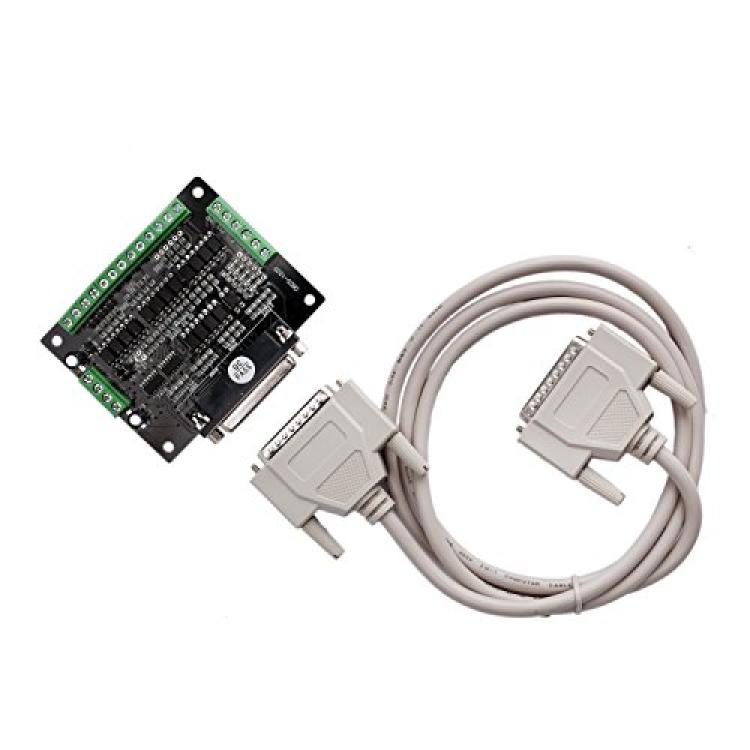

*4. CNC Breakout Board DB25
*1. Nema 34 Stepper Motor: Nema 34 Stepper Motor Bipolar 150mm Body 24.5Ncm Torque 4 Lead W 6.0A with 1.8 Step angel CNC
Description

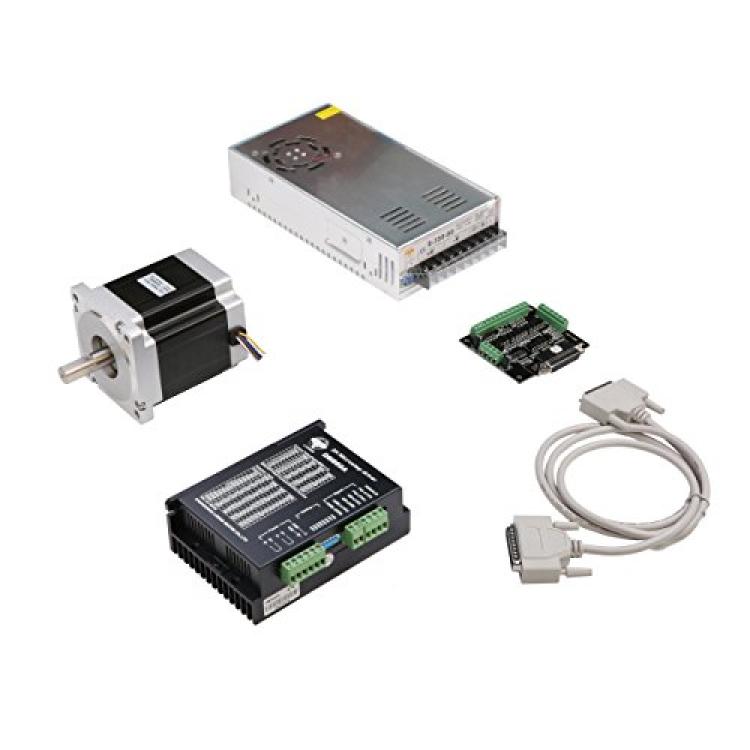

This item includes: 1PC Stepper Motor Nema34 34HS5460 6.0A 1600oz-in 1PC Stepper Motor Driver DM860A 7.8A 80 256Microsteps 1PC Power Supply 350W 60V 1PC Breakout Board&1PC Cable For free Model 34HS5460 Step angle ( ° ) 1.8 Motor Length L(mm) 151 Rate Voltage(V) 3.6 Rate Current (A) 6.0 Phase Resistance (?)0.6 Phase Inductance (mH)8 Holding Torque (oz.in) 1600 Lead Wire (NO.) 4 Rotor Inertia(kg. cm2) 3.6 Motor Weight (kg) 5 DM860A: Input voltage?24-80VDC Input current?<6A Output current?2.8A?7.8A Consumption?80W? Internal Insurance?10A Temperature?Working Temperature -10?45?? Stocking temperature -40??70? Humidity?Not condensation, no water droplets Gas?Prohibition of combustible gases and conductive dust Weight?500G
