FTVOGUE DC 6-60V PWM Motor Speed Controller 12V 24V 36V 48V 30A Stepless Speed Regulation Digital Display Electronic Governor,Motor Equipment Accessories
About this product
*Speed controller is made with high quality circuit board which ensures a longer service life
*This simple and easy-to-use DC motor speed controller has an stable performance

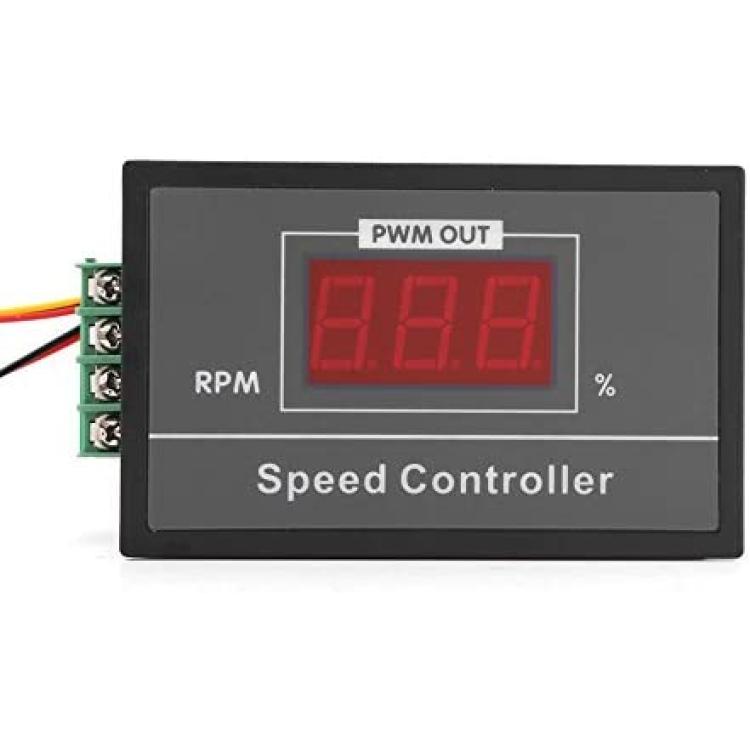

*Designed with a digital display that shows the rate in percentage of actual speed to maximum speed
*This motor speed controller uses screw terminals for convenient and quick wiring
*Comes with a momentary start/stop switch and a speed control potentiometer
Description
Specifications:
Input Voltage Range: DC6V-60V (input voltage should be same as motor rated voltage)
Output Voltage: Linear with load
Output Current: 0A-30A
Continuous Current: 20A
Speed Range: 0% to 100%
Regulation Method: Potentiometer
Regulation Type: Regulating Current
Control Frequency: 15KHz
Wiring Type: Screw terminal
Package Includes:
1 x Speed Controller
Note:
Please allow small size error due to manual measurement. Thanks for your understanding.
