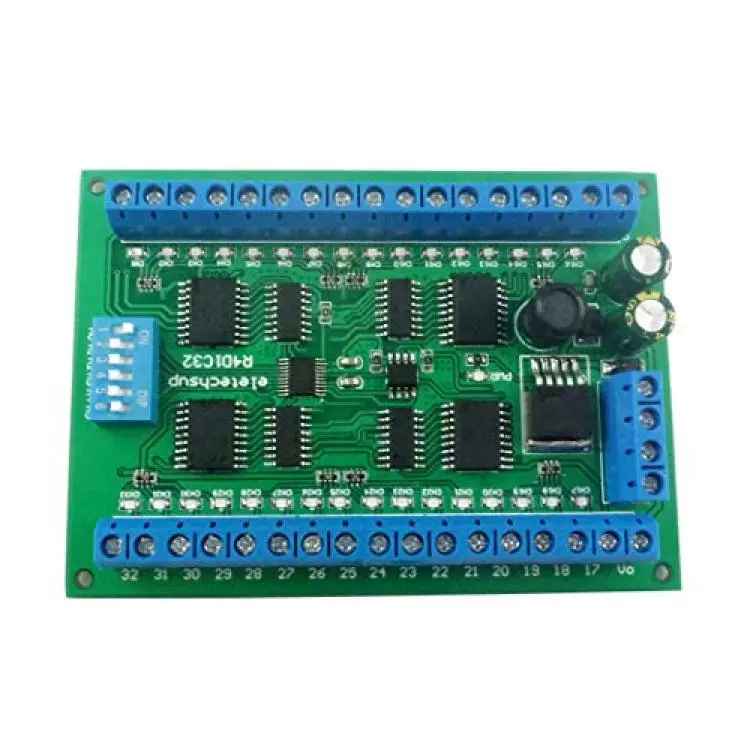

Eletechsup DC 6.5-30V 32ch DIN35 C45 Rail Box RS485 Modbus RTU Controller 300MA Driver Module for PLC Relay Switch LED Motor (Only Board)

Description:

1: Working voltage: DC 6.5-30V (9V 12V 24V)

2: Standby current All channels are closed) 5MA,All channels open 57MA.

3: ''Open'' ''Close''  ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands

4: MODBUS RTU command

5: Under the ''Delay'' command ,the maximum delay is 255 seconds

6 MODBUS commands can be made serial HyperTerminal (serial assistant)  OR ''Modbus Poll'' Enter;

7 Under the MODBUS command mode, it can support up to 64 devices in parallel

8 The default baud rate is 9600BPS. The baud rate can be modified by instructions: 1200 2400 4800 9600 19200BPS

9  Size: 100 * 72 * 20mm(Only PCB Board);120 * 88* 42mm(with Din Rail Box)

10 Weight: 65g(Only PCB Board);144g(with Din Rail Box)

11 Maximum load: The maximum drive current of each channel is 300MA

For more information, please contact me

DIN rail Box parameters:

Product model: UM72

Color: green

Width: suitable for PCB board width UM72(72mm)

Insulation grade: flame-retardant VO grade

Backplane length: suitable for 100 mm PCB boards

Net weight: 72g

Installation: DIN35 and C45 rail

Application



Automated industry PLC

Smart Home,Home Automation ,Wiser Home;

PTZ Camera

Security Monitoring

Identification system;

Line Drivers

IP Camera

LED Lamp Drivers

Automatic curtain control

Typical applications:

 MODBUS command mode (HEX), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control
