CHANCS 775 Motor DC 12V/24V Table Saw Kit High Power Torque Circular Saw With Saw Blade Chuck And Saw Blade

CHANCS 775 Motor DC 12V/24V Table Saw Kit High Power Torque Circular Saw With Saw Blade Chuck And Saw Blade

Brand: ‎CHANCS MOTOR
Product Code: MM24989
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

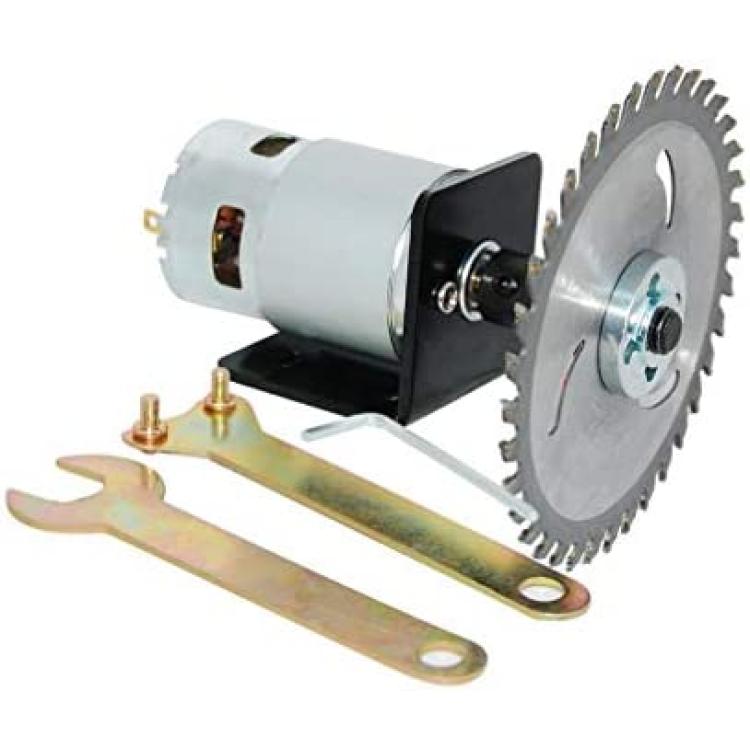

*1.This is a DIY combination of a mini saw. Contains motor, bracket, saw blade chuck, and circular saw blade.

*2.The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.

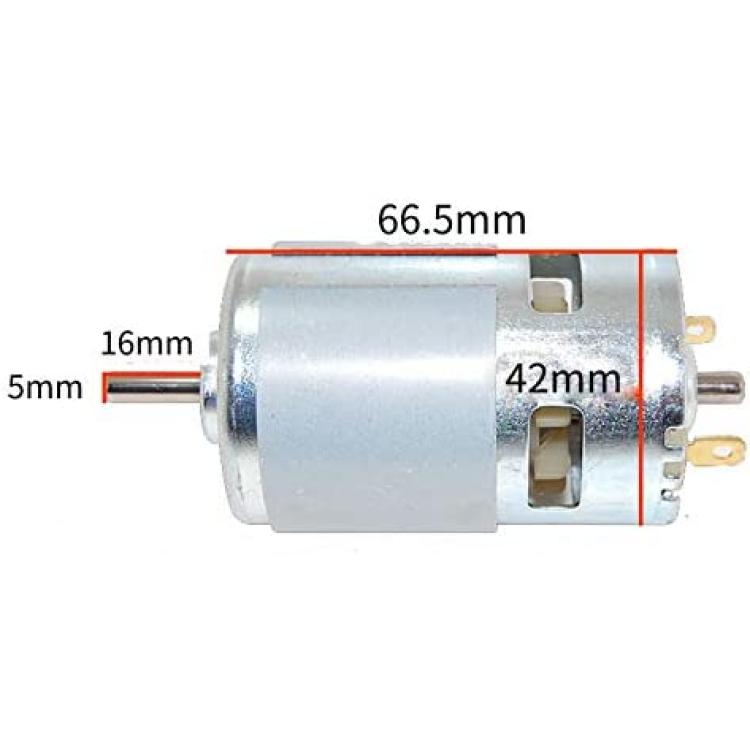

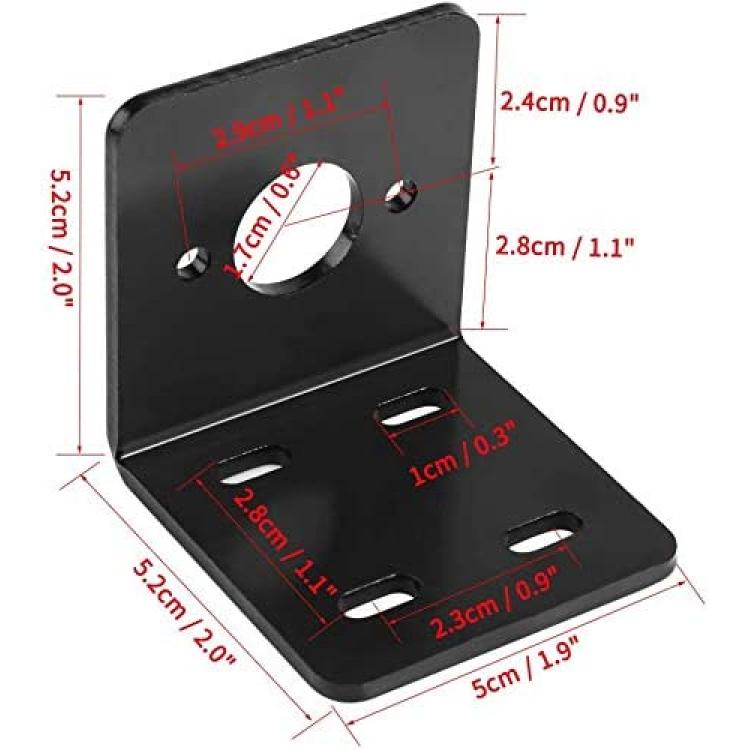

*3.The specification of motor:Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM. Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM. Starting current: 4-5A Motor Body Diameter: 42mm, Motor Body Length: 66.5mm, Shaft Length: 16mm, Shaft Diameter: 5mm. The specification of bracket: Length: 50mm,Width: 52mm,Height: 53mm, Mounting hole diameter: 4mm, Thickness of bracket: 3mm.

*4.Application:Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw for cutting / polishing.

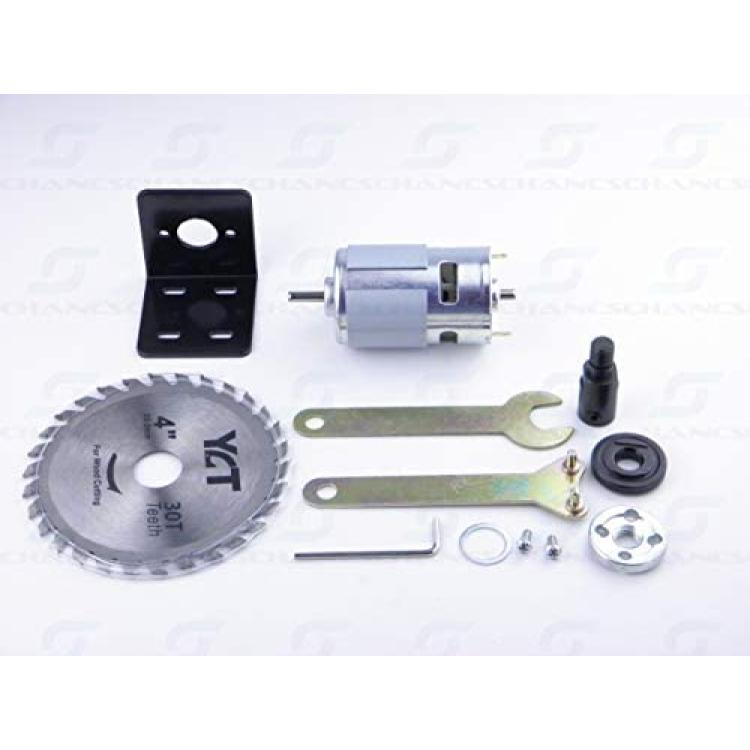

*5.Package: 1PCS x DC Motor, 1PCS x Bracket, 1 Set x Saw Blade Chuck, 2PCS x Screws, 2PCS x Matching Hardware Tools, 1PCS x Saw Blade.

Description

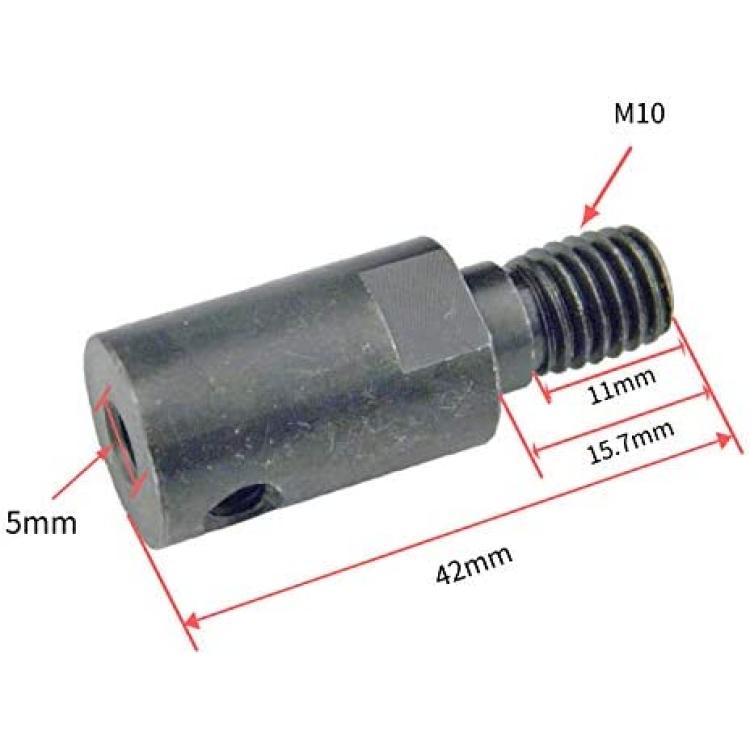

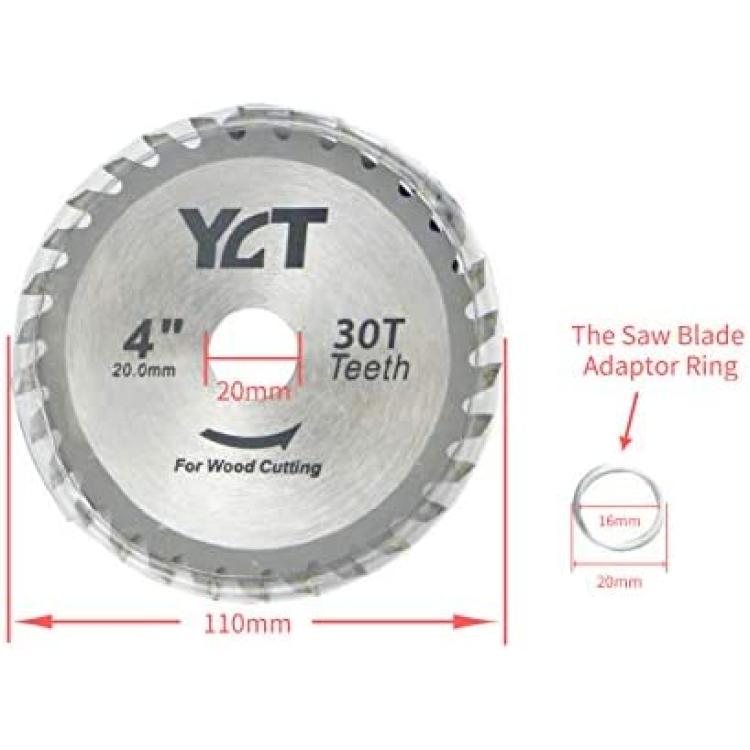

The set can use adjustable speed power supply, or switching power supply.Power supply current can not be less than 10A, the recommended use of current greater than 15A power supply.At DC 12V the motor speed and cutting force is less than at DC 24V. We recommend that you use DC 24V for cutting materials, especially if the material is hard and the motor may not work very well with DC 12V.When installing, please tighten the saw blade and screws so that the saw blade will not fly out and hurt people when the motor starts.Voltage: 12-24V DCSpeed: 10000-20000RPMStarting current: 4-5APower: 100W-200WMotor Body Diameter: 42mmMotor Body Length: 66.5mmShaft Length: 16mmShaft Diameter: 5mmModel : M10?Name: M10 Saw Blade Connecting Rod Set;Bottom Hole Diameter: 5mm;Length:42mm;Length: 50mm?Width: 52mm?Height: 53mm?Mounting hole diameter: 4mm?Thickness of bracket: 3mm?Outer Diameter?110mm;Inner Diameter?20mm;Outer Diameter?20mm;Inner Diameter?16mm;
