CHANCS Electric Motor 12V/24V 10000RPM/20000RPM 775 Table Saw Kit With 20A PWM Speed Controller Regulator Module Board

CHANCS Electric Motor 12V/24V 10000RPM/20000RPM 775 Table Saw Kit With 20A PWM Speed Controller Regulator Module Board

Name: CHANCS Electric Motor 12V/24V 10000RPM/20000RPM 775 Table Saw Kit With 20A PWM Speed Controller Regulator Module Board
Brand: ‎CHANCS MOTOR
SKU: MM800
Availability: InStock

Brand: ‎CHANCS MOTOR
Product Code: MM800
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

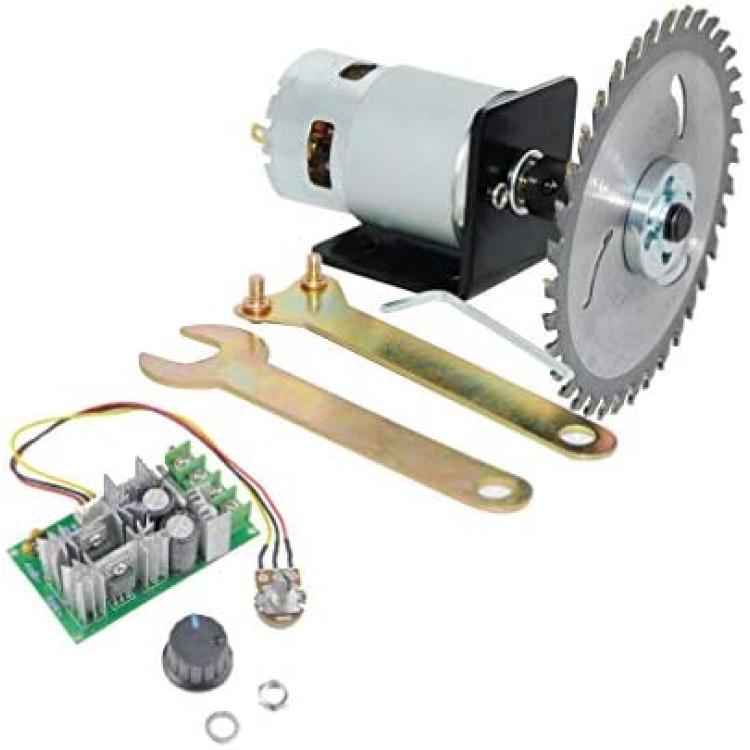

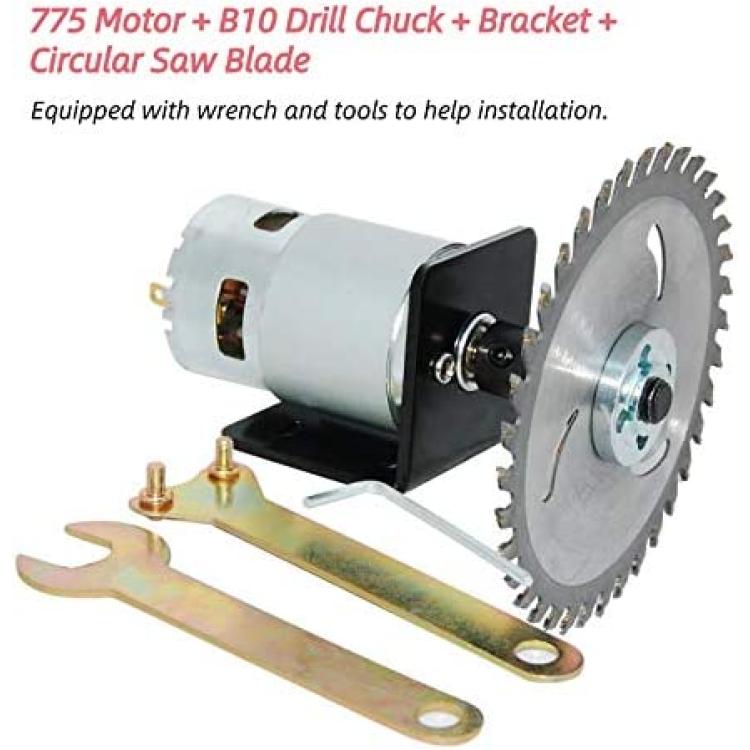

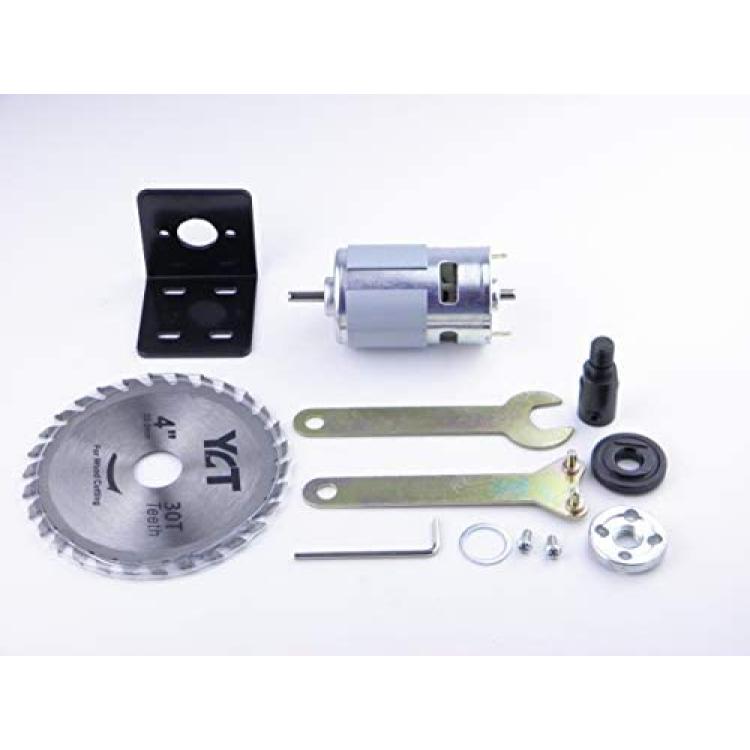

**This is a DIY combination of a mini saw. Contains motor, bracket, B10 drill chuck, saw blade, and 20A DC Motor Speed Controller.

**The specification of motor: Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM. Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM. Starting current: 4-5A, Motor Body Diameter: 42mm, Motor Body Length: 66.5mm, Shaft Length: 16mm, Shaft Diameter: 5mm.

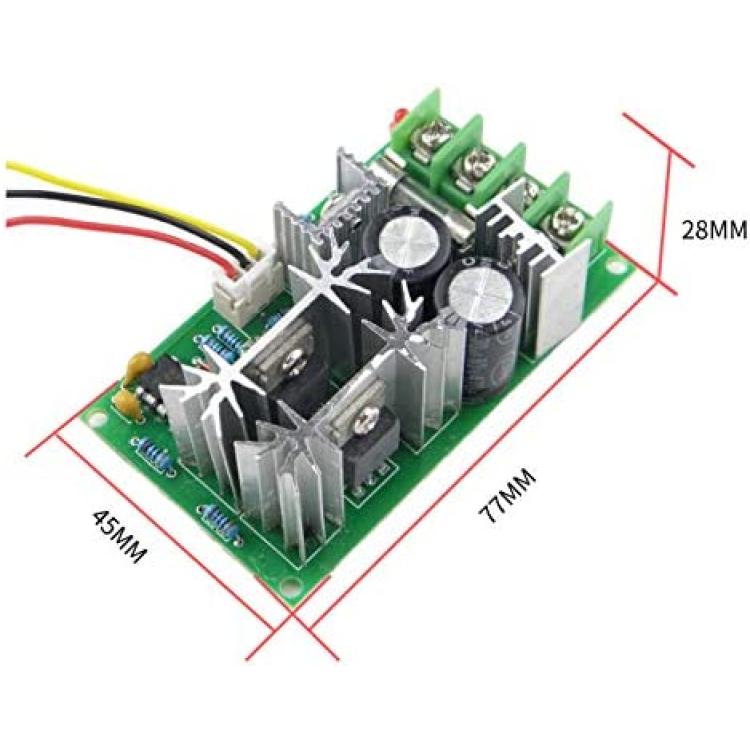

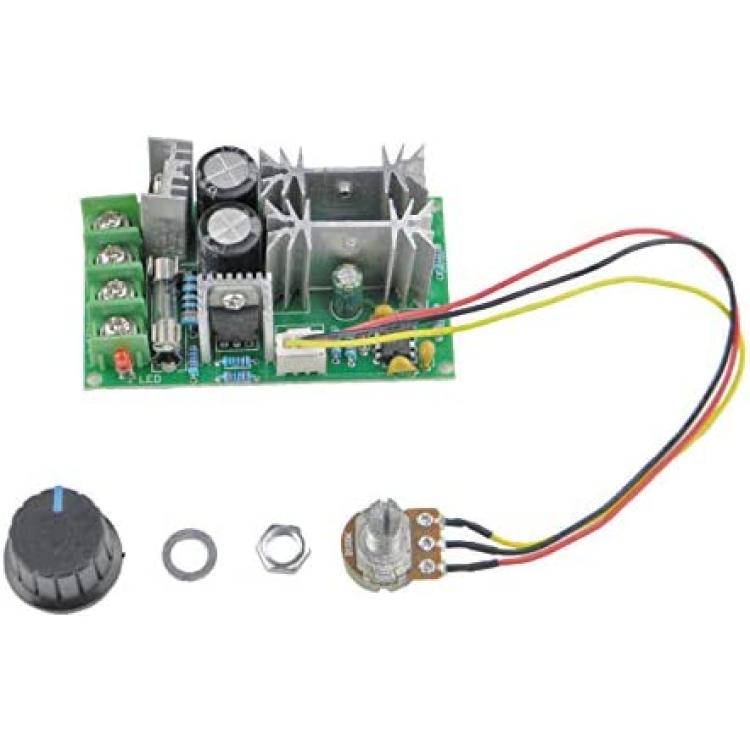

**The specification of PWM: Input Voltage: DC 10V-DC 60V (Ultra wide working voltage)； Output voltage: linear under load； Control Power: 0.01-1200W； Rated Current: 10A； Max Current: 20A (Long-term use of 10A, 450W or less, pay attention to keep the module free of heat dissipation conditions.)； PWM Duty Cycle: 0%-100%； PWM Frequency: 25Khz； Product Size(L x W x H): 77*45*28mm；

**The specification of bracket: Length: 50mm,Width: 52mm,Height: 53mm, Mounting hole diameter: 4mm, Thickness of bracket: 3mm.

**Attention: At DC 12V the motor speed and cutting force is less than at DC 24V. We recommend that you use DC 24V for cutting materials, especially if the material is hard and the motor may not work very well with DC 12V.

Description

The set can use adjustable speed power supply, or switching power supply.Power supply current can not be less than 10A, the recommended use of current greater than 15A power supply.At DC 12V the motor speed and cutting force is less than at DC 24V. We recommend that you use DC 24V for cutting materials, especially if the material is hard and the motor may not work very well with DC 12V.When installing, please tighten the saw blade and screws so that the saw blade will not fly out and hurt people when the motor starts.Voltage: 12-24V DCSpeed: 10000-20000RPMStarting current: 4-5APower: 100W-200WMotor Body Diameter: 42mmMotor Body Length: 66.5mmShaft Length: 16mmShaft Diameter: 5mmModel : M10?Name: M10 Saw Blade Connecting Rod Set;Bottom Hole Diameter: 5mm;Length:42mm;Length: 50mm?Width: 52mm?Height: 53mm?Mounting hole diameter: 4mm?Thickness of bracket: 3mm?Outer Diameter?110mm;Inner Diameter?20mm;Outer Diameter?20mm;Inner Diameter?16mm;Input Voltage: DC 10V-DC 60V (Ultra wide working voltage)?Output voltage: linear under load?Control Power: 0.01-1200W?Rated Current: 10A?Max Current: 20A (Long-term use of 10A, 450W or less, pay attention to keep the module free of heat dissipation conditions.)?PWM Duty Cycle: 0%-100%?PWM Frequency: 25Khz?

Tags: DIY Mini Saw Kit, 12V 24V Motor, 10000RPM 20000RPM, Speed Controller, PWM Regulator, Table Saw, DC Motor, 775 Motor, RC Motor, Hobby Motor, Miniature Saw
