WSDMAVIS 1 Pcs Digital PWM DC Motor Speed Controller 0~100% Speed Variator DC 10-55V 40A Time Reversible LCD Screen for Brush Motor 12V 24V 36V 48V
About this product
*Intelligent dual mode manual Fully automatic two modes are available.Slow start and slow down time can be set with speed upper limit lower limit setting.

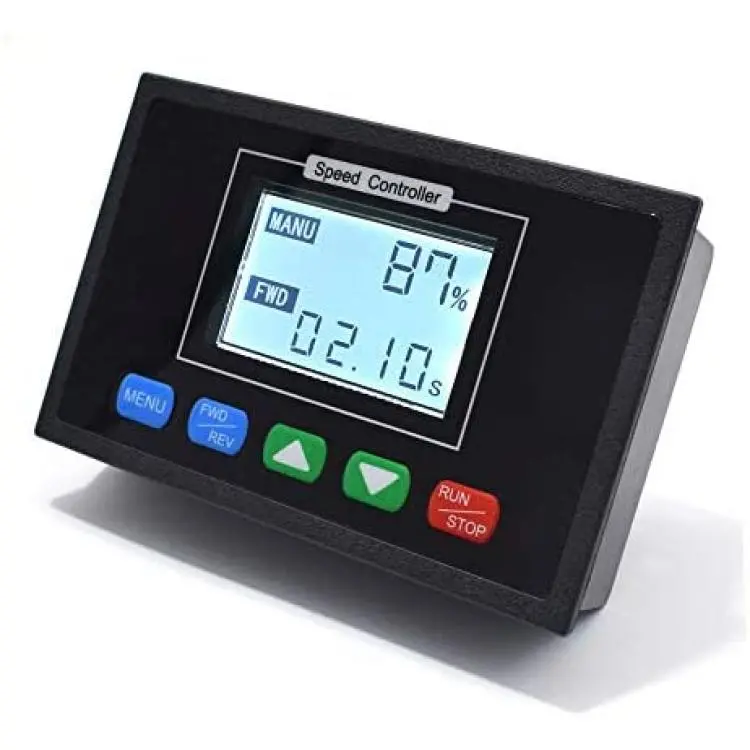

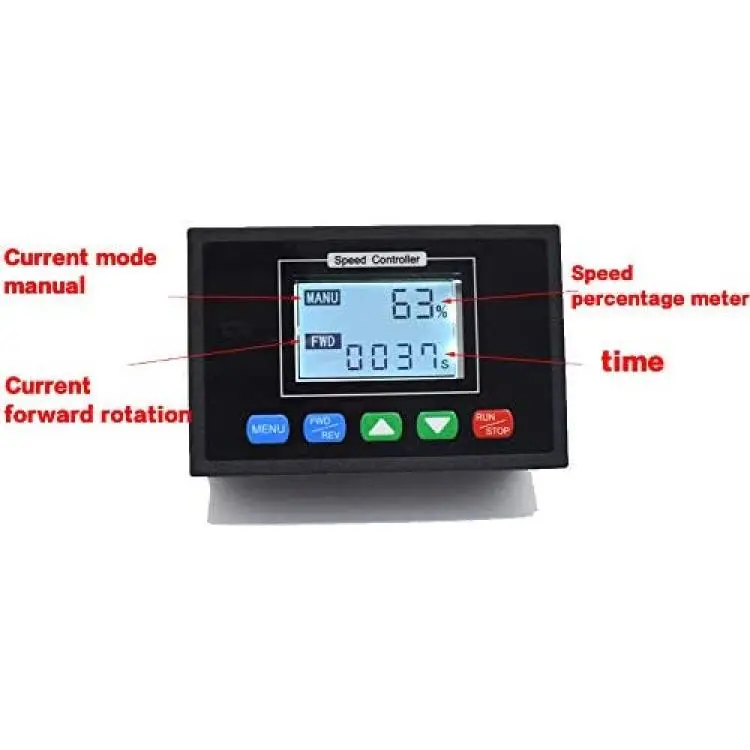

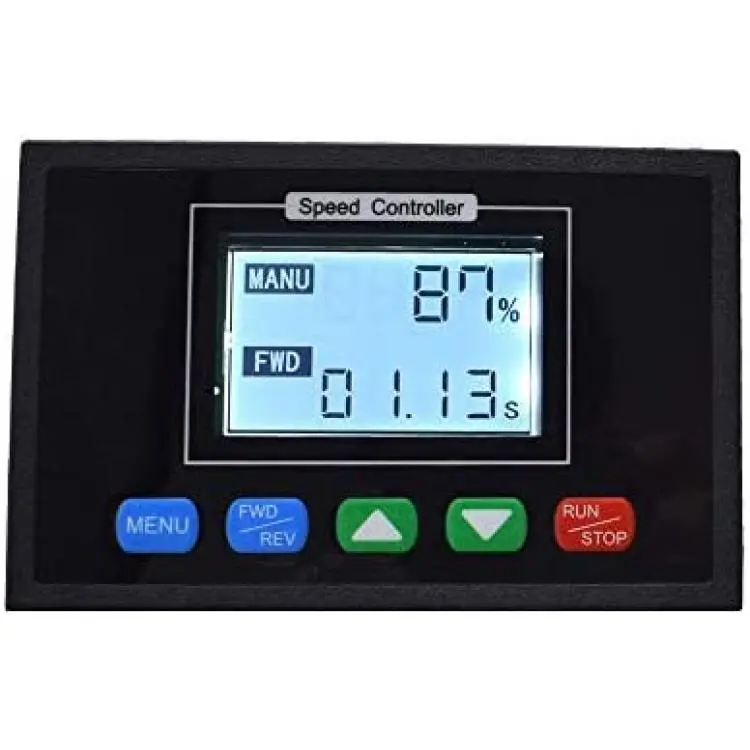

*LCD screen with backlight capable of displaying working time speed percentage current mode forward rotation reverse state.
*Tact switch to switch forward and reverse jog acceleration and deceleration solves the problem of traditional potentiometer.
*Can set working time, time to point stop.
*Input voltage: DC10-55V;Output voltage: linear under load;Instantaneous current: 40A;Continuous current: 30A;Speed control type: adjust current;Speed range: 0 - 100%;Control frequency: 15KHZ;Support motor: brush motor;Wiring type: fence terminal block.
Description
Size:
Module size: 136mm * 89mm * 37mm / 5.34in * 3.5in * 1.45in
Panel opening:129mm * 81.5mm / 5.07in * 3.2in
0-1-2-3-4-5-6-7-8-9 function settings are as follows:
Press MENU key 1-10 to enter 0-9 function respectively
Manual automatic mode selection Function 0: 1 is manual mode,2 is automatic mode.The default is 1 manual mode.

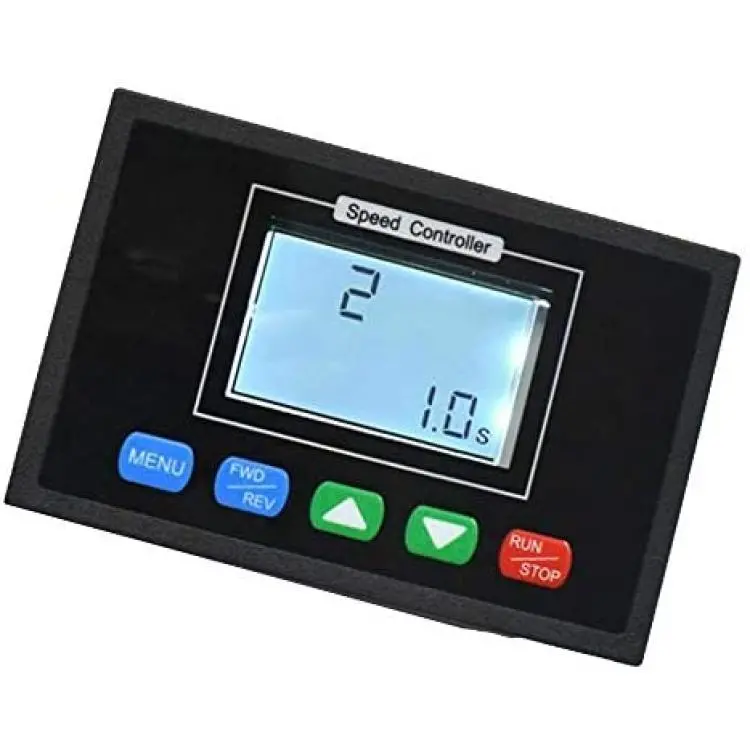

Slow start time setting Function 1: 000 - 100.Slow start to 100%,speed time is adjustable between 0-10 seconds.The default is 1 second.
Slow stop time setting Function 2: 000 - 100.The slow stop time is adjustable between 0-10 seconds. The default is 1 second.
Lower speed limit setting Function 3: 000 - 080.The minimum speed is adjustable between 0-80% and less than the maximum speed setting. The default is 0.
Speed upper limit setting Function 4: 000 - 100.The maximum speed is adjustable between 0-100% and is greater than the minimum speed setting. The default is 100%.
Acceleration and deceleration value setting Function 5: 001 002 005 010 015 020 020 025.Each press of the addition and subtraction key speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.
Motor running total time setting Function 6: 1 second minimum,99 hours 59 minutes 59 seconds maximum.The default is 99 hours 59 minutes 59 seconds.
The following function 7/8/9 is the time setting in the fully automatic mode.
Forward time setting Function 7: 1 second minimum,99 hours maximum.Default is 10 seconds.
Stop time setting Function 8: 1 second minimum,99 hours maximum. Default is 10 seconds.
Reverse time setting Function 9: 1 second minimum,99 hours maximum.Default is 10 seconds.

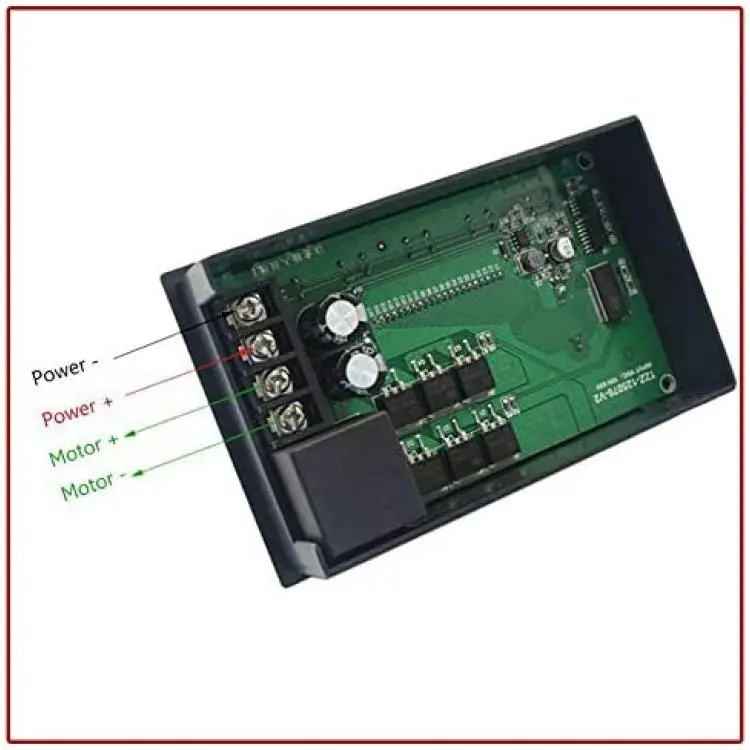

Note:Input must be divided into positive and negative input voltage should be equal to the rated voltage of the motor (within 10-55V)
If you need more detailed instructions, please contact us.
