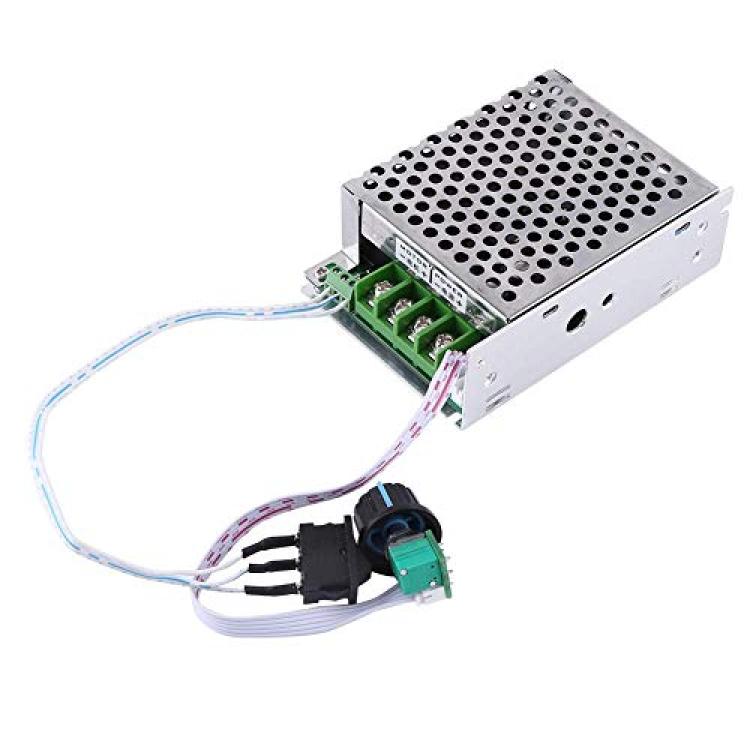

DC PWM Motor Controller Reversible 12V 24V 36V 40A High Power Motor Speed Controller Switch CCM6Ds-B
Availability: Pre-Order, Inquiry Price
About this product
*Regulating DC motor speed through pulse-width-modulation with a wide range
*High power speed controller switch which is much more adaptable
*Easy to use, the reversible speed controller switch has forward/off/ reverse 3 phases

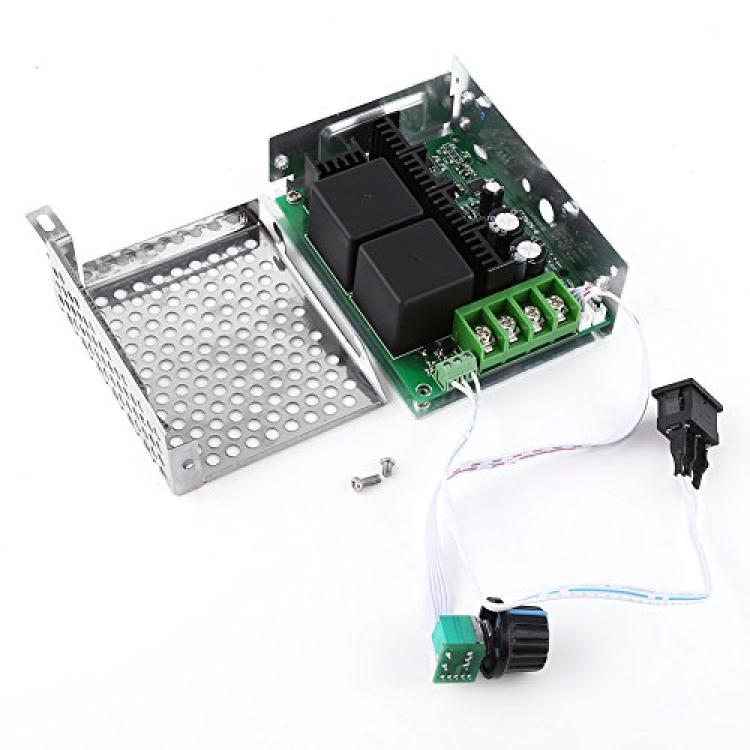

*There are two build-in 80 amp large current relay in this motor speed controller which ensures a better regulation
*Input voltage range from DC 10V to 50V, and current no more than 30 amp, instantaneous current could be 40 amp maximum
Description
This product is well-designed and high-power speed controller. fitted with two built-inÂ
80 amp current relays, it's much more brilliant in speed regulation. You can change the rotation direction through the reversing switch, which has forward/off/ reverse 3 phases. It's easy to use. It is made with high quality circuit board which ensures a longer service life.Â
Specifications:
Input Voltage: DC10V to 50V
Output Voltage: Linear with load
Max Current: 60A
Continuous Current: 40A
Speed Range: 0% to 100%
Forward & Reverse: Support

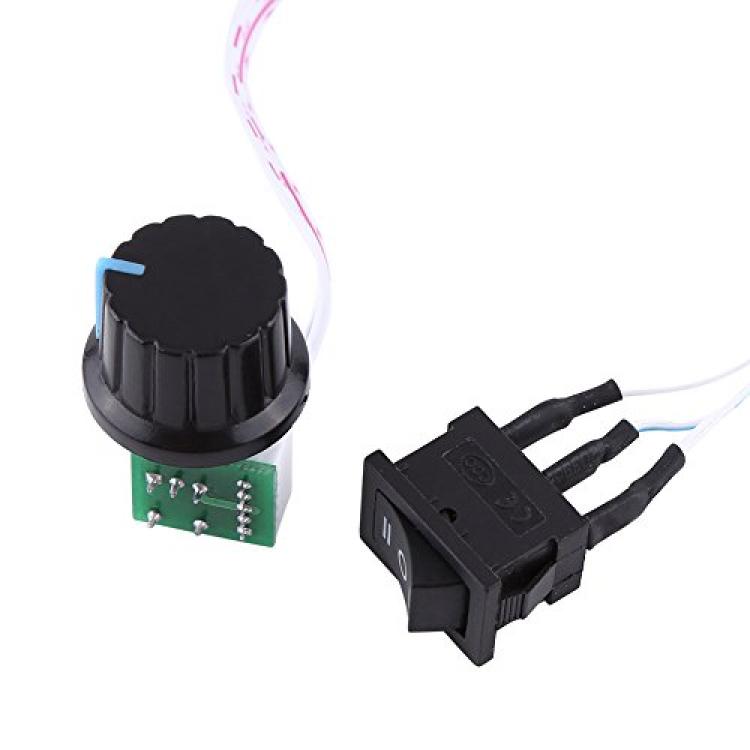

Regulation Method: Potentiometer with switch
Regulation Type: Regulating Current
Size: 110 x 90 x 78 x 36mm / 4.33 x 3.54 x 3.07 x 1.41"
Package Includes:
1 x Speed Controller
