500 Watt 24 Volt XYD-6B2 Electric Motor for Razor Crazy Cart Upgrade, eZip E-4.0 eZip E-400 IZIP I-400 Schwinn 4 Schwinn S400 Scooter GoKart eBike by Alfa Wheels

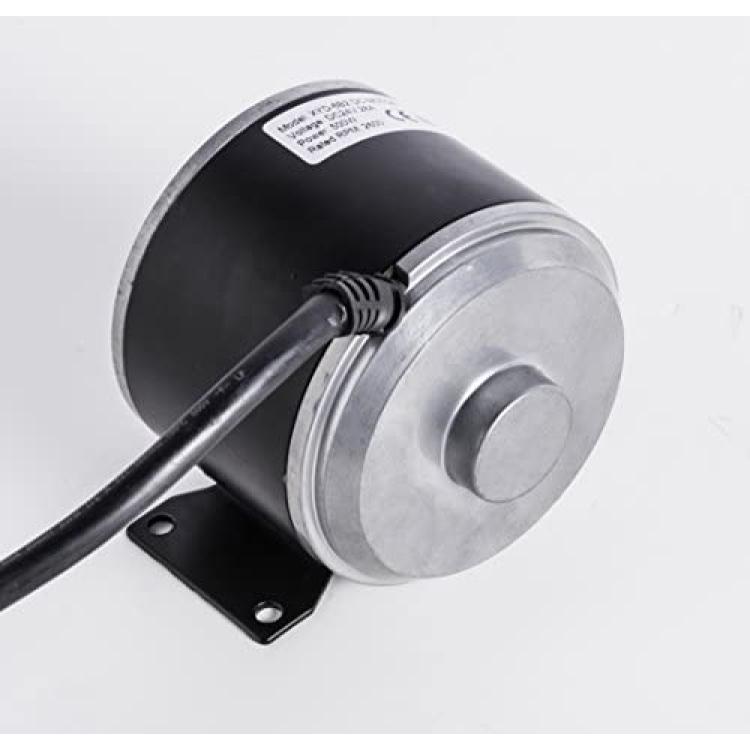

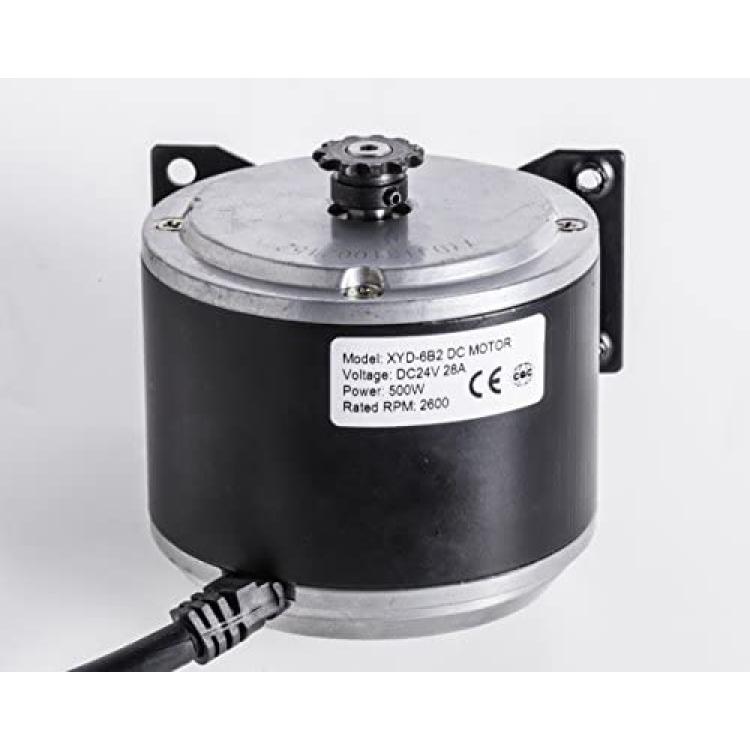

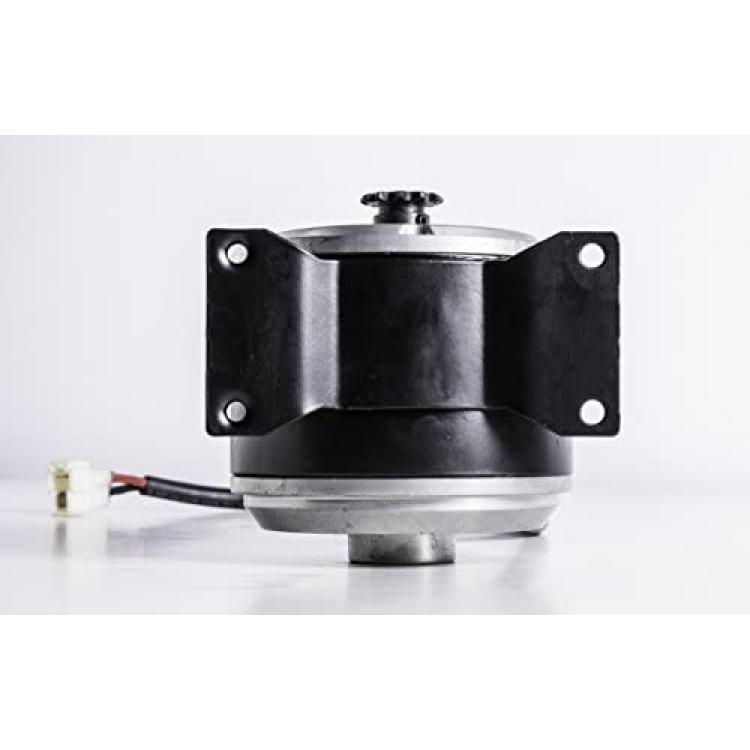

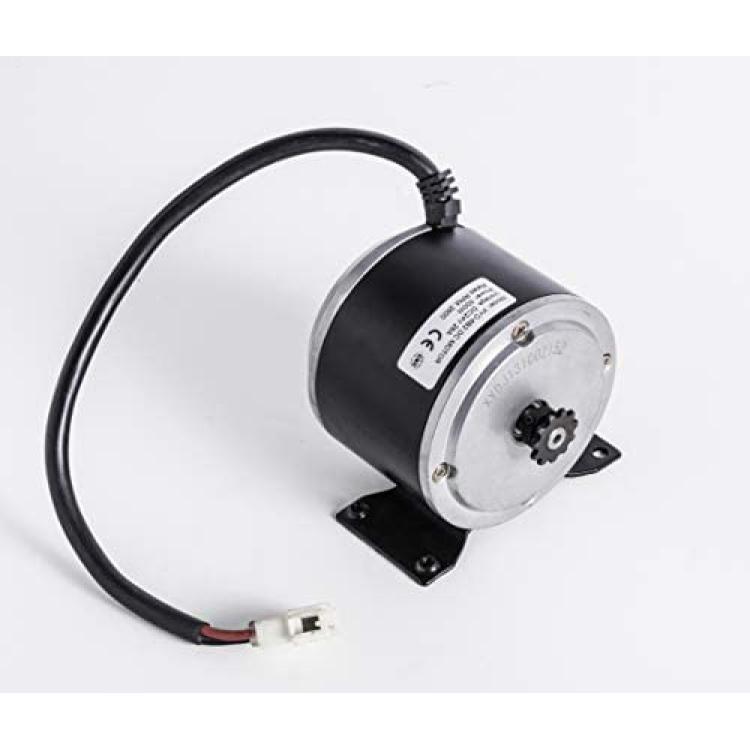

500 WATT 24 VOLT DC MOTOR XYD-6B2 Technologies With Mounting Bracket 24 volt 500 watt XYD-6B2 electric motor with an 11 tooth #25 chain bracket from Technologies. This is the motor that was used on the chain drive versions of the Schwinn 400 and IZIP 400 electric scooters. This motor uses a universal mounting bracket, and it can be used on most 24 volt electric scooters factory equipped with 200 watt to 500 watt motors. Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires. Brand new with warranty. - Motor for electric scooter can be used for mini bike quad and Go-Kart. It may also work for bicycle. Or do it yourself enthusiasts. - 24 Volt 500 watt motor from Technologies. - Standard base plate. - This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires. Technologies part number: MT-24450-001 or XYDJ131002216 Motor Specs: Model: XYD-6B2 Motor Type: Brush Voltage: 24 volt DC Rated Speed: 2600 RPM Rated Current: 22 amp Sprocket: 11 tooth #25 chain sprocket Output: 500 Watts Case Length: 3-13/16" (97 mm) Case Diameter: 3-15/16" (100 mm) Drive Shaft Length: 3/8" (10 mm) Drive Shaft Diameter: 3/8" (10 mm) Bolt Hole Distance (Adjacent): 3-3/4" (95 mm) Bolt Hole Distance (Cross Bracket): 1-5/8" (42 mm) Compatibility: eZip E-4.0 eZip E-400 IZIP I-400 Schwinn 4 Schwinn S400 Please ask us if you need to know any specific dimensions for this motor so you can be sure it will work for you. We also sell other electric scooter parts and mini Bikes Warranty: 1 year from purchase date. We will only replace motors that do not work out of the box. We test all motors before shipping. We will not replace burnt out motors.
