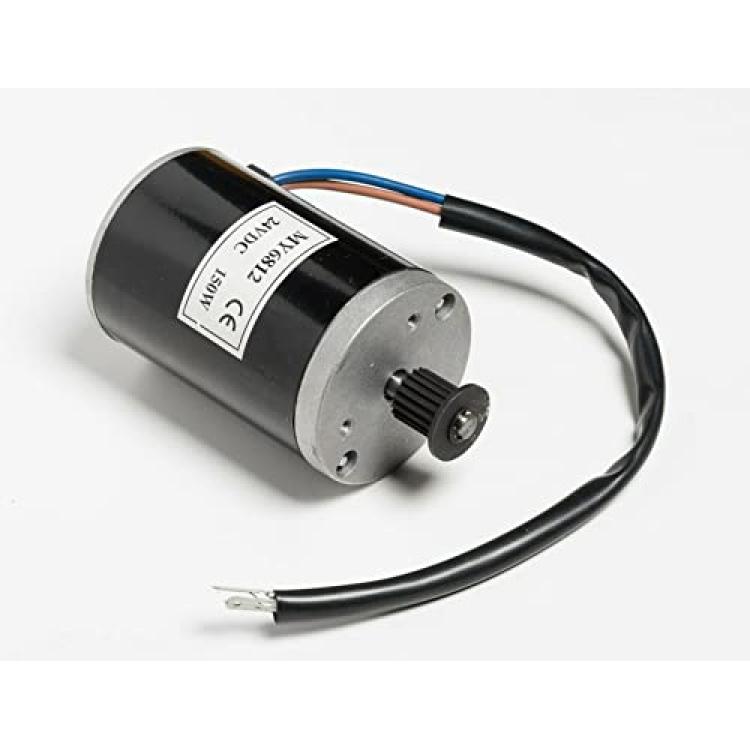

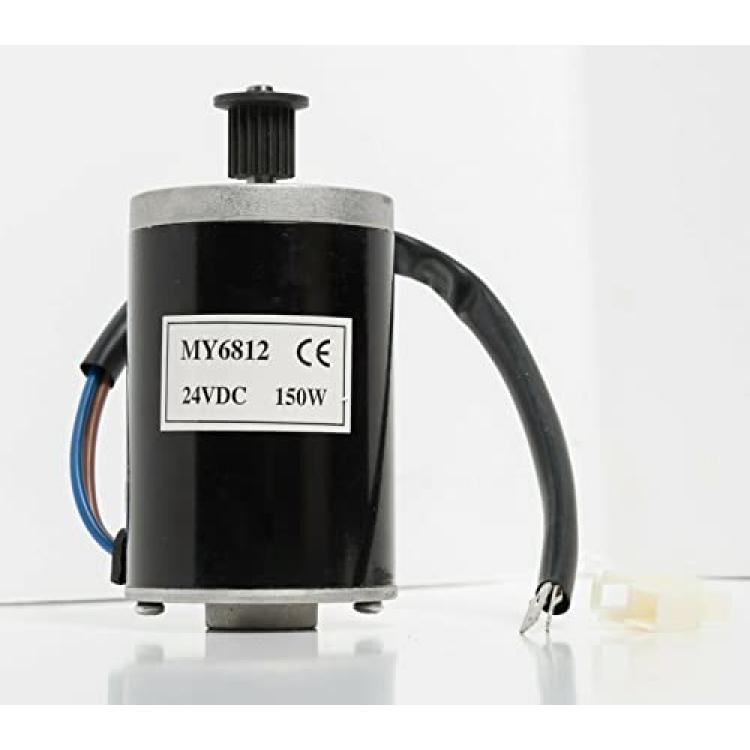

Unite MY6812 150W Watt 24V Volt DC Brush Electric Motor 3M Pulley Belt f Belt Drive Pulse Charger - Razor E100 Belt Drive Scooter DIY Kids Kart by Alfa Wheels (150W 24V)
Availability: Pre-Order, Inquiry Price
About this product

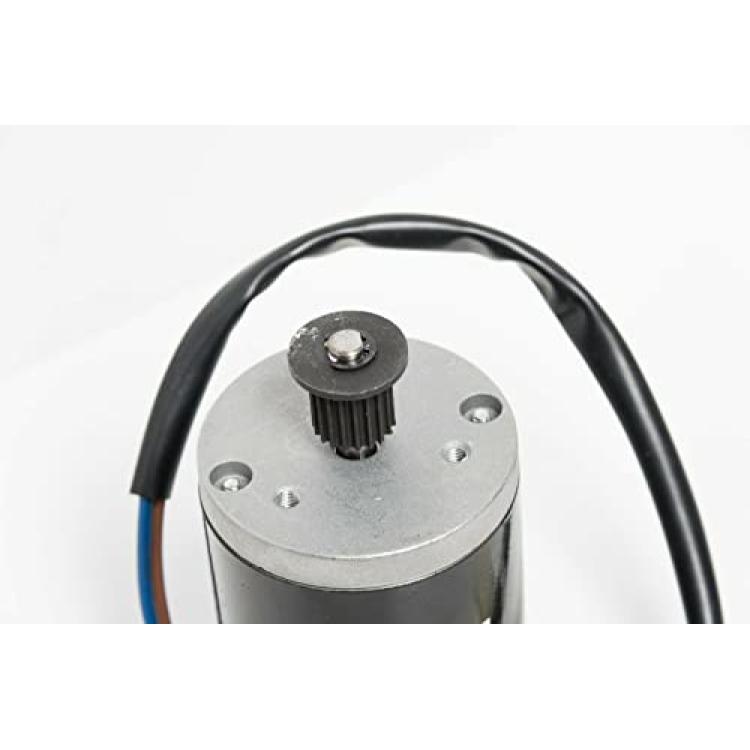

*3M Pulley Drive (for belt driven scooter)
*DC Brush Motor, replaces ZY6812 motors. Works with several Razor scooters, Kids Karts and other brands
*Reversible by switching polarity to power leads, or by using a controller with reversing capabilities
*150W, 24V, 8.9A, 2500-3000 RPM, 12 Gauge Leads, Permanent Magnet
*Brand New, 1 Year Warranty
Description
Brand new 150W 24V motor model MY6812 This is a model MY6812 motor manufactured by Unite Motor Co. Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires. COMPATIBILITY: This motor is compatible with belt drive Pulse Charger scooter models and can be used as a replacement for the discontinued 100 watt Razor E100 belt drive motor Sprocket: 3M Pulley Specifications Model: MY6812 Type: Brush Voltage: 24 volt DC Sprocket: 3M belt sprocket Output: 135 watts Case Length: 3-11/16" (94 mm) Case Diameter: 2-11/16" (68 mm) Mounting Hole Distance: 1-9/16" (40 mm) No Loading speed: 3500 rpm Loading speed: 2400 - 2700 rpm Max. Current: 8.9 amps If you plan to use this motor as a replacement in your scooter or electric vehicle, please make sure it will fit your application and the voltage is compatible. Can be used in any system 24V up to 150W. Please check connector type and motor size and specs. before buying as replacement. Please ask us if you need to know any specific dimensions for this motor so you can be sure it will work for you.
