Alfa Wheels Electric Scooter Motor Currie Technologies 24 Volt 500 Watt DC for 500 Series Schwinn & IZIP Reversible with 11 Tooth Sprocket #25 Chain Model Numbers XYD-6B SD-156 XYDJ130601664
Description
This 24 Volt 500 Watt DC Electric Scooter Motor from Currie Technologies Model XYD-6B can be used for scooters, mini bikes quad and Go-Karts, It may also work for bicycles or for do it yourself enthusiasts who would like to use it for diverse applications. This motor should work with Schwin and IZIP 500 series electric scooters or any other scooter, mini bike or go-kart using 450W or 500W motors with similar mounting brackets.

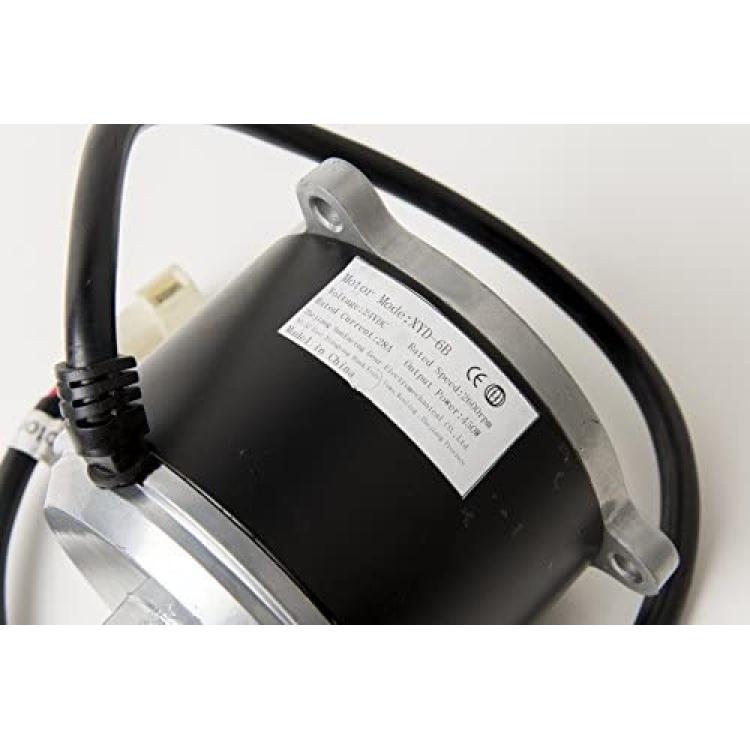

This Electric Scutter Motor Type Brush, Voltage 24 Volt DC, Output 500 Watts, Rated Speed 2600 Rpm, Rated Current 28 Amp, Sprocket #25 Chain 11 Tooth, Rotation Reversible, Removable Set-Screw Sprocket, This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
It is compatible with Currie Technologies part number SD-156, OEM motor on 500 Series Schwinn & IZIP electric scooters (chain drive) , eZip E-500, GT-500, IZIP I-500, Mongoose M500, Schwinn S500.
This motor should work with Schwin and IZIP 500 series electric scooters. Or any other scooter, mini bike or go-kart using 450W or 500W motors similar to this one. Should also work with any other brand with similar specs.... Please check connector type and motor size and specs before buying as replacement.
Contact us if you need more information about this motor and its applications.
