ESP8266 ESP-12E NodeMcu Lua WiFi Module Connector Development Board, for Arduino IDE Micropython, with Motor Drive Expansion Board

About this product

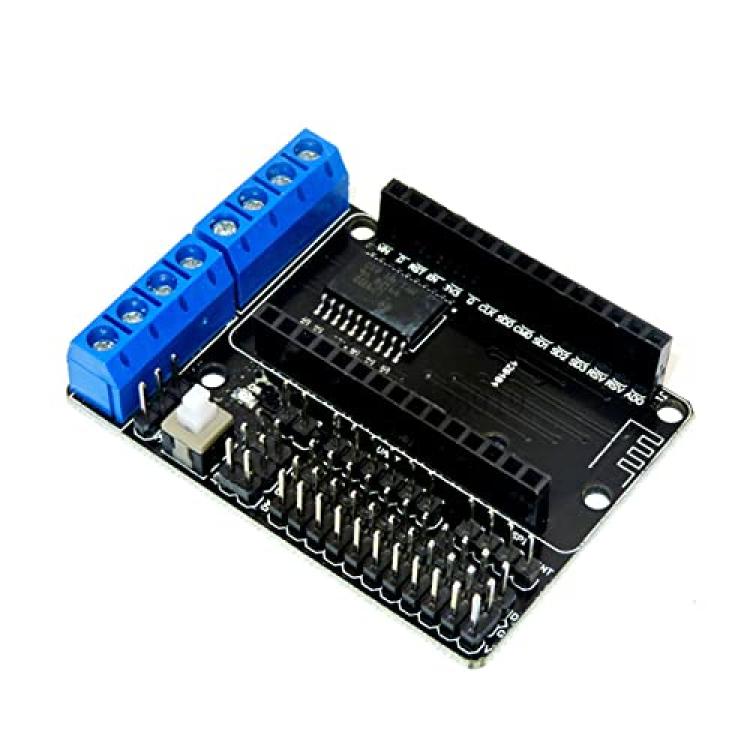

*Motor drive expansion board module developed based on ESP-12E.

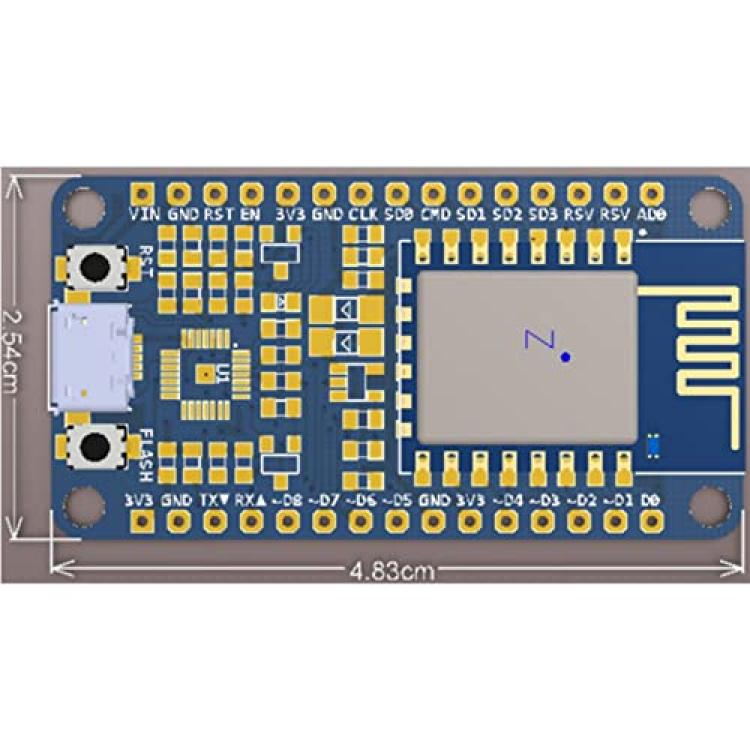

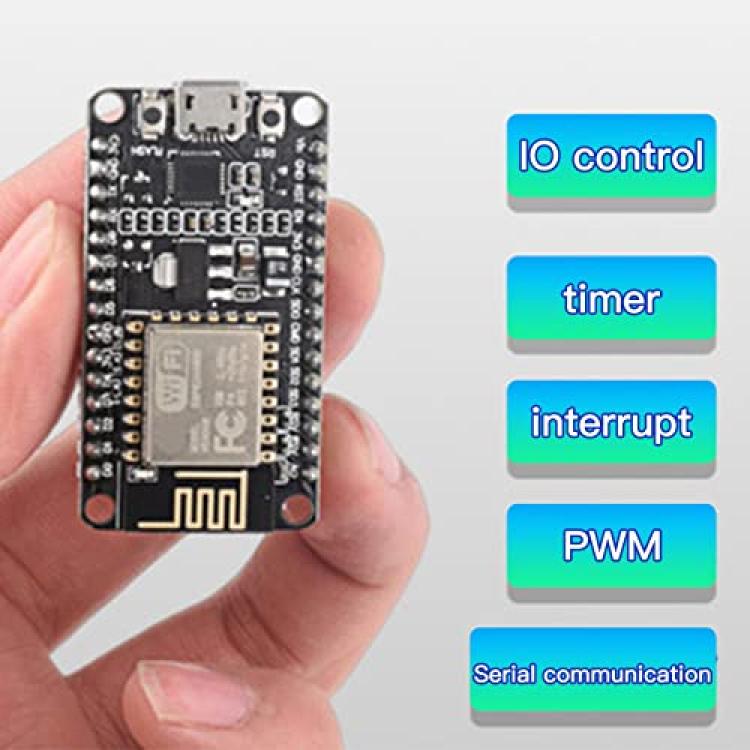

*ESP8266 CP2102 NodeMCU ESP-12E WIFI serial wireless module is an open source Lua based firmware, ultra low cost WI-FI modules, development boards for rapid prototyping, integrated with ESP8266 WIFI chips.

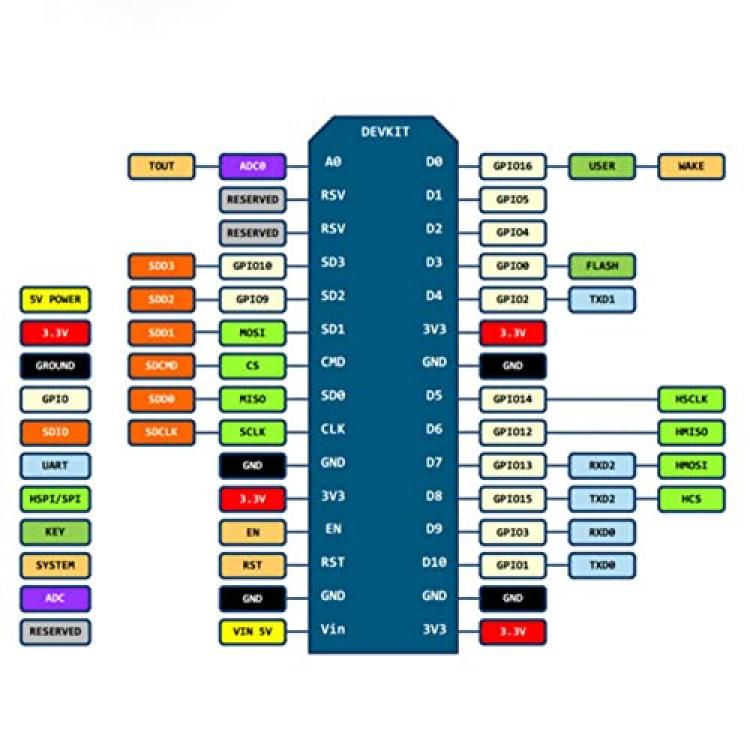

*Lead out all functional pins of ESP12 DEV KIT: SPI, UART, GPIO, AI and 3.3V power interface, Expand two-way motor drive, can directly drive two-way motor, onboard power switch, Motor power supply range: 4.5V~36V, control power supply range: 4.5V~9V.

*The motor power supply and control power supply are separated. In the experiment, the short-circuit block can be combined to short-circuit VIN and VM, and supply power to the motor and the control board at the same time.

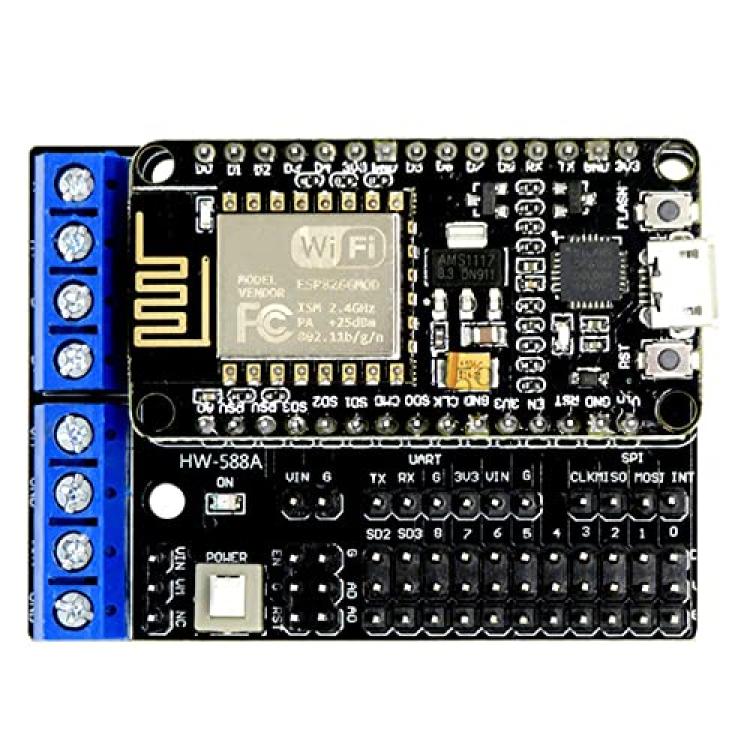

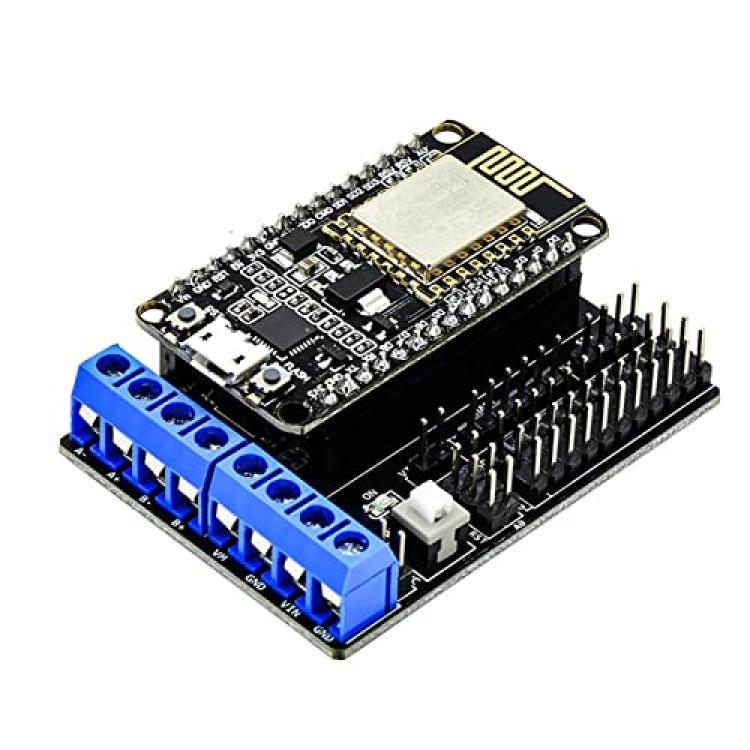

*Products include a motor drive expansion board and WSP8266 ESP-12E WiFi module.
