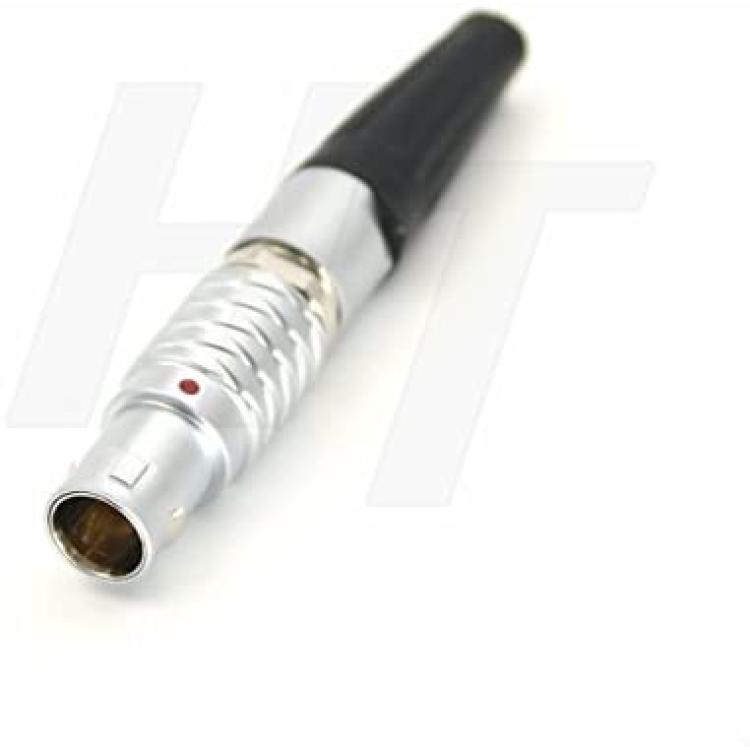

HangTon FGG 2 Pin 0B Connector Circular Multipole Push Pull Metal Cable Plug Male Contacts for ARRI/Teradek (2P, Plug)
About this product
*2-pin male connector, plug. It is widely used in ARRI RED photography camera and monitor to supply 12V power
*Circular metal aviation push-pull self-locking connector, compatible with the B series & ODU L series
*For medical equipment, test equipment, machinery, audio and video devices, broadcasting, telecommunications and military, etc.
*Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance
*Quick connect, male contacts, cable plug, FGG.0B.302.CLAD
Description
Features:
In the harsh environment can provide a safe and reliable connection.
0B (buckle coupling) metal aviation push-pull self-locking connector is ideal for Medical Electronics, Test and Laboratory Equiment, Measurement Instrumentation, Data and Telecom Systems, Audio and Video Applications, Military and Aerospace, Industrial Controls, Machinery, used to transfer data and supplying power.
Specifications:
Compatible with LEMO 0B FGG EGG connectors.
Contacts: 2 3 4 5 6 7 9
Wire diameter: 2-3pin: 20AWG; 4-5pin: 22AWG; 6-9pin: 28AWG; 12pin: 30AWG
Cable Outer Diameter Range: 3-5mm
Protection Rating: IP50
Shell Material: Brass chrome plated
Contact Material: Brass gold plated
Termination: Solder
Mating Cycle: >4000 times
Temperature Range: -45~+125?
We also supply all kinds of waterproof plastic or metal connectors( cable plug, panel mount socket, receptacle, male or female contact and straight or right angle style).
