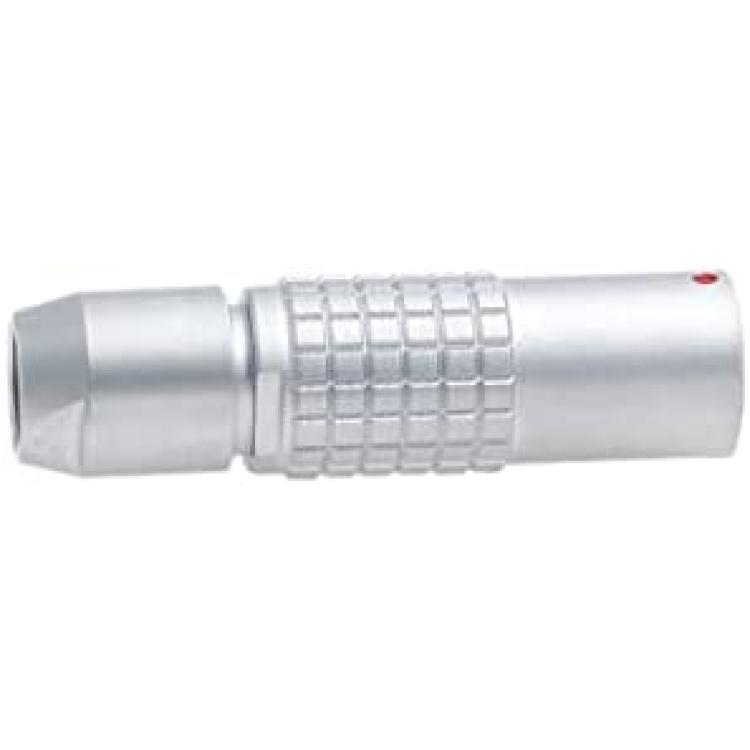

HangTon 0B PHG 2 Pin Free Socket Connector, Female Contact, Circular Push Pull Cable Receptacle
About this product
*2 pin female connector, compatible with Lemo 0B.PHG.302 free socket
*Connector contact diameter 0.9mm. Cable wire size 22AWG max. Rated current 10A
*Cable collet size default is 5mm, if you need other sizes, please message me before order(if your cable wire diameter is too small, the collet cant grasp the cable tightly)
*Circular aviation push-pull self-locking connector. Quick connect, female contacts, cable solder connector
*Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance
Description
Compatible with LEMO 0B FGG EGG FSG FHG PHG connectors.
Contacts: 2 3 4 5 6 7 9
Wire diameter: 2-3pin: 20AWG; 4-5pin: 22AWG; 6-9pin: 28AWG; 12pin: 30AWG
Cable Outer Diameter Range: 3mm-5mm
Protection Rating: IP50
Shell Material: Brass chrome plated
Contact Material: Brass gold plated
Termination: Solder
Mating Cycle: >4000 times
Temperature Range: -45~+125?
We also supply all kinds of circular connectors( plug, panel mount socket, free socket, male or female contact, straight or right angle style, black / blue / golden / white anodized).
