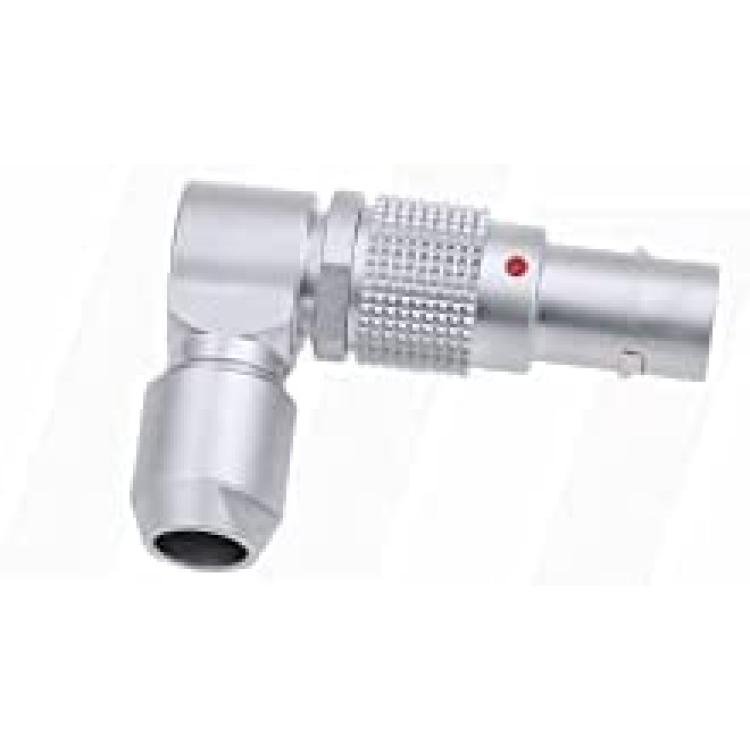

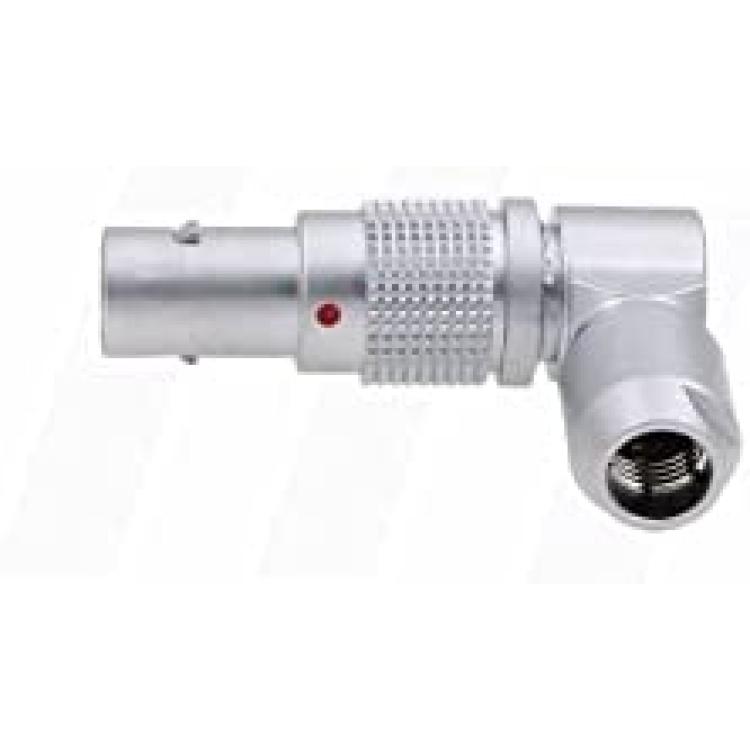

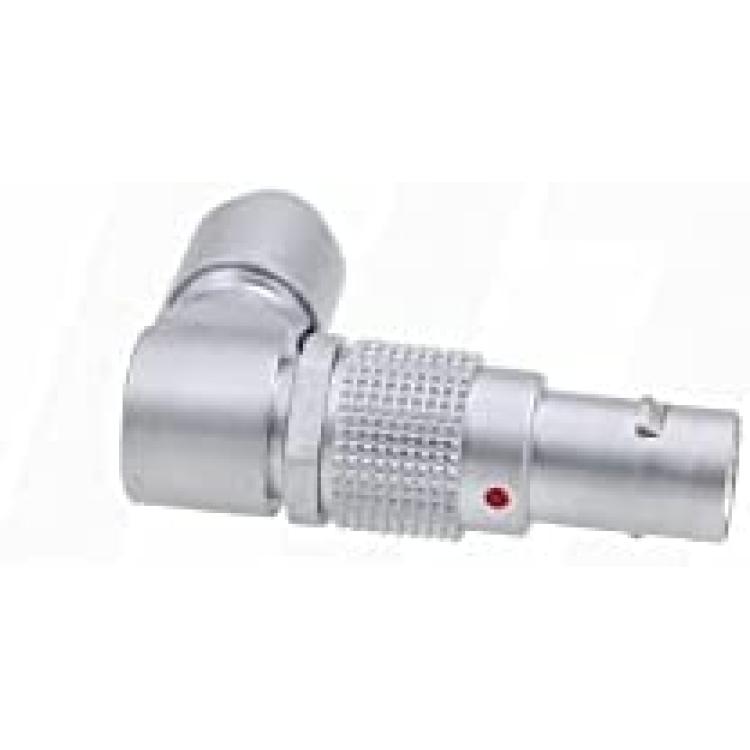

HangTon Connect FSG.0B 2 Pin Right Angle Power Connector,Rotated Adjustable Circular Male Cable Plug for ARRI Alexa/ZCAM E2-S6 F6 Camera
About this product
*Compatible for Lemo FSG.0B.302. 0B 2-pin right angle elbow 90-degree male plug connector, widely used for 12/24V power port on ARRI Alexa camera, Z CAM E2-F6 S6 M4 camera, TB50 battery adapter, Teradek Bolt Bond Cube wireless, SmallHD monitor

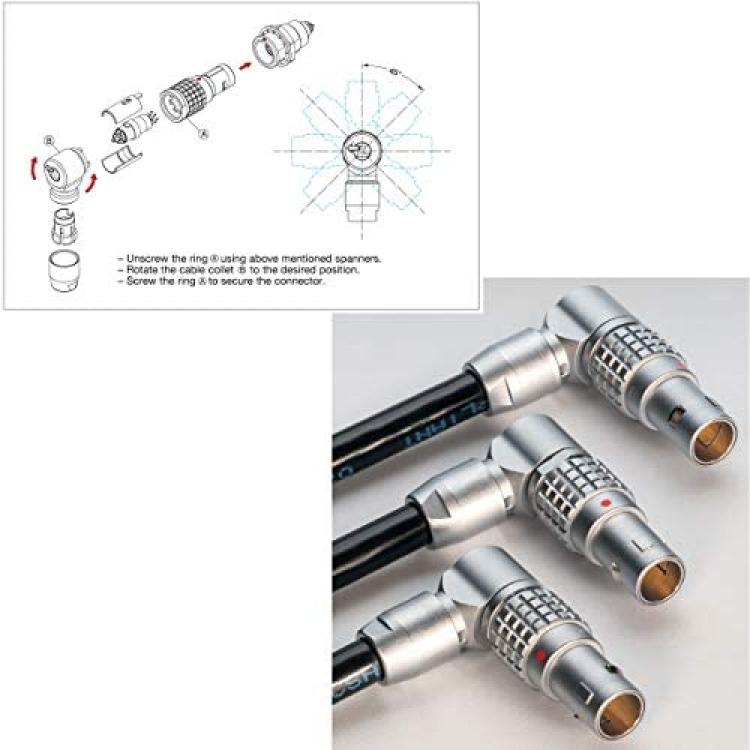

*You can unscrew the ring using spanner to rotate the cable collet/ cable outlet to your desired position, in order to prevent cable snaging. It can be orientated during its assembly and enables 8 positions
*Rated current: 10 Amps. AWG wire size: 28 - 20, cable diameter: 3mm-5.2mm
*Contact diameter: 0.9 mm (0.035in), max. stranded conductor section: 0.56 mm^2 (AWG 20)
*Circular, push-pull self-latching, cable mounting, solder termination, IP50 rating
Description
Features:
In the harsh environment can provide a safe and reliable connection.
0B (buckle coupling) metal aviation push-pull self-locking connector is ideal for Medical Electronics, Test and Laboratory Equiment, Measurement Instrumentation, Data and Telecom Systems, Audio and Video Applications, Military and Aerospace, Industrial Controls, Machinery, used to transfer data and supplying power.
Specifications:
Compatible with LEMO 0B FGG EGG connectors.

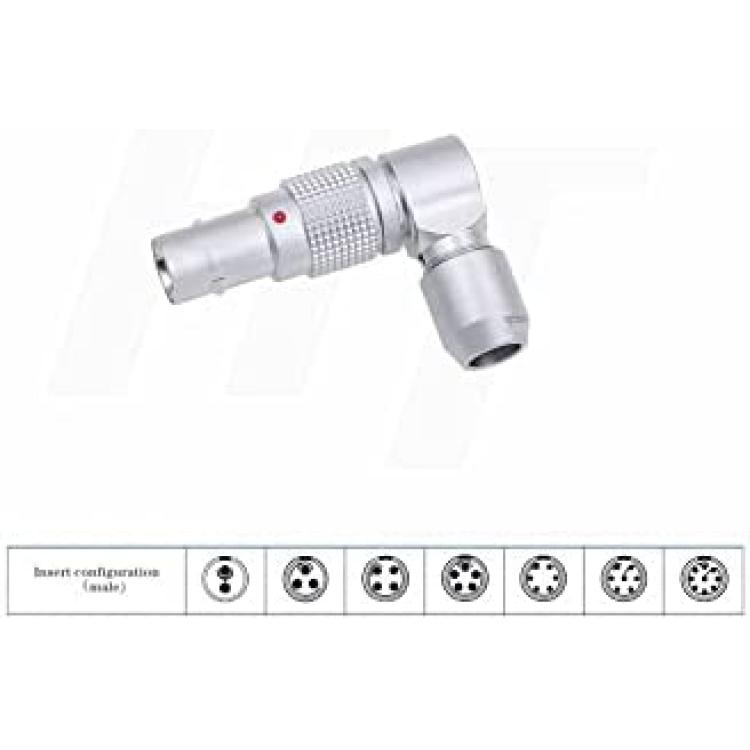

Contacts: 2 3 4 5 6 7 9
Wire diameter: 2-3pin: 20AWG; 4-5pin: 22AWG; 6-9pin: 28AWG; 12pin: 30AWG
Cable Outer Diameter Range: 3-5mm
Protection Rating: IP50
Shell Material: Brass chrome plated
Contact Material: Brass gold plated
Termination: Solder
Mating Cycle: >4000 times
Temperature Range: -45~+125?
We also supply all kinds of waterproof plastic or metal connectors( cable plug, panel mount socket, receptacle, male or female contact and straight or right angle style).
