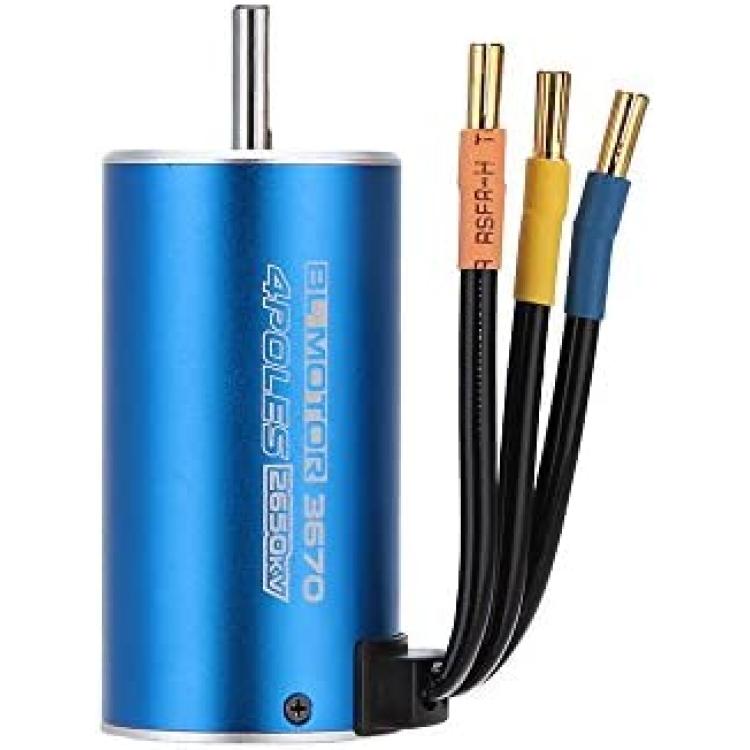

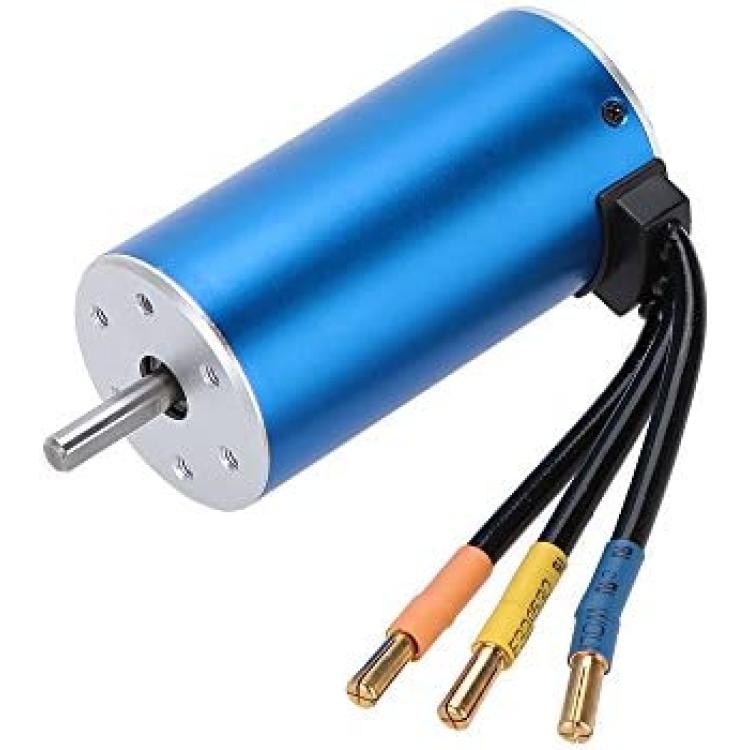

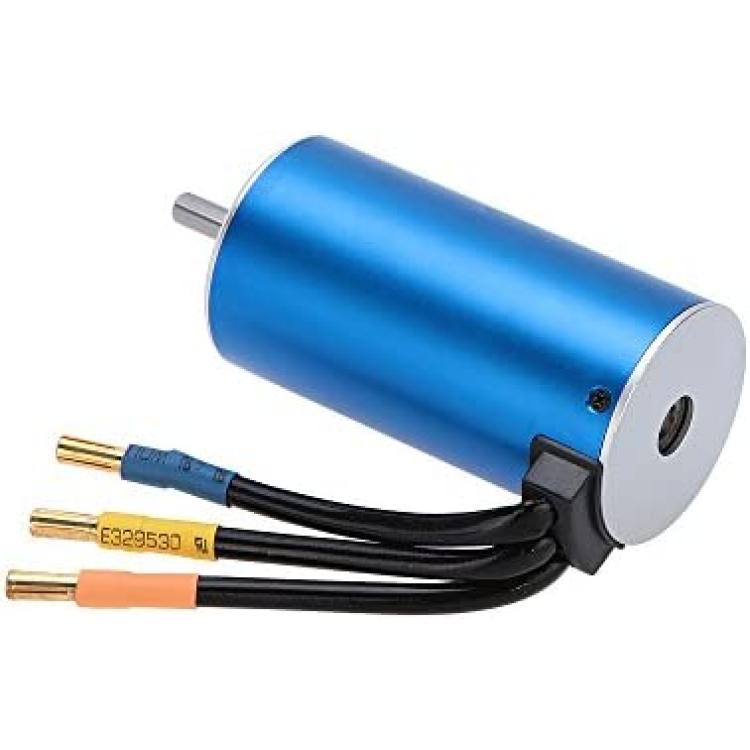

Jimi 3670 2650KV 4Poles Sensorless Brushless Motor for 1/10 RC Car
Description
Use : Vehicles & Remote Control Toys
Technical parameters : Value 2
For Vehicle Type : Cars
Tool Supplies : Assembled class
Material : Composite Material
Remote Control Peripherals/Devices : Motor
RC Parts & Accs : Motors
Model Number : 2650KV
Four-wheel Drive Attributes : Motors
Upgrade Parts/Accessories : Motor
3670 2650KV 4Poles Sensorless Brushless Motor for 1/10 RC Car
3670 2650KV 4P sensorless brushless motor is perfect for 1/10 RC car. It is built from high quality aluminum alloy which is produced from the latest CNC milling machines. This motor is designed with high power and rotation speed to provide longer run time with its high efficiency.
Features:
4 poles 12 slot hi-torque design
CNC machined 6061 T6 billet aluminum heatsink can
High purity copper windings maximizes efficiency
High RPM ABEC5 oversized bearings
Stator - super thin (0.2mm) laminations
Removable/Replaceable rotor
Precision engineered for maximum energy conversion
Short stator, less wire, lower resistance, more power
Specifications:
Max RPM: 50000
KV(RPM/Volt): 2650KV
Max Current: 86A
Watts: 1700W
Sensored: No
Diameter: 36mm
Length: 70mm
Shaft diameter: 5mm
Shaft length: 17mm
Max voltage: <18.5v
Rotor poles: 4
Resistance: 0.0069
Plug type: Banana plug
Package Information:
Package size: 9.5 * 8 * 6.5cm / 3.7 * 3.1 * 2.6in
Package weight: 307g / 10.8oz
White box package
Package List:
1 * 3670 2650KV Sensorless Brushless Motor
