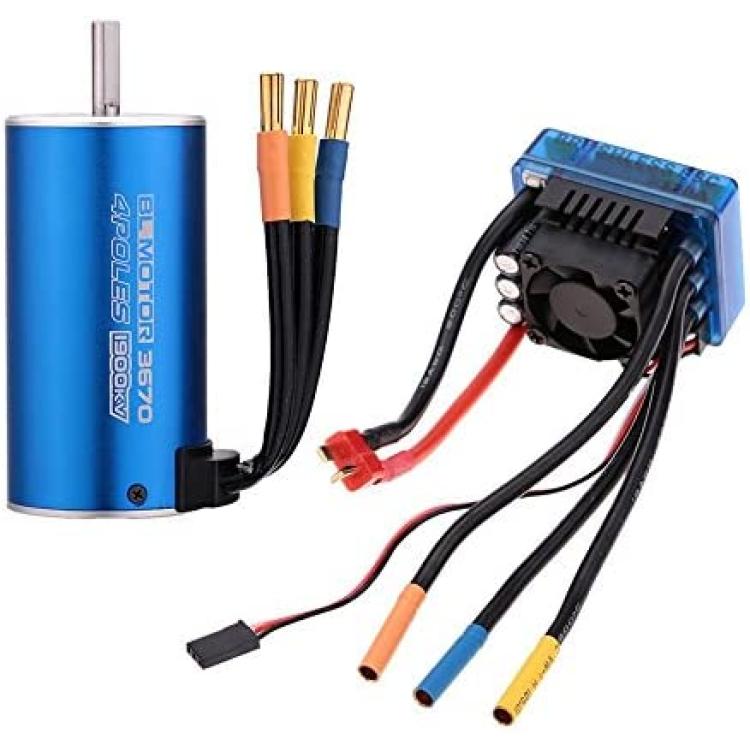

Vehicles-OCS EBOYU(TM) 3670 1900KV 4P Sensorless Brushless Motor with 120A Brushless ESC for 1:8 1:10 RC Auto Car Truck
Description
EBOYU(TM) 3670 1900KV 4P Sensorless Brushless Motor with 120A Brushless ESC for 1:8 1:10 RC Auto Car Truck
Features:
4 poles 12 slot Hi-torque motor design.
CNC machined 6061 T6 billet alumium heatsink can.
High purity copper windings maximizes efficiency.
High RPM ABEC5 oversized bearings.
Universal fits 1/8 1/10 brushless cars-multi-mounting system for M3 screws.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
Stator - Super Thin (0.35mm) laminations.
Removable/replaceable.
Precision engineered for maximum energy conversion.

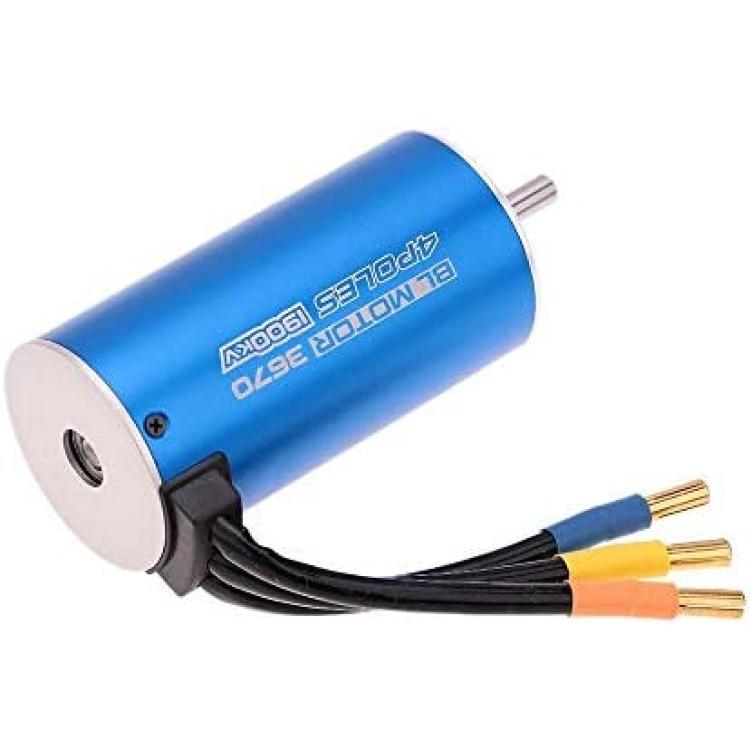

Specifications:
RPM: 1900KV
Max Current: 60A
Max Watts: 1600W
Can Size: 3670
Sensored: No
Can Diameter: 36mm
Can Length: 70mm
Shaft Diameter: 5mm
Shaft Length: 17mm

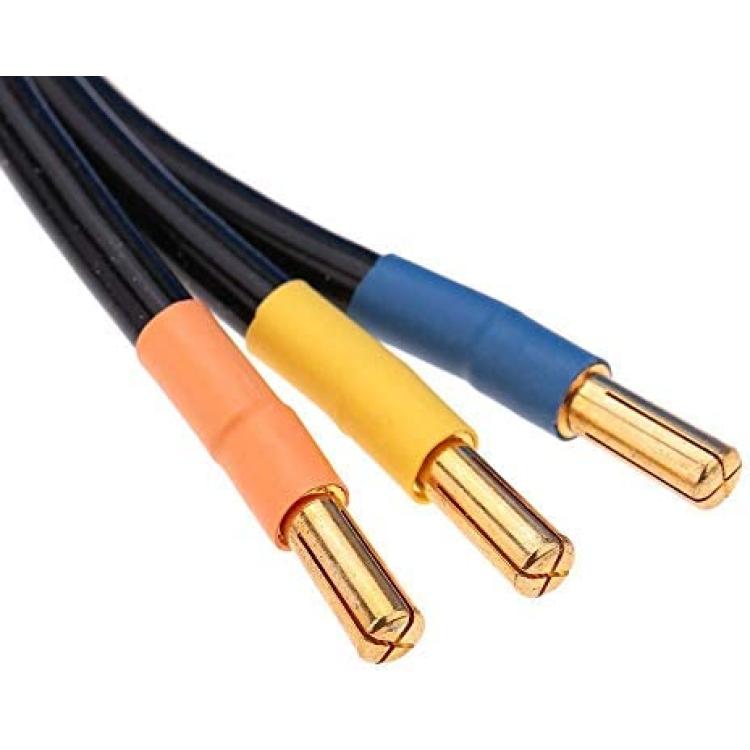

Bullet Connector: 4mm
Weight: 273.8g/9.6oz
Max voltage: 7.4V(2S)-22.2V(6S)
Note: there's some little error from human measuring.

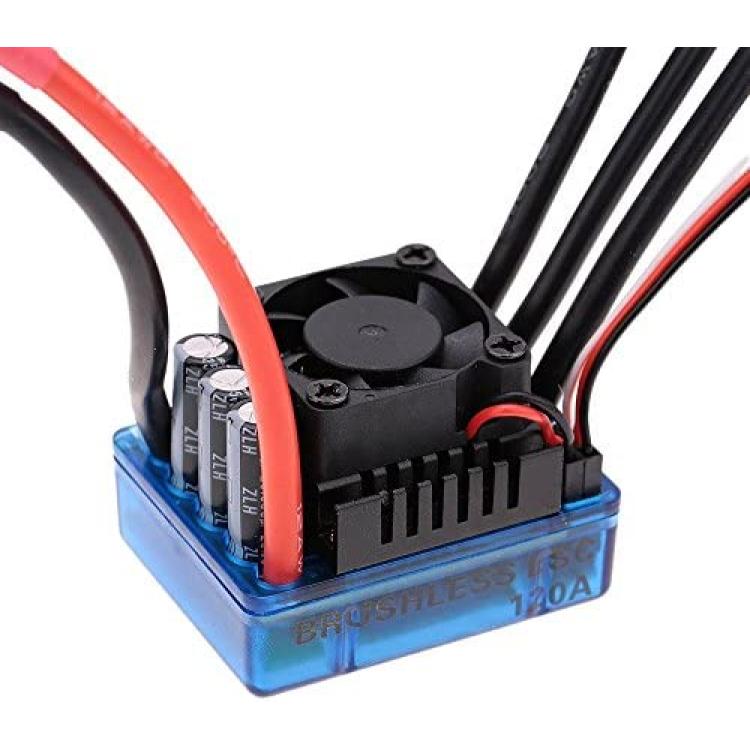

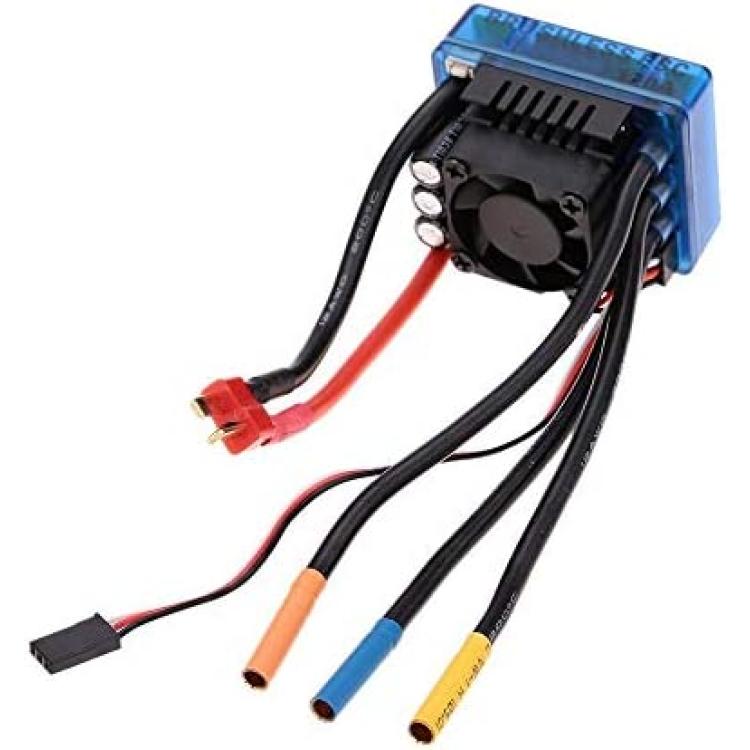

Electric Speed Controller
Features:
Compatible with sensorless brushless motors.
High anti-interference capability.
Using advanced software interface to set up or update the software.
Super smooth and accurate throttle linearity.
Fast response to throttle input.
Mutiple protection Features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.
Specifications:
Cont. Current: 120A
Burst Current: 600A/10sec
Battery: 2-4Cell Lipo / 4-8 Cell NiMh
SBEC: Yes
SBEC Output: 6.1V/3A
Power Supply Plugs: T Male
Motor Plugs: Female 4mm Bullet Connector
Size: 55*43*40mm(with out fan)
Weight: 116.7g /4.1oz
Package size: 11 * 9 * 6.5cm/ 4.3 * 3.5 * 2.5in
Package weight: 427g/15oz
Package list:
1 * 3670 1900KV 4P Sensorless Brushless Motor
1 * 120A Brushless Electric Speed Controller
