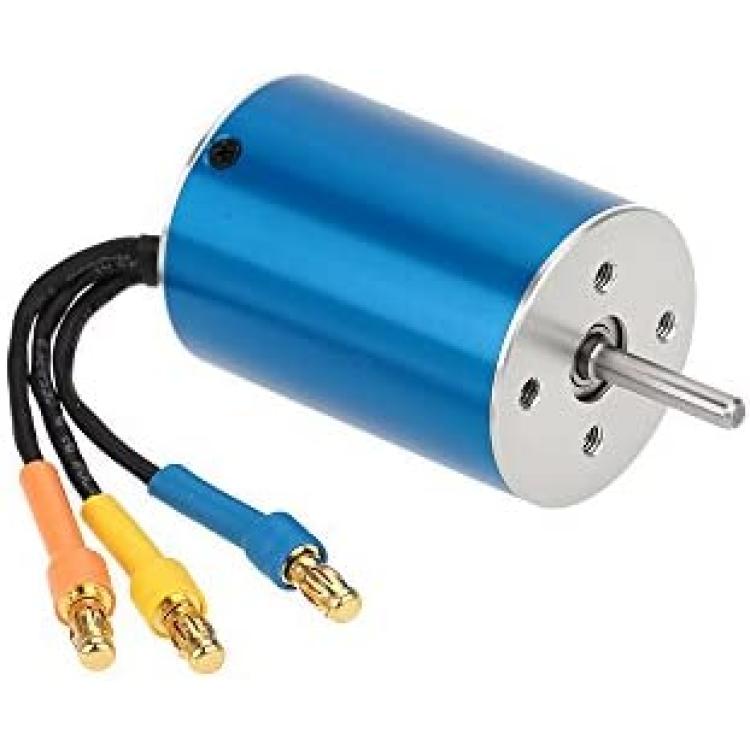

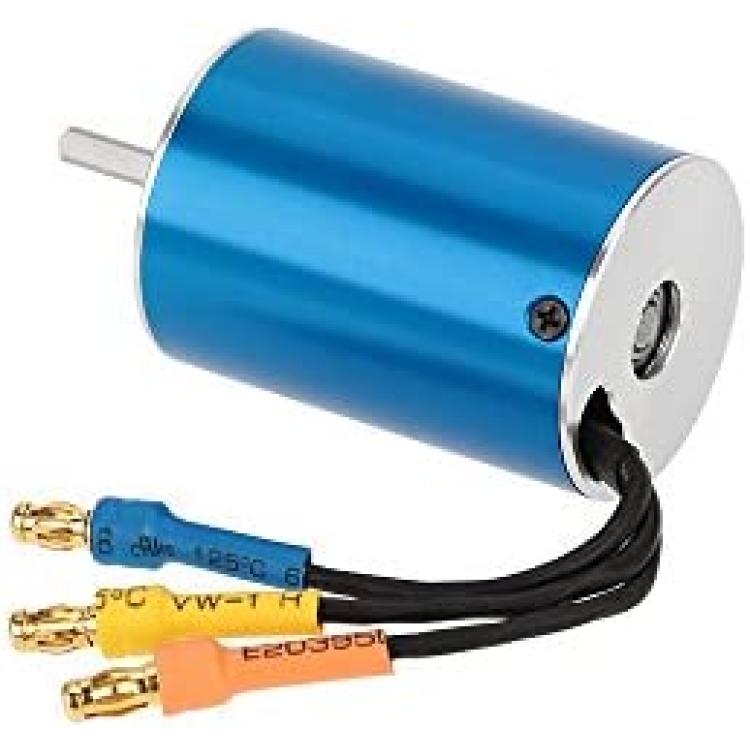

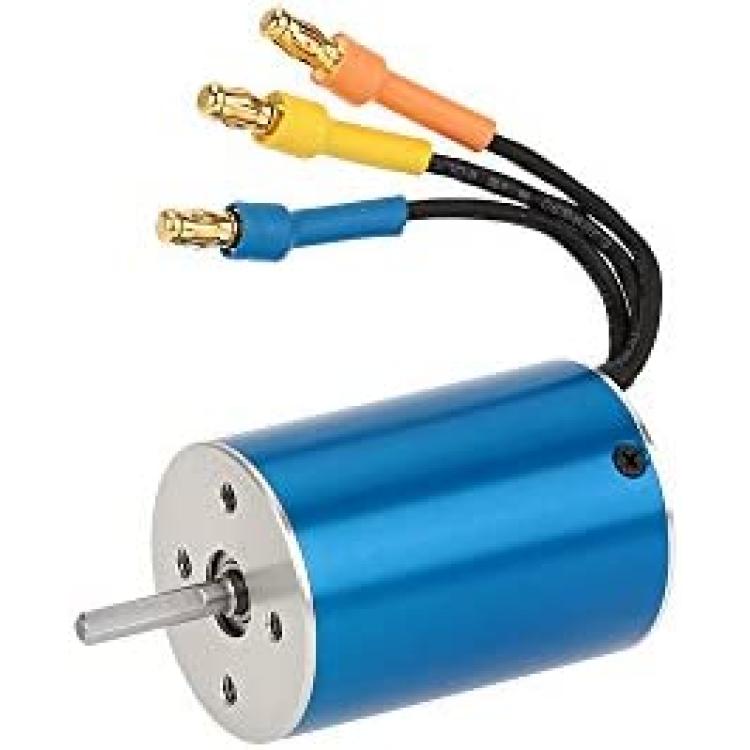

JIMI 2838 3600KV 4 Poles Sensorless Brushless Motor for 1/16 1/18 RC Car

Use : Vehicles & Remote Control Toys
Brand Name : GOOLSKY
RC Parts & Accs : Motors
Model Number : 2838 3600KV
Material : Composite Material
Technical parameters : Value 2
For Vehicle Type : Cars
Four-wheel Drive Attributes : Motors
Tool Supplies : Assembly Category
Remote Control Peripherals/Devices : Motor
Upgrade Parts/Accessories : Motor
2838 3600KV 4 Poles Sensorless Brushless Motor for 1/16 1/18 RC Car

2838 3600KV sensorless brushless motor is designed to provide both quality and performance at an affordable price. It is built from high quality aluminum alloy which is produced from the latest CNC milling machines, and is designed with high power and rotation speed to provide longer run time.

Features:
Hi-torque and hi-efficiency
Removable/Replaceable rotor
High RPM ABEC5 oversized bearings
High purity copper windings maximizes efficiency
CNC machined 6061 T6 billet aluminum heatsink can
Precision engineered for maximum energy conversion
Precision balanced rotor,smoothness for best reliability and maximum RPM
Universal fit,fits all 1/16,1/18 brushless cars-multi-mounting system for M2.5 screws

Specifications:
KV(RPM/Volt): 3600KV
RPM: 50000
Max Current: 43A
Max Voltage: <14V
Ressistance: 0.0285
Diameter: 28mm
Length: 38mm
Shaft Length: 15mm
Shaft Diameter: 3.17mm
Connector: 3.5mm golden banana connector

Package Information:
Package size: 9.5 * 8 * 6cm / 3.7 * 3.1 * 2.4in
Package weight: 118g / 4.2oz
White box package

Package List:
1 * 2838 3600KV Sensorless Brushless Motor
