T-Motor F7 Flight Controller, Faster Calculation Speed, Flight Controller Simplified F7 FC, All UART Support Telemetry and SBUS

NOTES

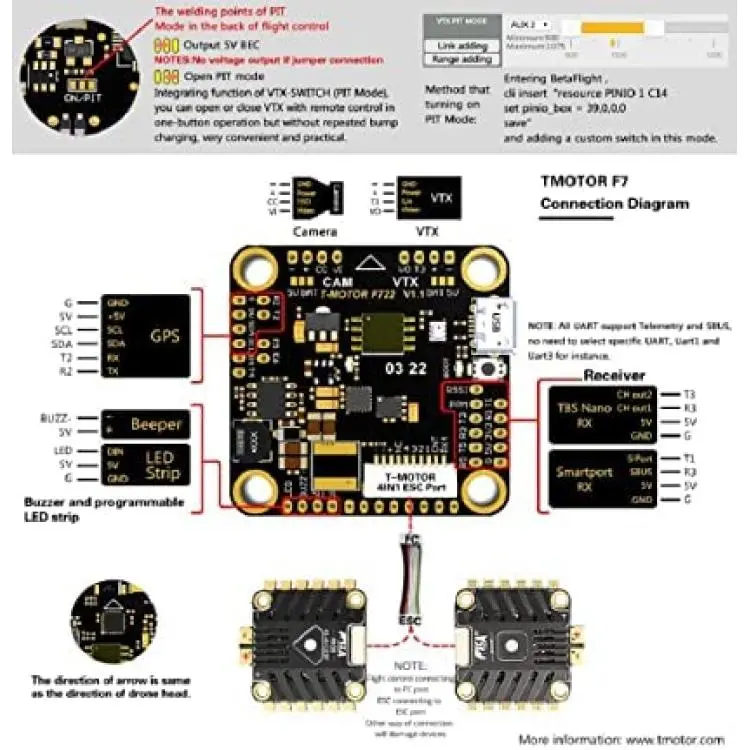

1.All UART support Telemetry and SBUS, no need to select specific UAR

Telemetry connects to TX of UART

SBUS connects to RX of UAR

2.ADC-CURRENT need connecting esc' S current interface to read current value. Uart 4 - Rx need connecting esc" S

Telemetry to read telemetry data.

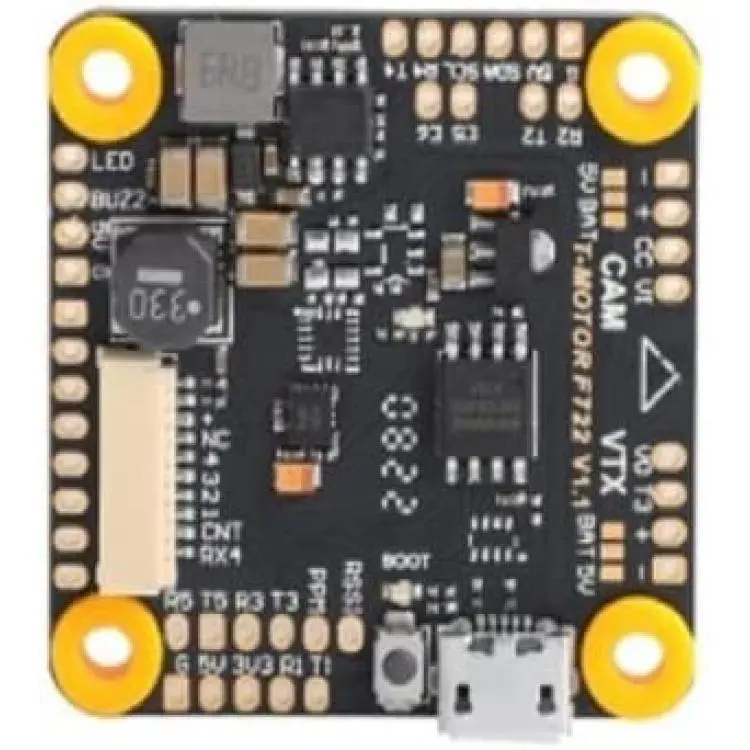

Main Control Chip: STM32F722RET6Gyroscope: BMI270

Barometer: Optional(Pls contact supplier if have related need)

RAM: on board 16M

nput voltage;12V-25.2V (3-6S)BEC: 5M/2A

Dimension:37MM*37MM

Mounting distance30.5mm*30.5mmWeight.7.4g

Eirmware MOTORF/(BetaFlight)

All UART support Telemetry and SBUS, no need to select specific UAR Telemetry connects to TX of UART SBUS connects to RX of UAR

ADC-CURRENT need connecting esc' S current interface to read current value. Uart 4 - Rx need connecting esc" S Telemetry to read telemetry data.

With F55A PRO II And F45A V2.0 The well-designed t-motor F7 flight control, combined with the F55A PRO II, will bring a brand new experience, which can be connected by a 10pin silicone cord, greatly reducing installation time and improving ease of use. (in addition, we also provide soft cable and glue shell for connecting other brands 4-in-1 ESC and flight control) Theele 7e0 r F55A PRO II

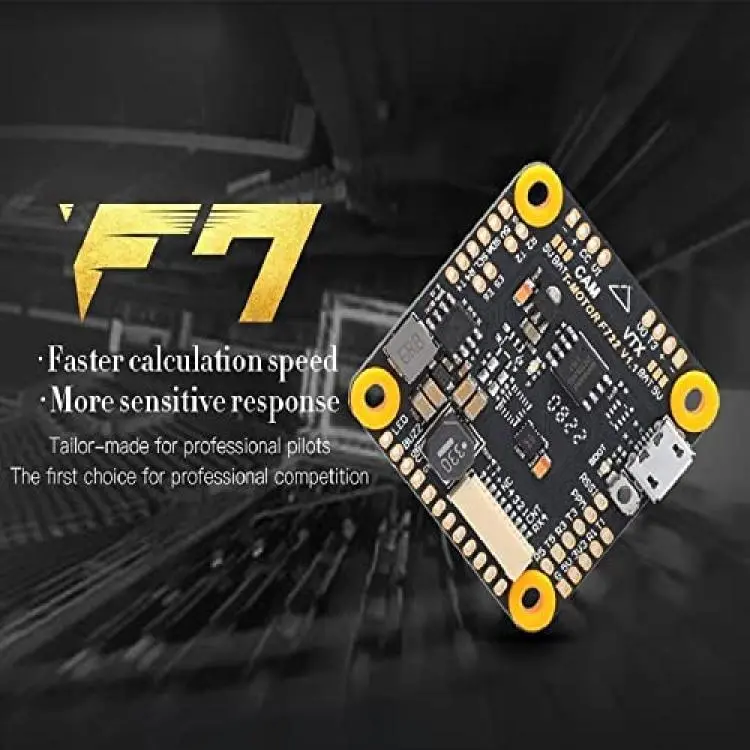

The first choiceforprofessionalcompetition

Tailor-madeforprofessionalpilots
