T-Motor F7 Pro Full Function 30x30 Flight Controller with WiFi & Bluetooth
About this product
*BUILT-IN WIFI&BLUETOOTH With a smartphone users can quickly access to their firmware configuration whenever and wherever possible,fine-tune PID parameters adjust motor direction, check Blackbox data and other parameters.

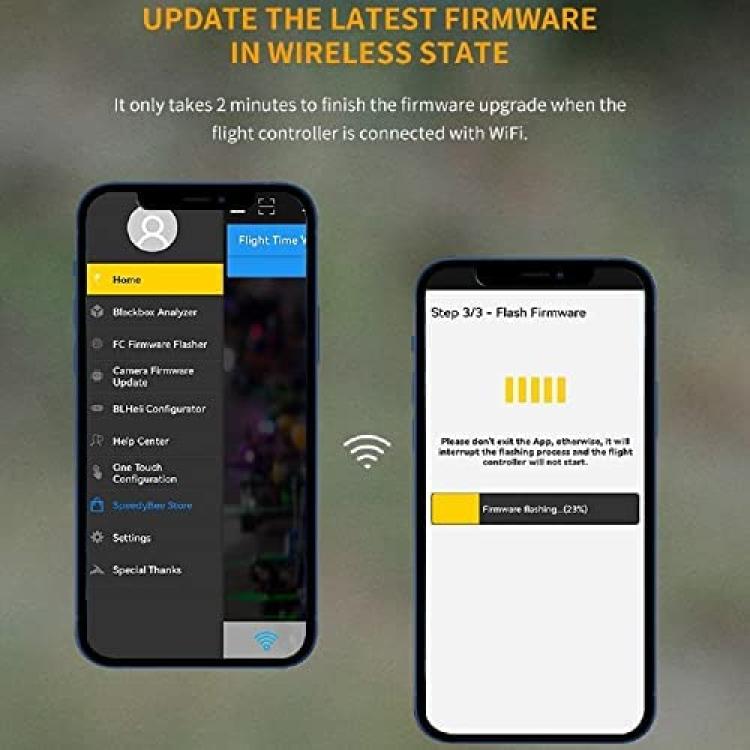

*UPDATE THE LATEST FIRMWARE IN WIRELESS STATE It only takes 2 minutes to finish the firmware upgrade when the flight controller is connected with WiFi.

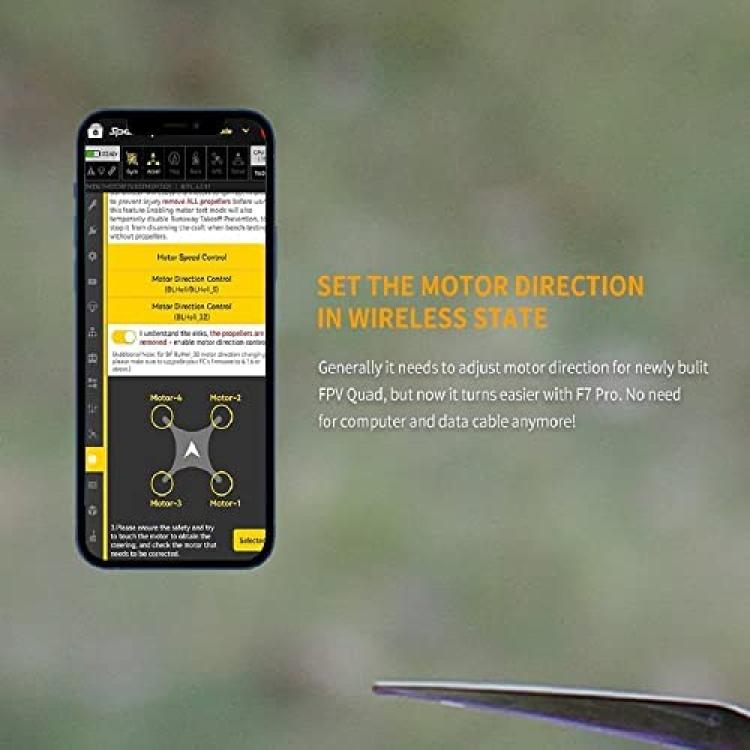

*SET THE MOTOR DIRECTION IN WIRELESS STATE Generally it needs to adjust motor direction for newly bulit FPV Quad, but now it turns easier with F7 Pro.No need for computer and data cable anymore!
*CHECK BLACKBOX DATAS IN WIRELESS STATE Do you still use laptop to look over the Blackbox datas? No you can access the datas within dozens of seconds by smart phone with latest SpeedyBee
*SUPPORT ONLINE BLACKBOX DATA ANALYSIS OF DRONESITTER Use the activation code in the product to unlock online noise analysis and online step response analysis
Description

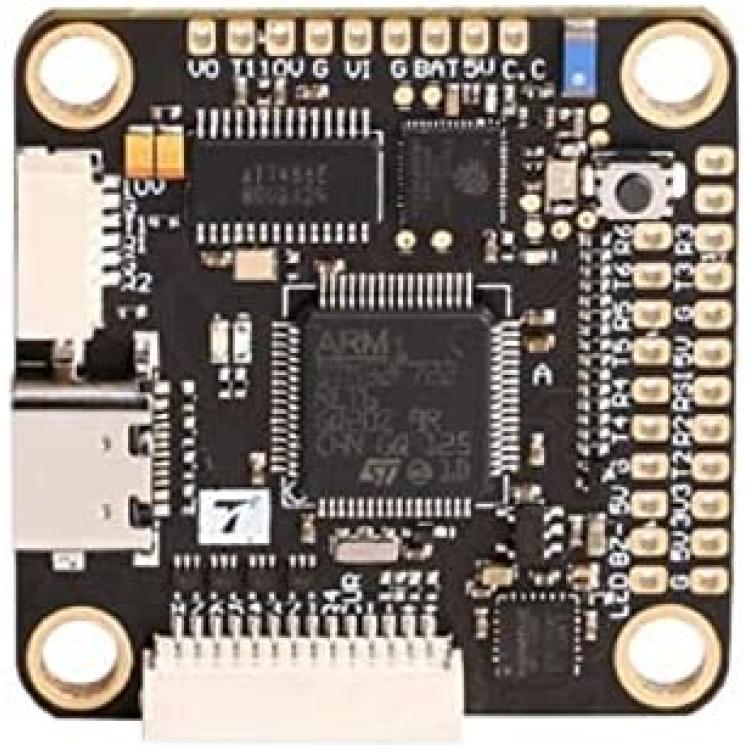

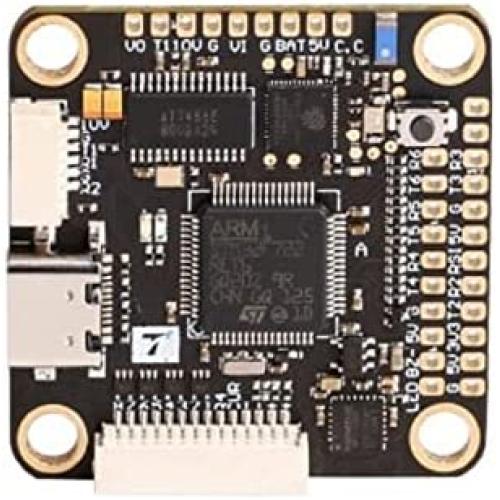

T-MOTOR F7 Pro
Specification
MCU:STM32F722 RET6
IMU:MPU6000
Barometer:BMP280
Input Voltage:3-8S Lipo
BEC Output:10V/2A 5V/3A
Built-in OSD(AT7456)
Built-in 16Mb Flash for data logging ESC signal: M1 - M8
Size:37mmX37mmX7.5mm
Installing Hole:30.5X30.5mm/M3
USB:Type-C
Weight:8.1g
Built-in SpeedyBee Wi-Fi&Bluetooth
BetaFlight tuning wirelessly
Flash firmware wirelessly
Analyze Black-box data wirelessly
Set motor directions on BLHell32/S wirelessly
Target
TMOTOR F7 V2
(BetaFlight/INAV)
UARTS:6 sets
UART1:VTX/TX
UART2:Receiver(CRSF/SBUS/iBUS/DSMX/R9MM)UART3:GPS
UART4:ESC telemetry/RX
UART5:Vacancy
UART6:Vacancy
