Omabeta Motor Control Switch, 10UF 100V Capacitor Electronic Speed Controller Easy Installation with Heat Sink for RC Vehicle

Feature:

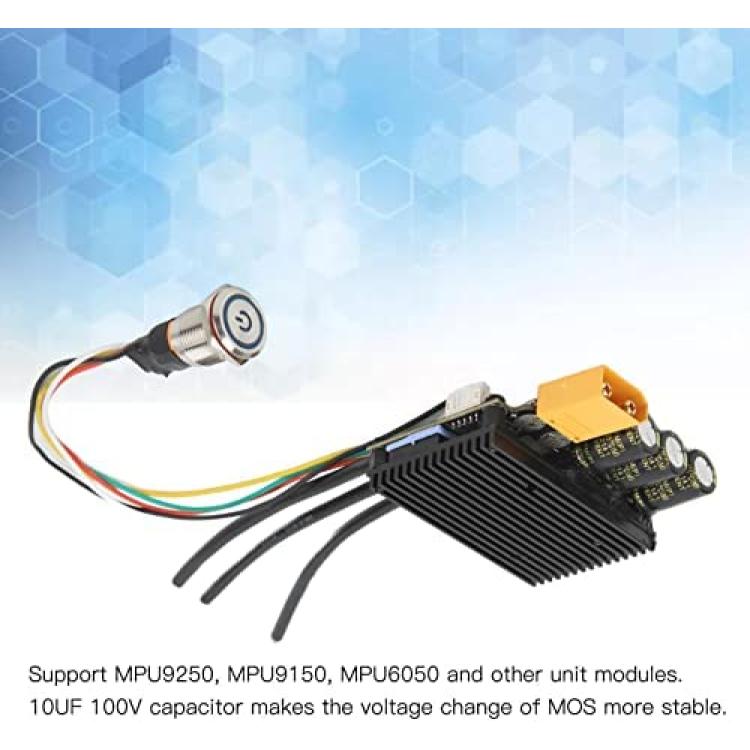

1. Better Design: High voltage capacitors 10UF100V makes the voltage change of the MOS more stable and the efficiency better, while the two way MC5219?3.3YM5 and upgraded 1A output enables better power supply.
2. Safer Working: With spark switch function to prevent electric spark from damaging the power contacts and electronic components of the integrated circuit.
3. Wide Matching: Connects to IMU module through IIC interface, supports balance car function, also supports MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160 and other unit modules.
4. Reliable Work: Using immersion gold thickening process, 6 layer PCB layout design as well as 30Z copper foil thickness of each layer, which can increase heat dissipation performance and over current treatment process for better overall effect.

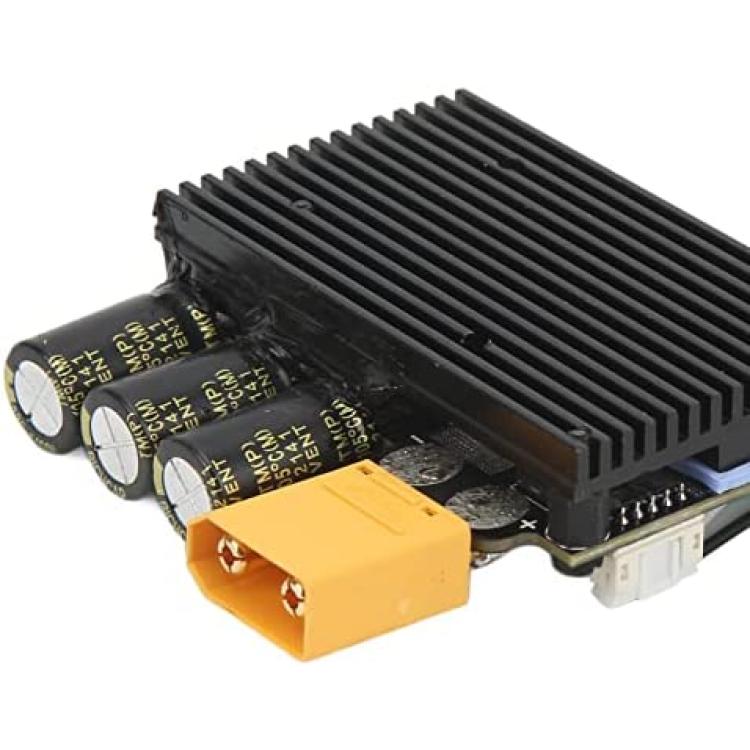

5. Quick Cooling: Combining aluminium alloy heat sink with thermal conductive silicone to enhance the heat dissipation of ESC. Also, the of the heat sink is anodized to prevent scratches.


Specification:


Item Type: Electronic Speed Controller
Material: PCB, aluminium alloy.
Input Voltage: 14-60V, safe for 4-12s, and the voltage should not exceed 60V.
Continuous Current: 70A
Instantaneous Current: 200A
ERPM: 150000
Communication Port: USB, CAN, UART.
Communication Method: PPM, ADC, NRF, UART, SPI, IIC.
Supported Sensors: ABI, HALL, AS5047, AS5048A
Motor Cable: 12AWG
Mode: DC, BLDC, FOC.
Application: For robotic arm, robot, DIY RC off road vehicle.





Package List:

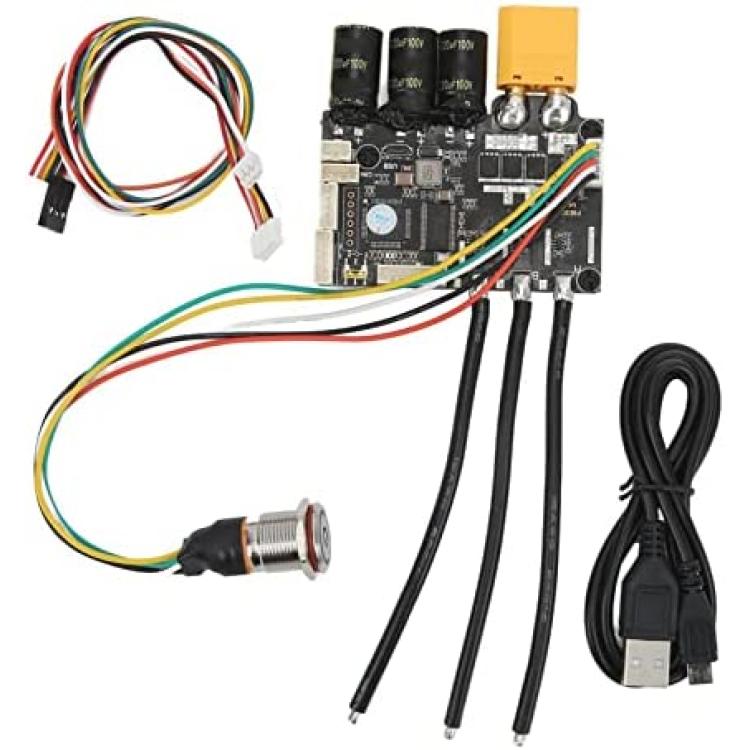

1 x Electronic Speed Controller
1 x PPM Cable
1 x 6 Pin Hall Line
1 x Data Cable
1 x User Manual


Note:
The ESC is for Benjamin ESC series, please use the for vesc tool to adjust the parameters before use.
