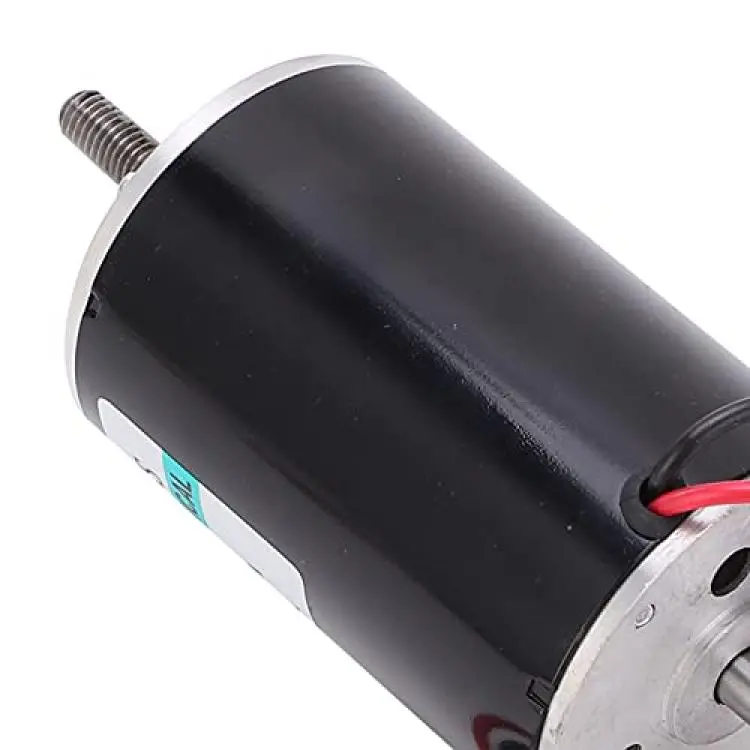

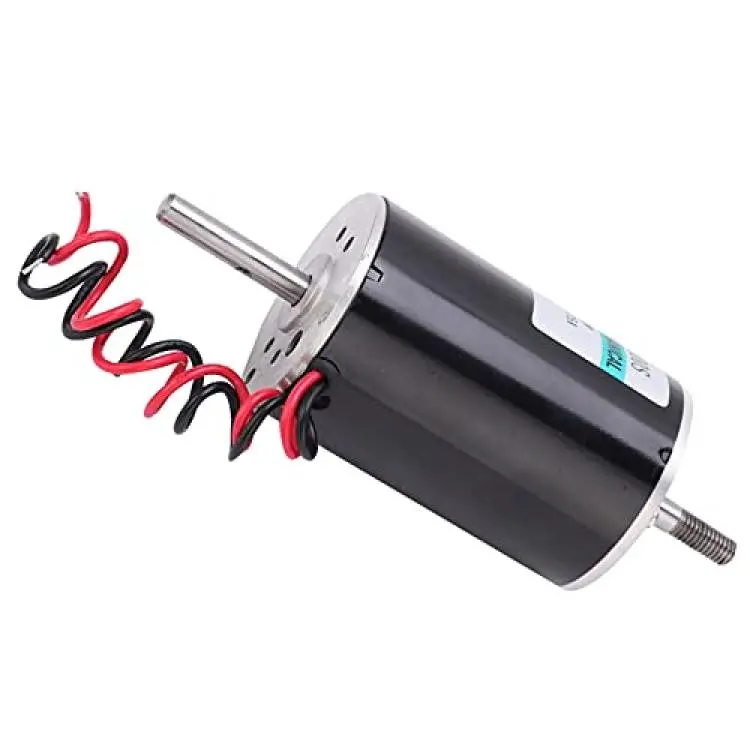

High‑Speed DC Motor, 80W 24V CW/CCW Permanent Magnet DC Motor Double Output Shaft Speed Regulation Motor(with Bracket)
Availability: Pre-Order, Inquiry Price
About this product
*The stator and rotor of this high-speed DC motor use the brass coil, deceleration resistance and enhanced conductivity to increase the motor torsion.
*The speed of this DC motor can adjust CW and CCW, more convenient operation, more practical.
*This high-speed DC motor uses double ball bearings, large bearing capacity, small friction, and strong oil sealing performance of ball bearings.
*This permanent magnet DC motor uses 2200GS high quality magnetic tiles to bring high work efficiency, low dynamic loss.
Description
Specification:
Item Type: DC Motor
Body Material: Iron
Model: XD60D94-24Y-100S
Scope of Application: Lawn mower, grinder, cutting machine, electric drill floor, small generator, winding machine, bag cutting machine, twisting machine, polishing machine, small radiator, toy, car model, blower, small pump, mixer
Voltage: 24VDC
Power: 80W
No-Load Speed: 10000 (r/min)
Load Speed: 8500 (r/min)
Load Torsion: 10 (kgf.cm)
Load Current: 10A
No-Load Current: 0.75A

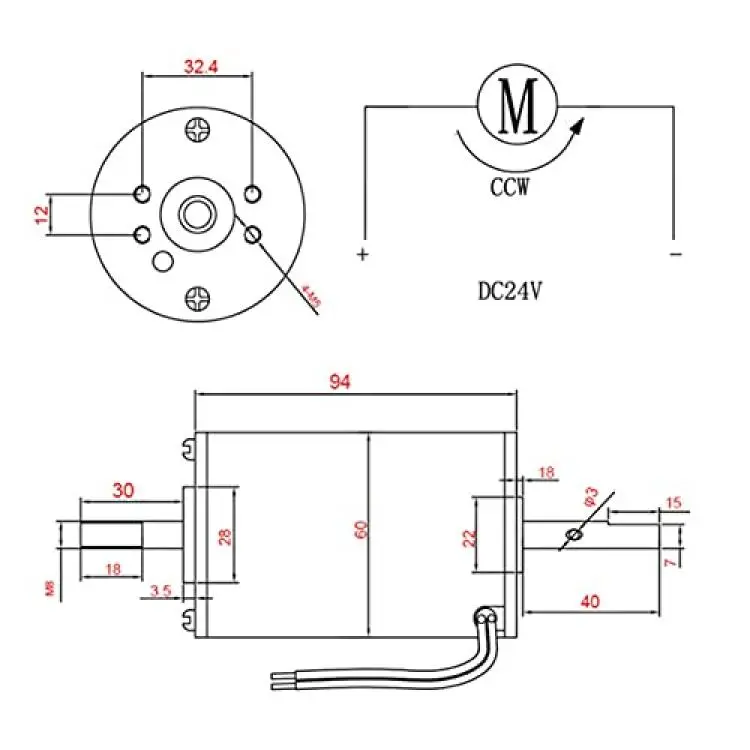

Output Shaft Diameter: Approx. 40 x 8mm / 1.6 x 0.3in
Whether to Adjust the Speed: Yes
Whether can be CW and CCW: Yes
Package List:
1 x DC Motor
or

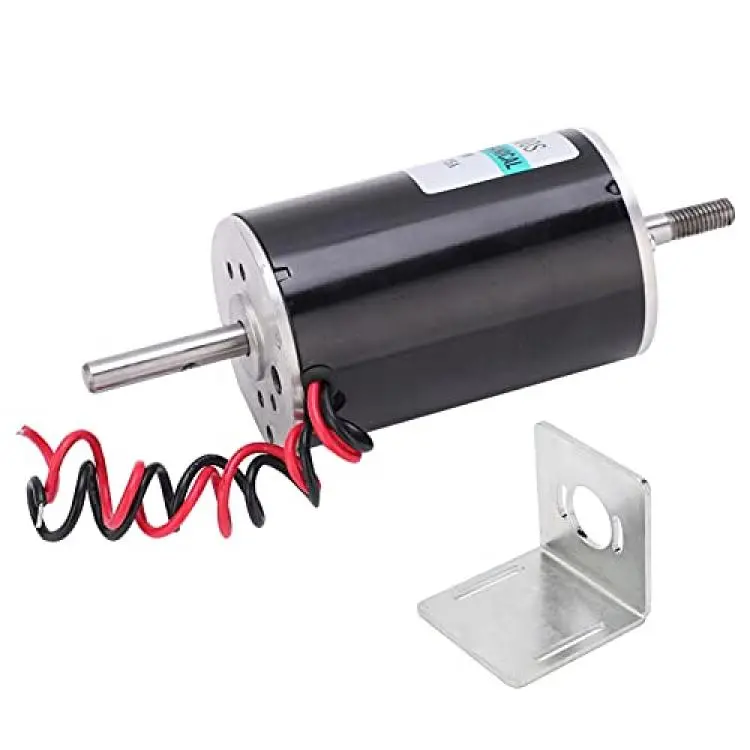

1 x DC Motor

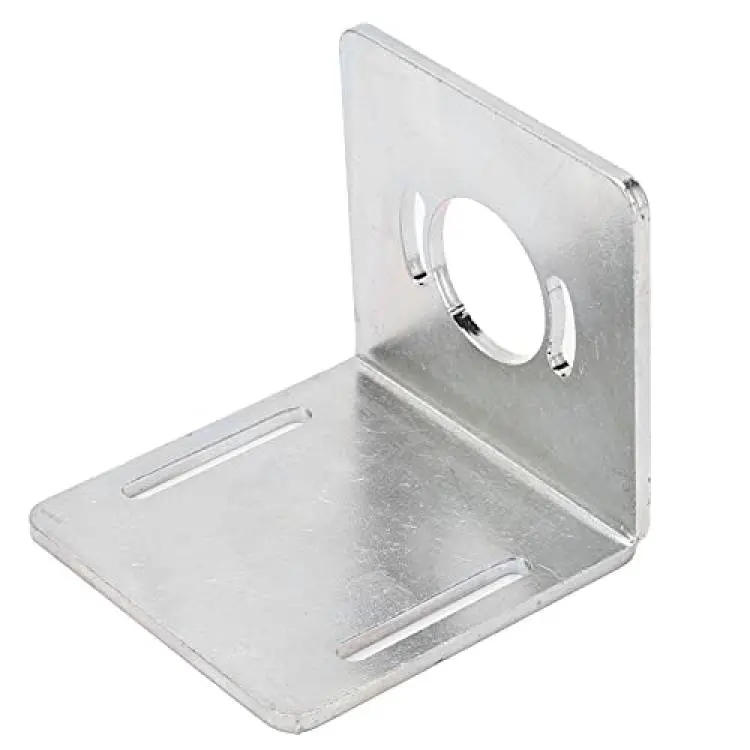

1 x Bracket
