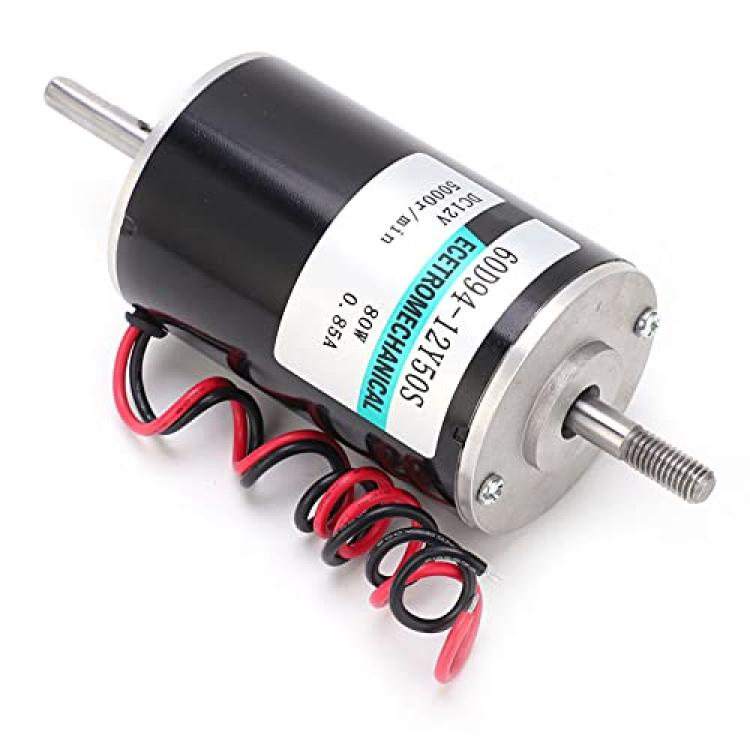

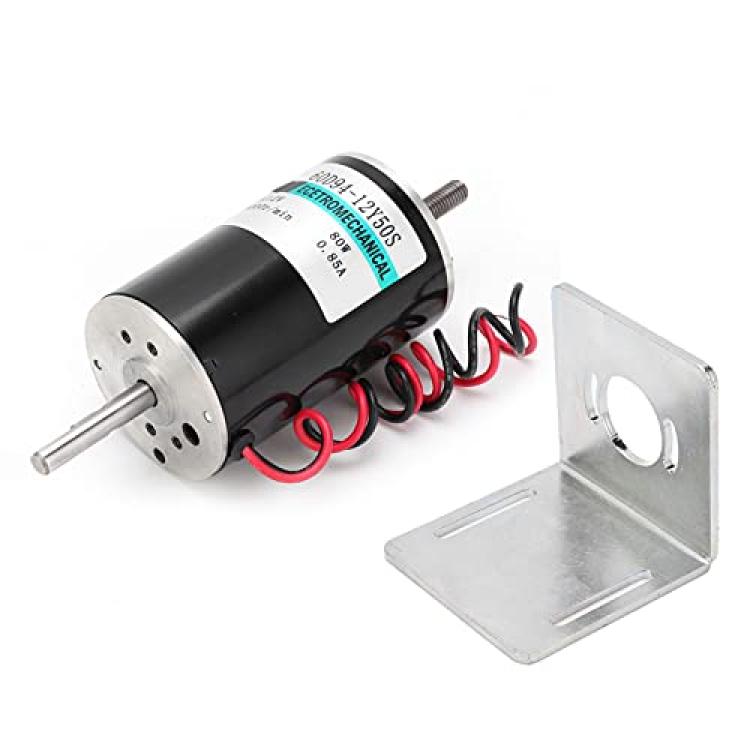

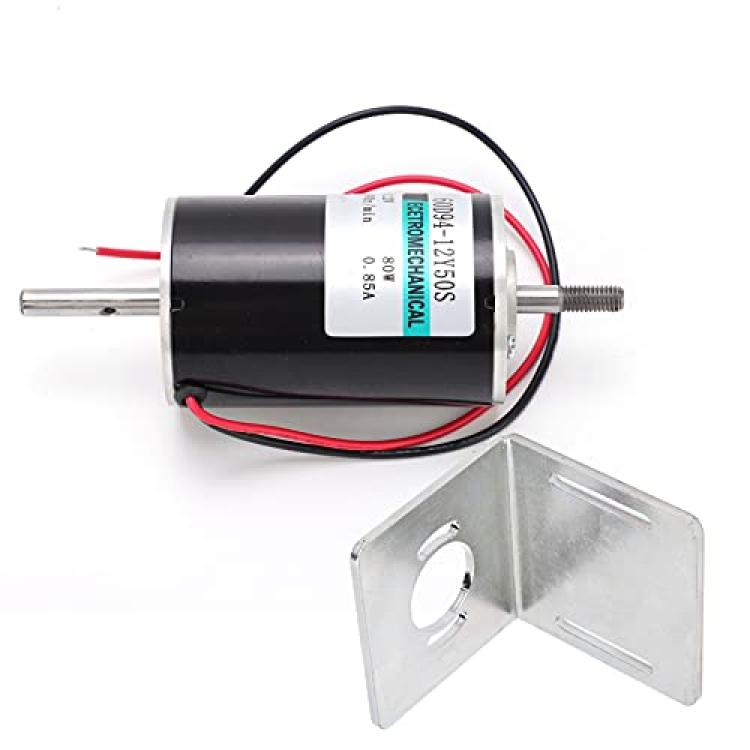

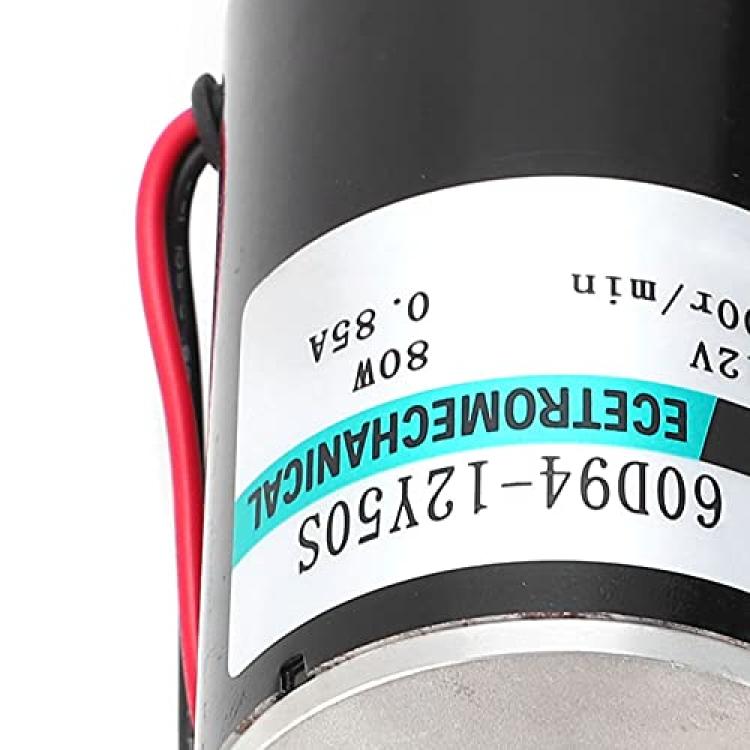

Fafeicy DC Motor, CW CCW HighSpeed Micro Double Output Shaft Speed Regulation Motor, 40 x 8mm Output Shaft, Adopts Double Ball Bearings, XD60D9412Y50S 80W 12V(with Bracket)
Availability: Pre-Order, Inquiry Price
About this product
*40 x 8mm output shaft, the speed can be adjusted CW and CCW, 5 (kgf.cm) Load Torsion, 5000 (r/min) No-Load Speed, 4250 (r/min) Load Speed.
*DC Motor adopts 2200GS good-quality magnetic tile, bring high working efficiency, low dynamic loss.
*DC Motor is suitable for grinder, cutting machine, electric drill floor, small generator, winding machine, bag cutting machine, twisting machine, polishing machine, small radiator, toy, car model, blower, small pump, mixer.
Description
Specification:
Item Type: DC Motor
Body Material: Iron
Model: XD60D94-12Y-50S
Scope of Application: grinder, cutting machine, electric drill floor, small generator, winding machine, bag cutting machine, twisting machine, polishing machine, small radiator, toy, car model, blower, small pump, mixer
Voltage: 12VDC
Power: 80W
No-Load Speed: 5000 (r/min)
Load Speed: 4250 (r/min)
Load Torsion: 5 (kgf.cm)
Load Current: 5A
No-Load Current: 0.85A

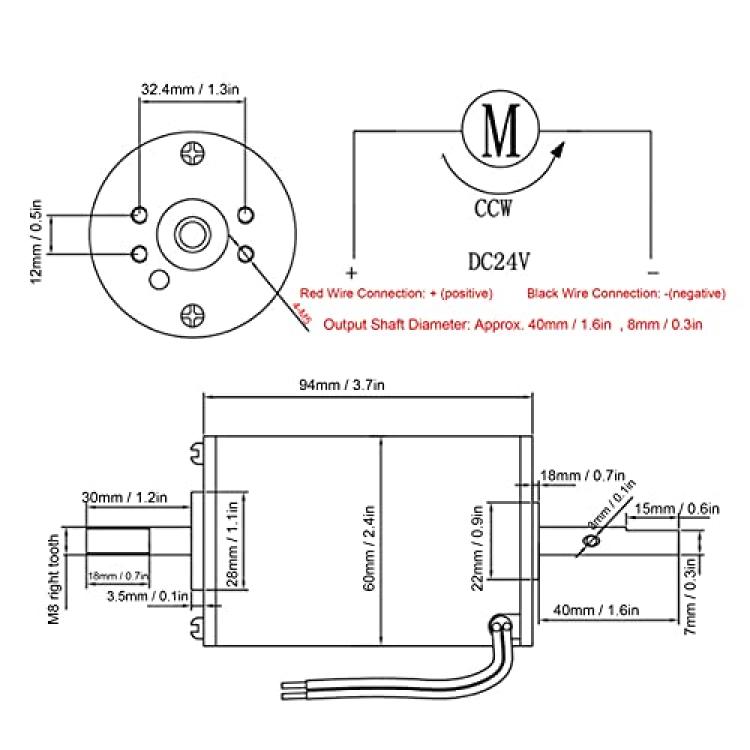

Output Shaft Diameter: Approx. 40 x 8mm / 1.6 x 0.3in
Whether to Adjust the Speed: Yes
Whether can be CW and CCW: Yes
How to Use:
1. Red Wire Connection: + (positive)
2. Black Wire Connection: (negative)
3. Directly connect to the 12V DC power supply
Package List:
1 x DC Motor
or
1 x DC Motor

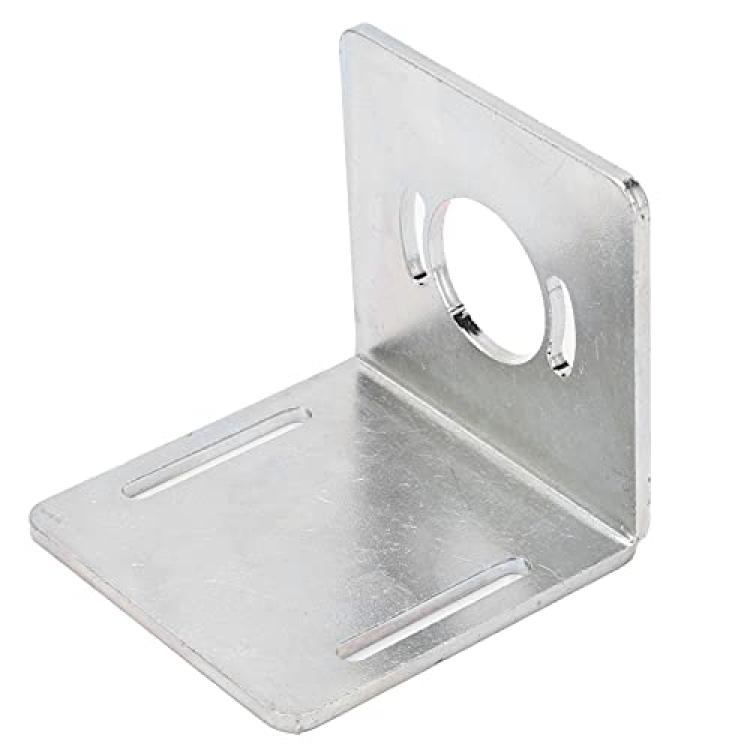

1 x Bracket
