Gear Motor DC Gear Motor DC 6/12V N20 Gear Box Reduction Motor with Long Output Shaft M4 x 100mm(6V 300RPM)
Availability: Pre-Order, Inquiry Price
About this product

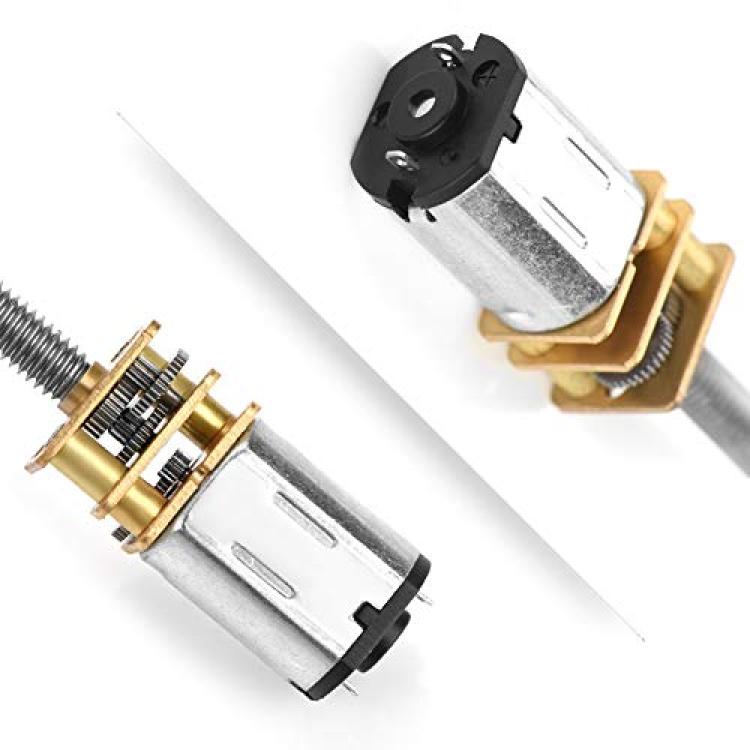

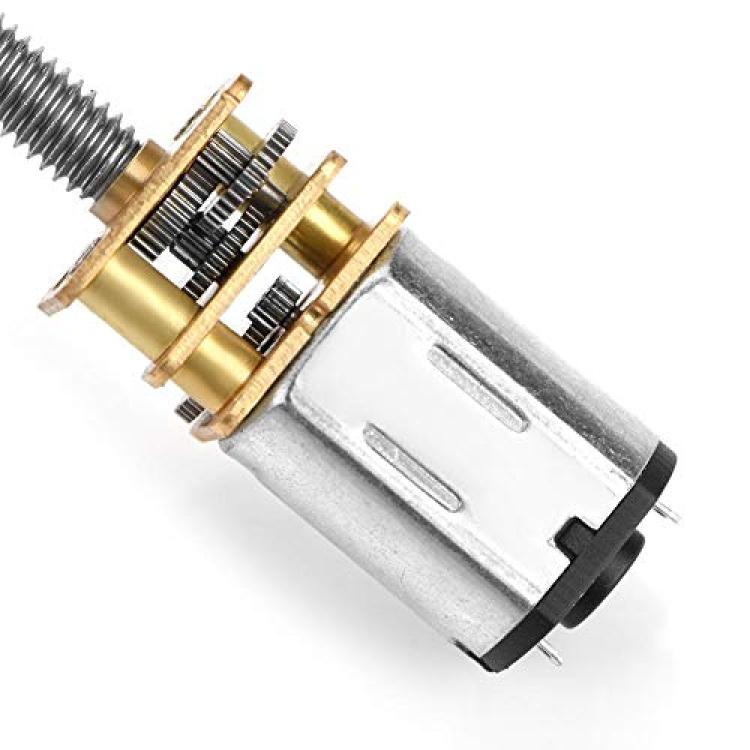

*★The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life
*★Suitable for lifts, landing gear, mechanical arms ,electronic toys and many other devices
*★This electronic gear motor is good replacement for old or worn electronic deceleration motor, useful and practical
*★This motor is adopted of pure copper wire coil, with low heat and low loss,This DC motor features large moment of force, low speed, and low noise
*★100% SATISFACTION GUARANTEE - We are confident in our products and stand behind them 100%. Just reach to us with any questions or concerns and we will be happy to help in less than 24 hours
Description
Specification:
Model: GA12N20-M4100
Rated power: 2W
3C rated voltage range: < DC 36V

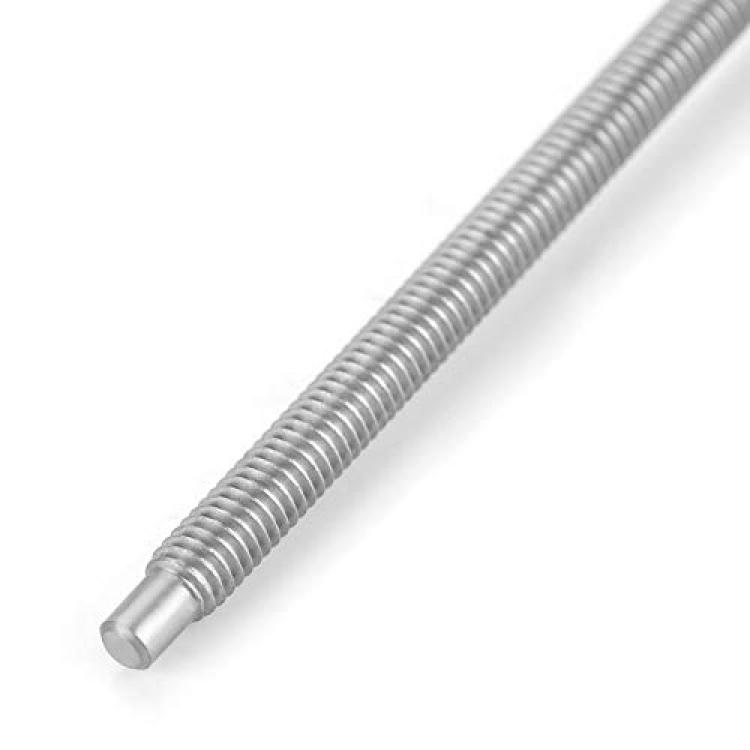

Tread type: M4

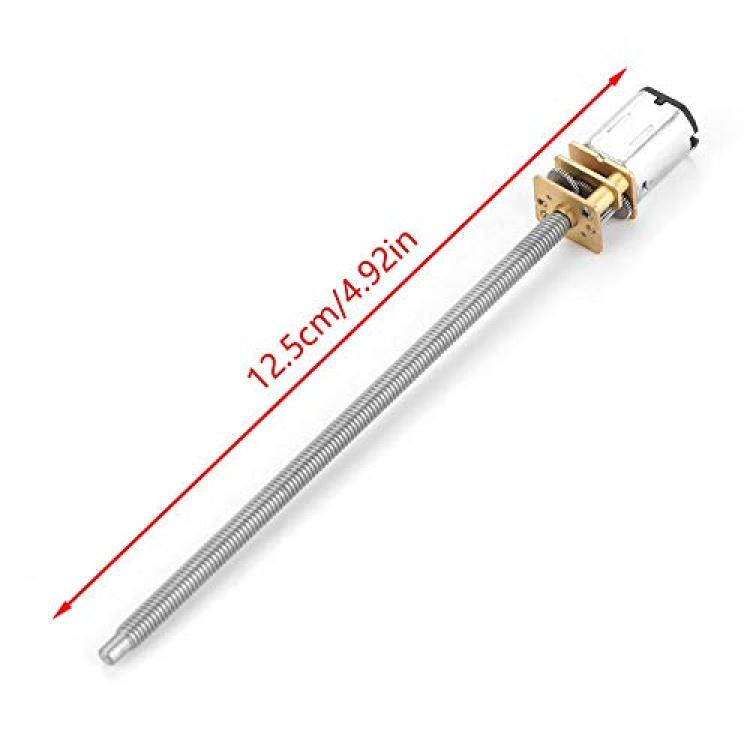

Output shaft length: 100mm / 3.9inch
Length: Approx. 125mm / 4.9inchWeight: Approx. 19g / 0.7oz
VoltageGear RatioNo LoadLoad TorsionStallSpeedCurrentSpeedCurrentTorsionCurrentTorsion6V1:29830RPM?40mA23RPM?40mA440gf.cm?1.1A3.3kgf.cm6V1:29860RPM?40mA50RPM?40mA560gf.cm?1.1A3.6kgf.cm6V1:100100RPM?50mA83RPM?45mA320gf.cm?1.1A2.25kgf.cm6V1:100150RPM?50mA130RPM?45mA260gf.cm?1.1A2.50kgf.cm6V1:50200RPM?50mA180RPM?45mA160gf.cm?1.1A1.60kgf.cm6V1:50300RPM?50mA240RPM?50mA190gf.cm?1.1A2.0kgf.cm6V1:50400RPM?50mA350RPM?70mA210gf.cm?1.1A2.2kgf.cm6V1:50500RPM?70mA440RPM?100mA220gf.cm?1.1A2.4kgf.cm12V1:100300RPM?50mA240RPM?60mA550gf.cm?1.1A3.6kgf.cm12V1:50400RPM?50mA310RPM?45mA280gf.cm?1.1A2.4kgf.cm12V1:50600RPM?50mA500RPM?50mA310gf.cm?1.1A3.0kgf.cm
Package List:
1 x Gear Motor
Note:
1. Please allow small size error due to manual measurement. Thanks for your understanding.
2. Only a gear motor, no other stuff included.
