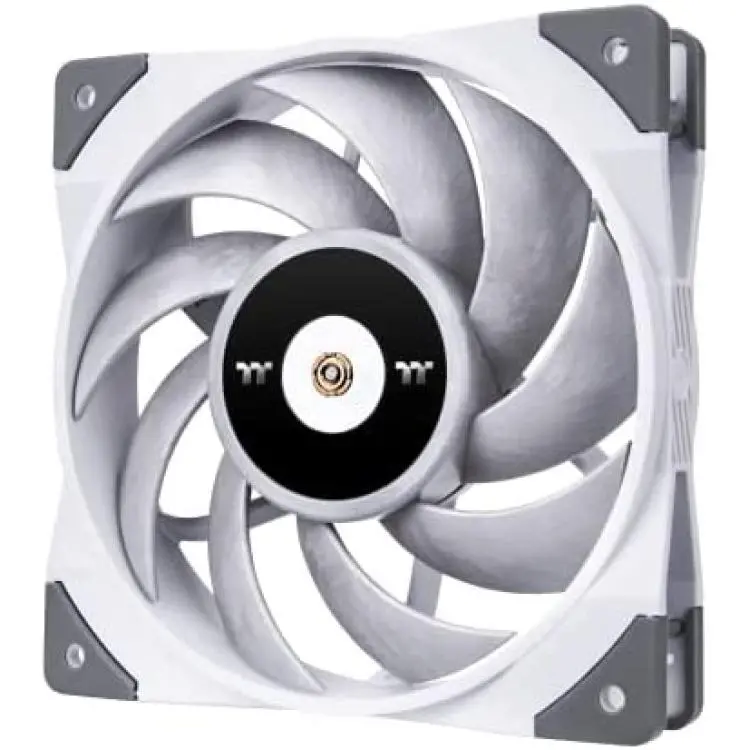

Thermaltake ToughFan 12 White High Static Pressure 2000 PWM, Metal-Reinforced Motor Hub, Gen.2 Hydraulic Bearing 120mm Case/Radiator Fan, Single Pack, CL-F117-PL12WT-A
Share Facebook Twitter Pinterest Email

Thermaltake ToughFan 12 White High Static Pressure 2000 PWM, Metal-Reinforced Motor Hub, Gen.2 Hydraulic Bearing 120mm Case/Radiator Fan, Single Pack, CL-F117-PL12WT-A

Brand: ‎Thermaltake
Product Code: MM17853
Availability: Pre-Order, Inquiry Price
US$0.00
- +

Description

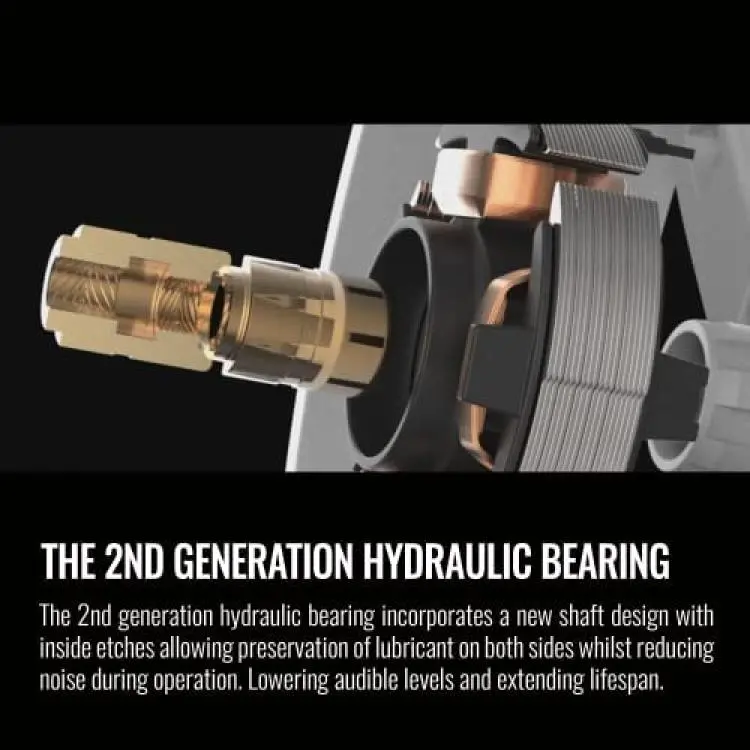

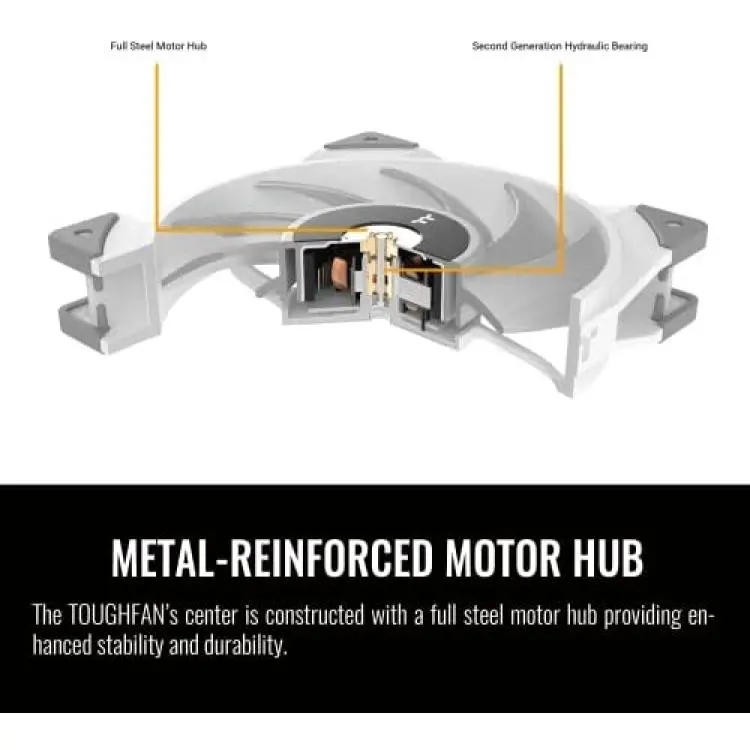

The TOUGHFAN is a PWM controlled fan which performs at a maximum operating speed of up to 2000 RPM. Its fan blade is built with special compound which minimizes vibration when the fan is operating at full speed, and the center is constructed with a full steel motor hub providing enhanced stability •P/N: CL-F117-PL12WT-A •FAN DIMENSION: 120 x 120 x 25 mm •STARTED VOLTAGE: 9.0 V •RATED CURRENT: 0.12 A •RATED VOLTAGE: 12 V •POWER INPUT: 1.44 W •FAN SPEED: PWM 500~2000 R.P.M, With L.N.C PWM 500~1500 R.P.M •MAX. AIR PRESSURE: 2.41 mm-H2O, With L.N.C 1.2522 mm-H2O •MAX AIR FLOW: 58.35 CFM, With L.N.C 45.72 CFM •NOISE: 22.3 dB-A, With L.N.C 19 dB-A •BEARING TYPE: Hydraulic Bearing Gen.2 •LIFE EXPECTATION: 40,000 hrs,25? •CONNECTOR: 4 PIN PWM •WEIGHT: 212.5 g
