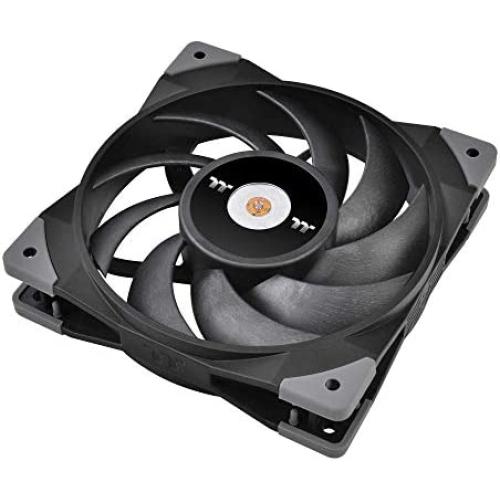

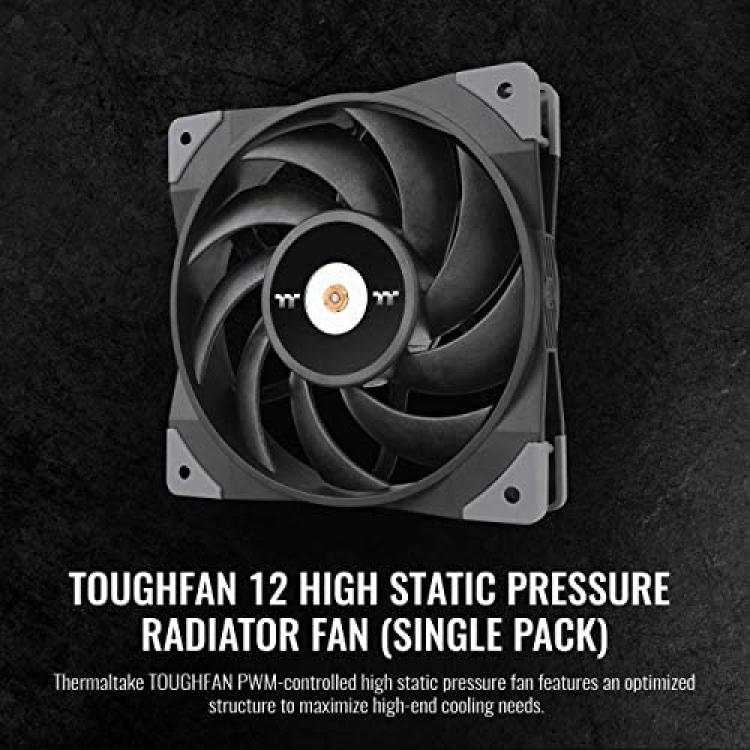

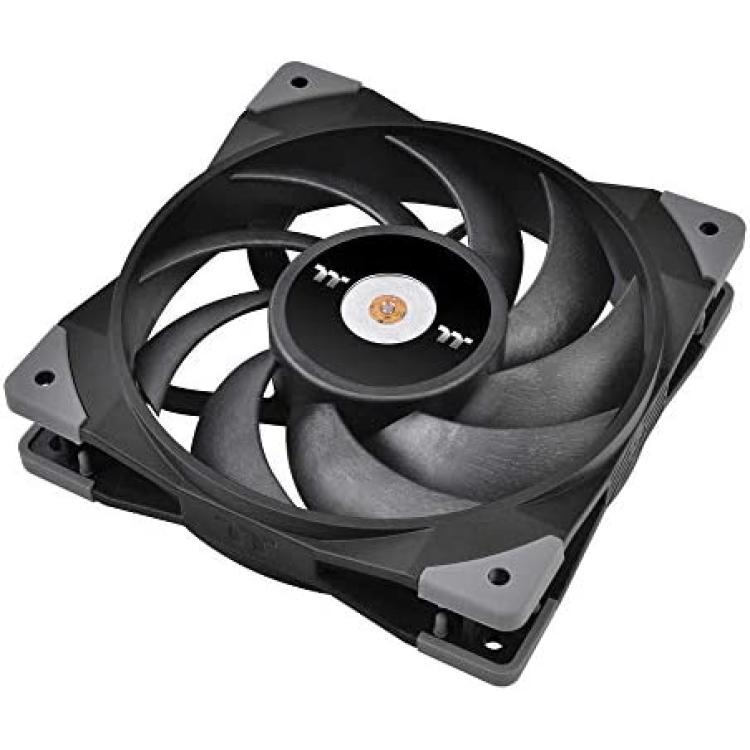

Thermaltake ToughFan 12 High Static Pressure 2000 PWM, Metal-Reinforced Motor Hub, Gen.2 Hydraulic Bearing 120mm Case/ Radiator Fan (Single Pack) CL-F117-PL12BL-A
Description

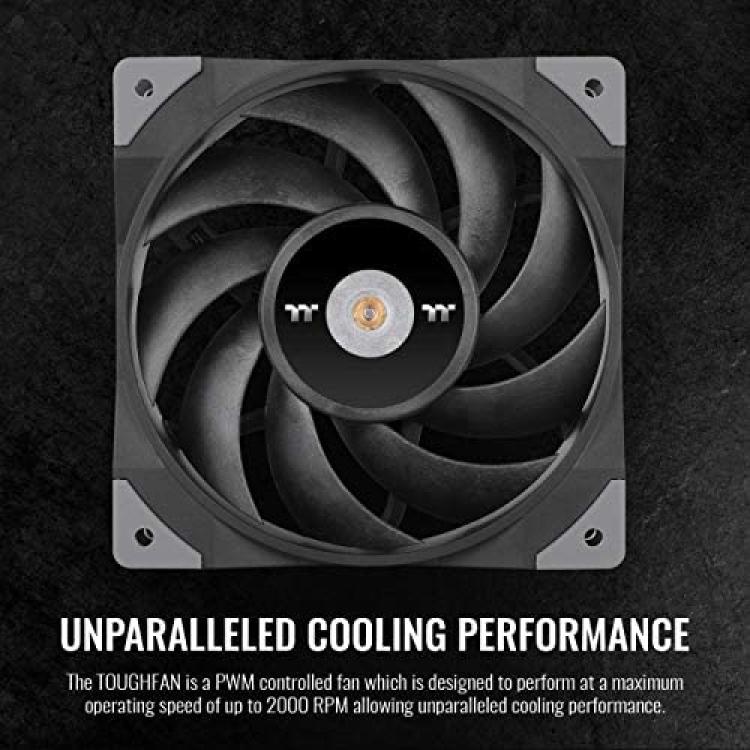

The TOUGHFAN is a PWM controlled fan which performs at a maximum operating speed of up to 2000 RPM. Its fan blade is built with special compound which minimizes vibration when the fan is operating at full speed, and the center is constructed with a full steel motor hub providing enhanced stability
P/N: CL-F117-PL12BL-A
FAN DIMENSION: 120 x 120 x 25 mm
FAN STARTED VOLTAGE: 9.0 V
FAN RATED VOLTAGE: 12 V
RATED CURRENT: 0.12 A
POWER INPUT: 1.44 W
FAN SPEED: 500 ~ 2000 R.P.M
With L.N.C PWM 500~1500 R.P.M
MAX. STATIC PRESSURE: 2. 41mm-H2O
MAX AIR FLOW: 58.35 CFM
NOISE: 22.3 db-a (without L.N.C),19.2 db-a (with L.N.C)
BEARING TYPE: Hydraulic Bearing Gen. 2
LIFE EXPECTATION: 40,000 hrs, 25?
CONNECTOR: 4 PIN PWM
WEIGHT: 212.5 g (Fan*1).
