OSOYOO 4WD L298N Motor Driver Board Dual H Bridge DC JST Connectors for Robotic Smart Car for Arduino Rapsberry Pi 3 3b 4b

OSOYOO 4WD L298N Motor Driver Board Dual H Bridge DC JST Connectors for Robotic Smart Car for Arduino Rapsberry Pi 3 3b 4b

Brand: ‎OSOYOO
Product Code: MM17554
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*OSOYOO Model-Pi L298N board is perfect motor driver board for Raspberry Pi portable applications such as robots, RC cars , drones , mini weather station etc.

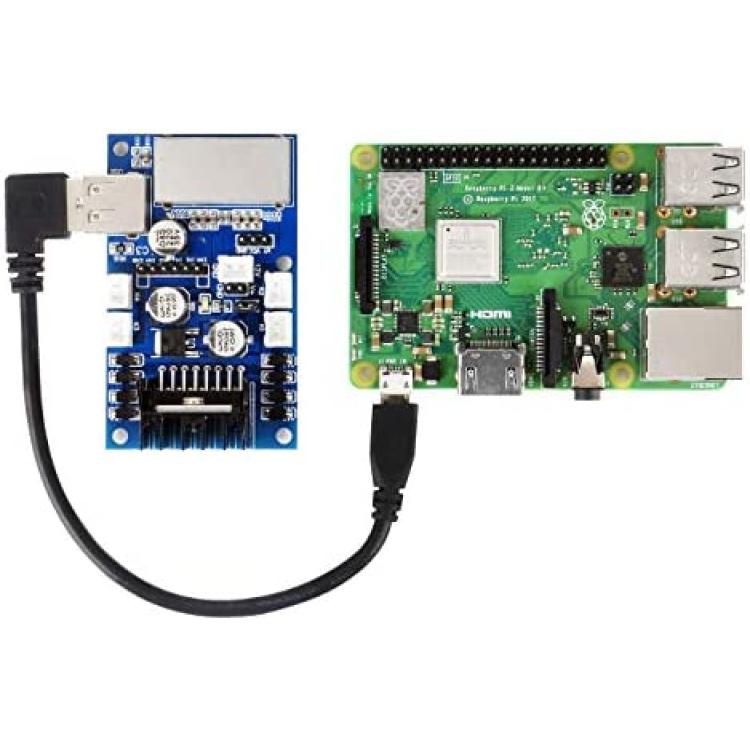

*This board supports all the features of L298N DC motor driver, in addition, it also has a USB 5V output port which can provide stable voltage to Raspberry Pi board without AC power input.

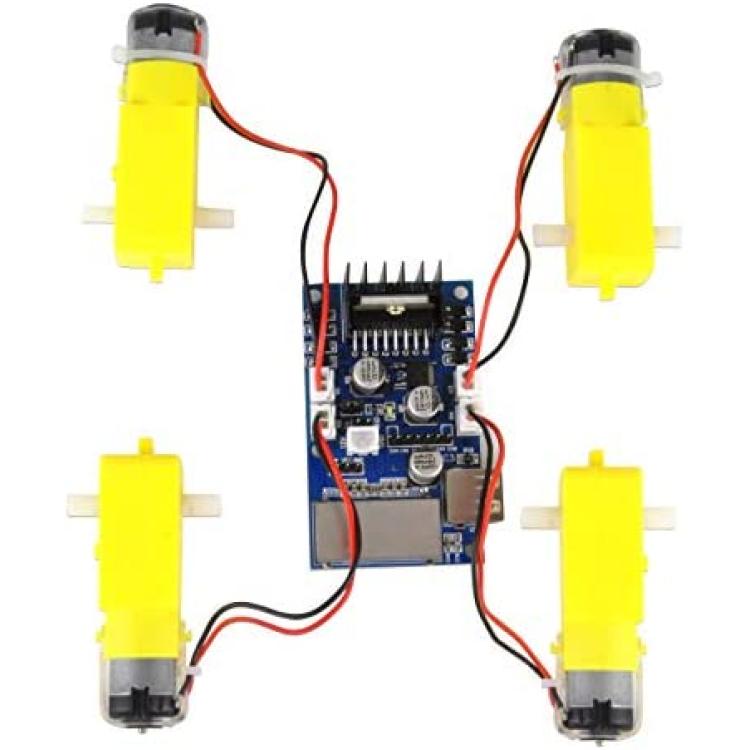

*I/O pins fully compatible with L298N including EnableA/IN1/IN2/IN3/IN4/EnableB . It also has two channels of PWM output. Each channel supports two sockets which can power two DC motors.

*Input power source can be 7.5v-24v batteries (we suggest using 2pcs tandem 18650 batteries etc, or 6pcs AAA Tandem AAA batteries, or , 2pcs Parallel 9V batteries for robot project). USB port gives stable 5V/2.4A output.

*OSOYOO Model-Pi L298N board is perfect motor driver board for Raspberry Pi portable applications such as robots, RC cars , drones , mini weather station etc.

Description

Specification:

1. When ENA enable IN1 IN2 control OUT1 OUT2 ( K1 and K2 ); When ENB enable IN3 IN4 control OUT3 OUT4 ( K3 and K4 ).

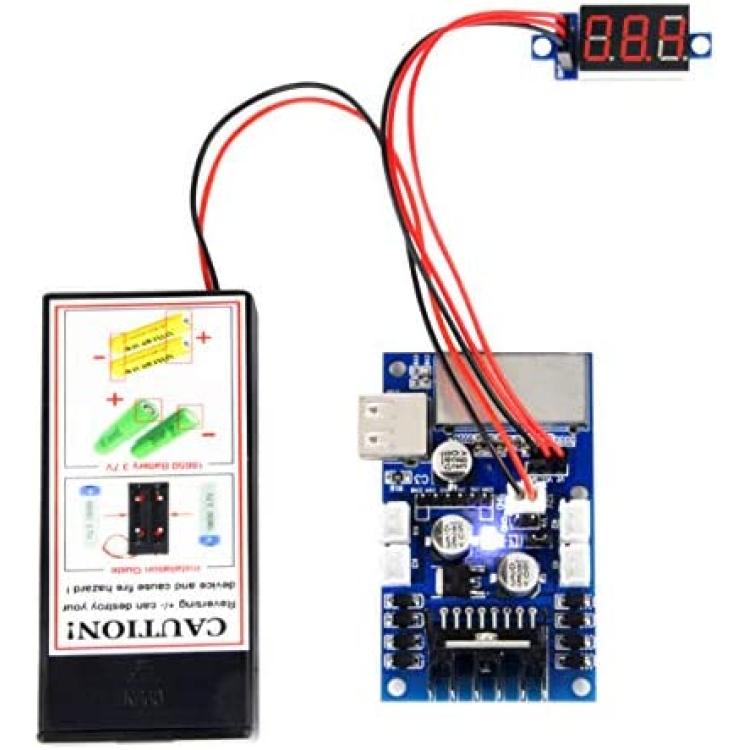

2. DC Voltage Meter Port: connect the voltage meter to display the input power voltage.

3. Power Output: 5V 2.5A output is suitable for raspberry pi

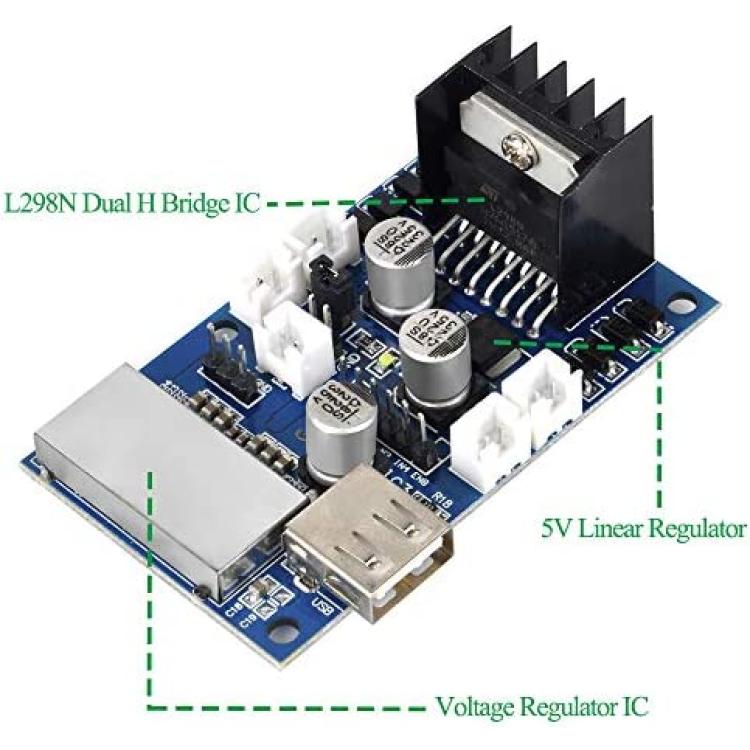

1. L298N as main chip,dual-channel H-bridge driver working mode creates higher working efficiency.

2. Use large-capacity filter capacitors and diode with freewheeling protection function, increasing reliability.

3. Voltage regulator IC can keep 5V and 2.5A power output and is suitable for raspberry pi board.

Physical Display

It can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.

To avoid damage the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage.

Voltage regulator IC can keep 5V and 2.5A power output and is suitable for raspberry pi board.

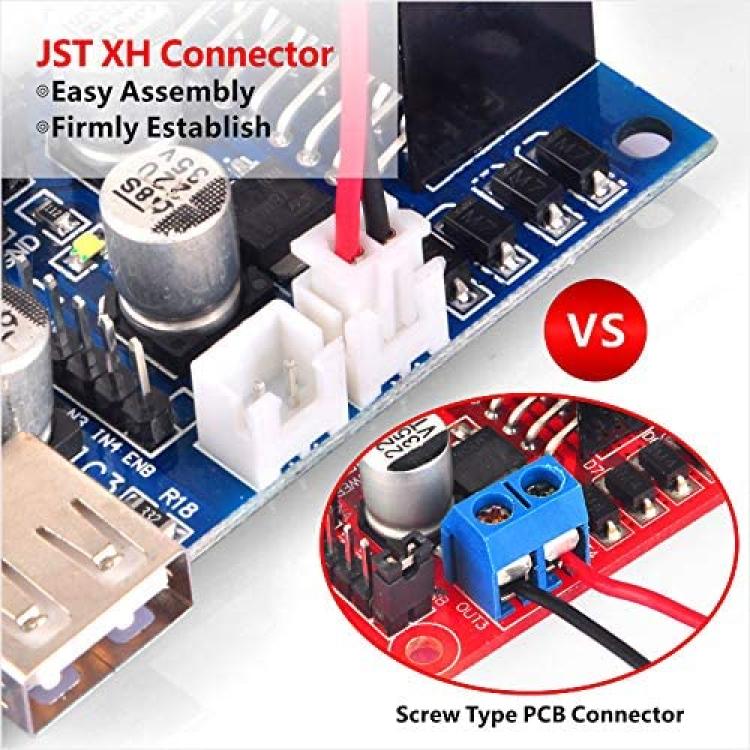

Chip: L298NLogic voltage: 5VLogic current 0mA-36mADrive voltage: 5V-35VDrive current: 2A (MAX single bridge)Storage Temperature: -20 ? to ? to +135Operating mode: H-bridge driver (dual)New generalization design standards of electrical connectors - JST is a Japanese company which makes high-quality connectors.Our 2.54mm JST connector of choice is the XH series two-position polarized connector.It has the advantage of being compact, durable and difficult to connect backwards.
