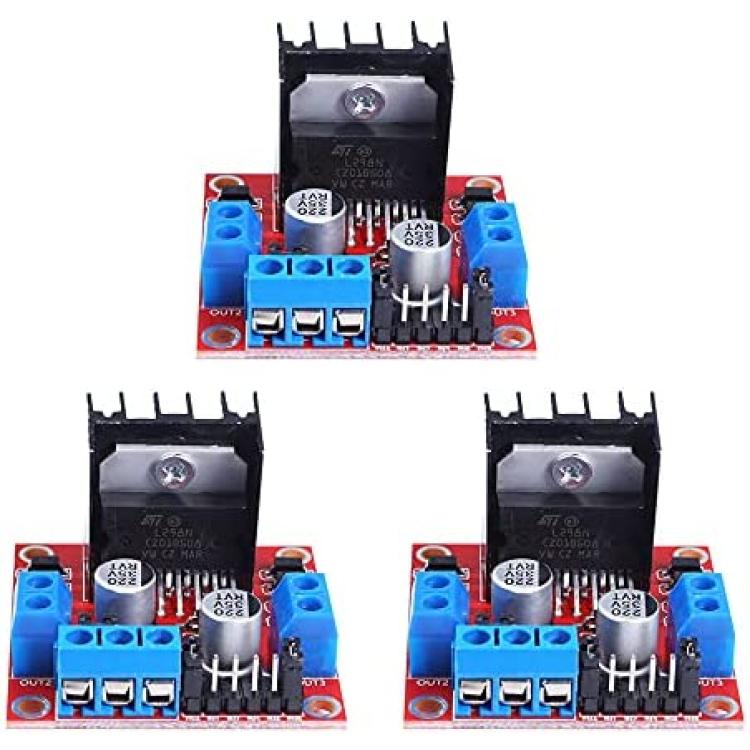

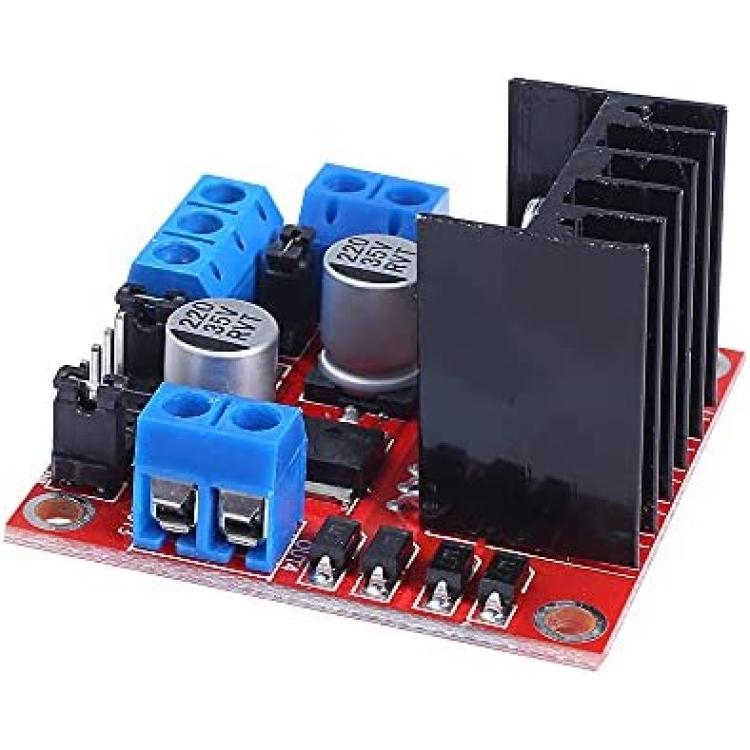

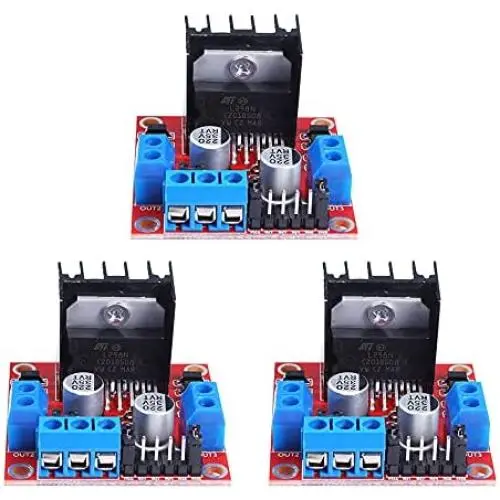

Songhe L298N Motor Driver Controller Board Module Dual H Bridge DC Driver Stepper Motor For Arduino Smart Car 3PCS
About this product
*The L298N driver module, using L298N chip can directly drive two 3-30V DC motor, and provides a 5V output interface, you can chip circuitry to 5V power supply, support 3.3VMCU control, you can easily control the DC motor speed and direction, you can also control the 2-phase stepper motor, smart car essential.
*Terminal driver part of the supply area VMS: +5V ~ +35V;Drive part of the peak current Io: 2A / Bridge
*Logical part of the terminal power supply range Vss :4.5-5 .5V;Logical part of the operating current range: 0 ~ 36mA
*The control signal input voltage range: 4.5-5.5V low 0V high;Maximum power consumption: 20W
*Driver Board Size: 55mm * 60mm * 30mm
Description

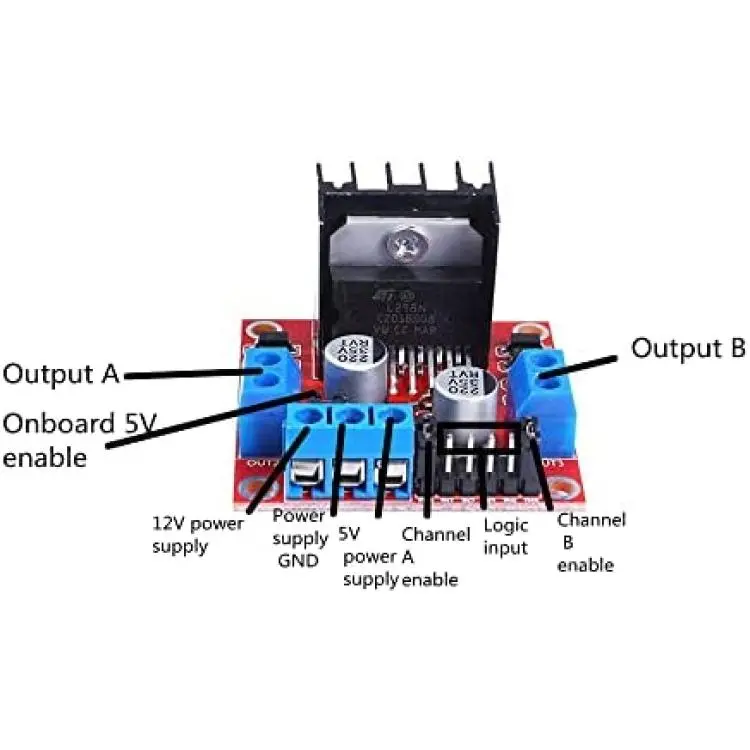

Specification: Chip: L298N Logic voltage: 5V Logic current 0mA-36mA Storage Temperature: -20 ? to ? to +135 Operating mode: H-bridge driver (dual) Drive voltage: 5V-35V Drive current: 2A (MAX single bridge) Maximum power: 25W Dimensions: 43x43x27mm Note: This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available. When ENA enable IN1 IN2 control OUT1 OUT2 When ENB enable IN3 IN4 control OUT3 OUT4
