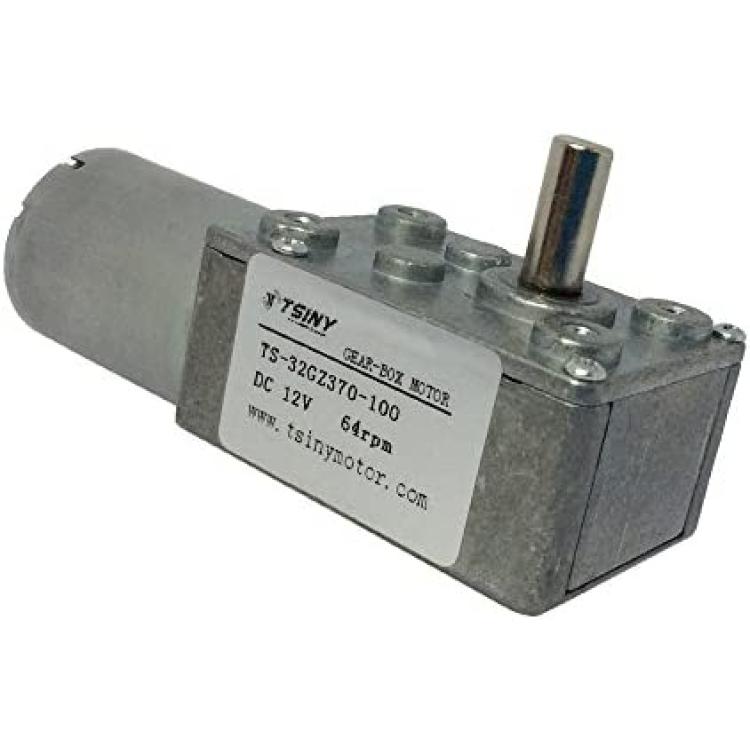

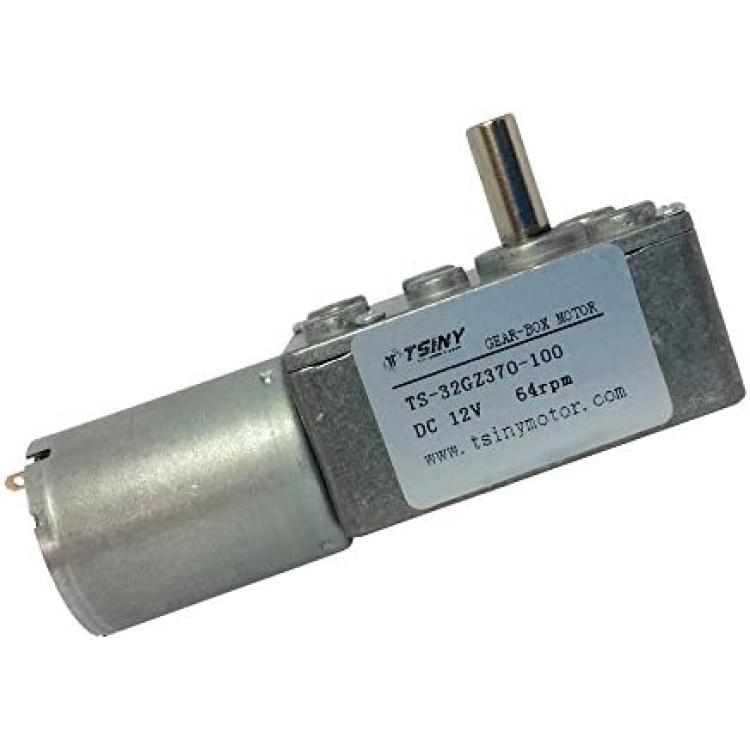

BEMONOC 12V Small DC Worm Geared Motor 64 RPM Metal 6mm Shaft for DIY Parts
About this product
*✔Rated voltage: DC12V; No-load speed: 64RPM; Rated torque: 1.5 kg.cm; Rated Current: 0.3A;
*✔Reduction ratio: 1/100; Protection class: IP54; Low noise: db
*✔Gear Motor Body Dimensions: 3 x 1.25 x 1.06inches(L*W*H); Out Shaft Dimensions: 0.53*0.23inches(L*D) with 0.047*0.43inches flat cut off;
*✔Usage: Boat, Car, Electric Bicycle, Fan, Home Appliance, Electric windows, intelligent gas meter, and so on; is_customized: Yes;
*✔Package: 1PCS x DC Geared Motor; if you need other voltage and rpm, pls contact us, there are many other models of this motor in store.
Description
This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.It's also have addition two characteristics:
(1)With self-locking, the output shaft can't rotation when switch off, that is self-locking.
(2)Gearbox output shaft and motor shaft are come to be a rectangle, it's widely used in various of occasions that require special install size.
