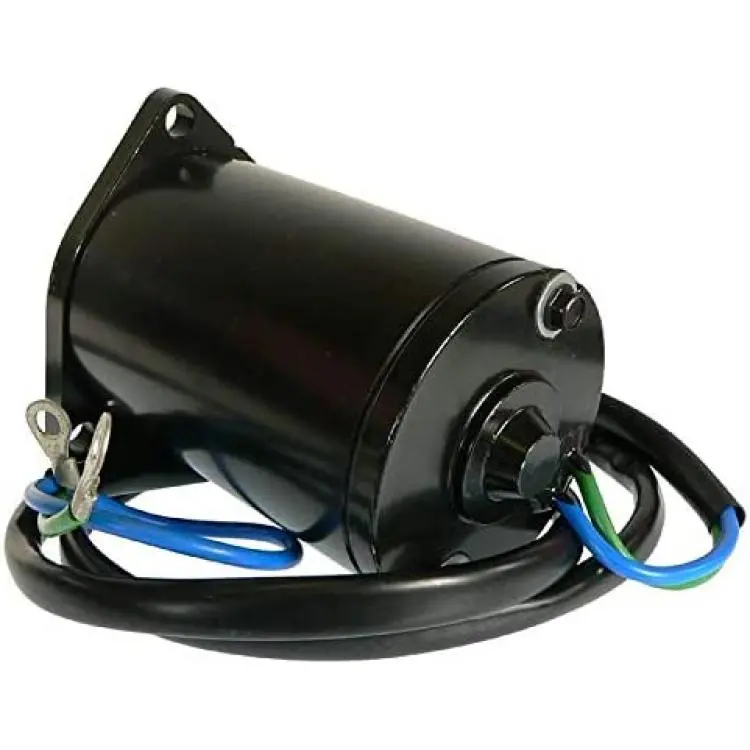

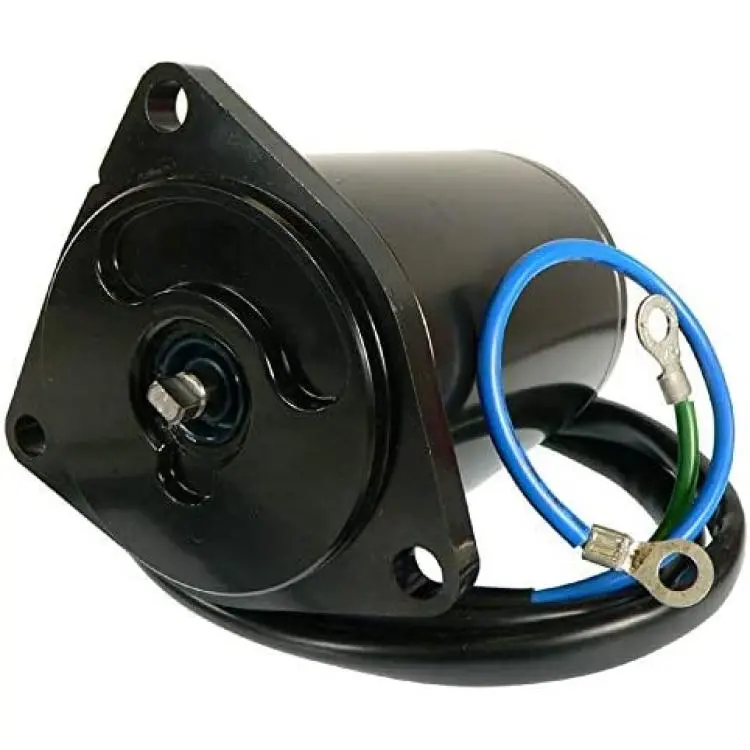

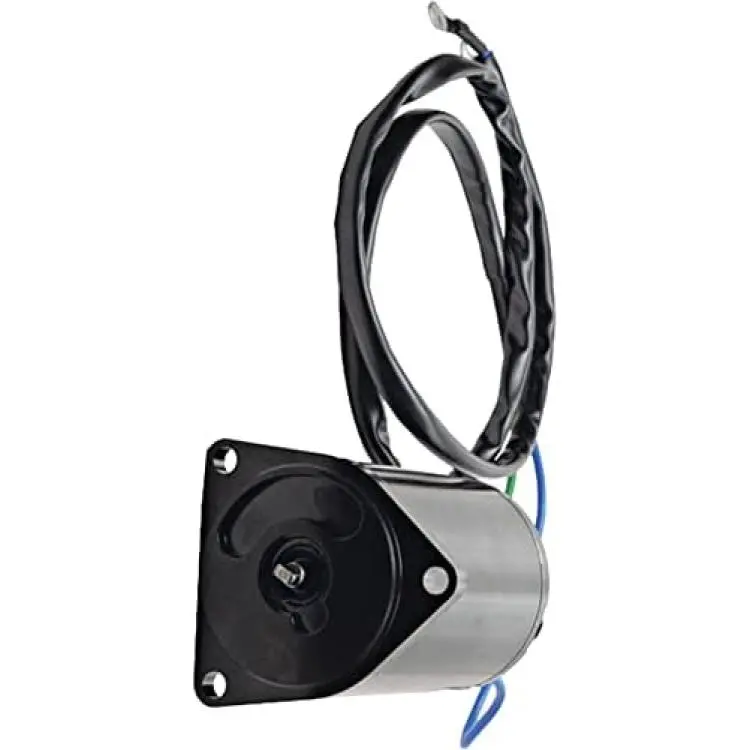

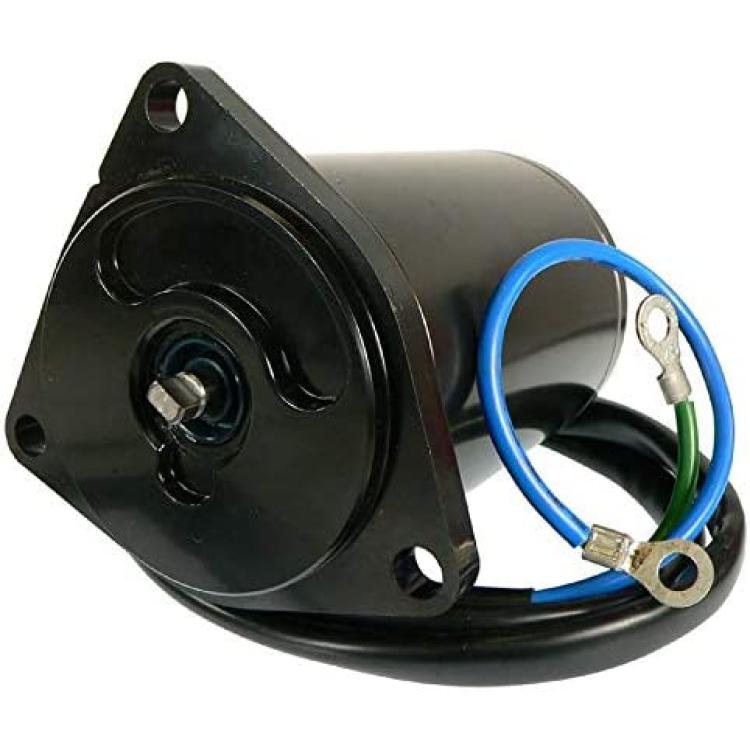

DB Electrical 430-22098 Tilt & Trim Motor Compatible with/Replacement for Yamaha F200TXR, F225TXR, LF200TXR, LF225TUR 2002-2008, F250TUR, F250TXR 2006-2009, LF250TUR 2005-2009 10865N

**Verify the part fits before purchasing**

Specs:

Unit Type: Tilt & Trim Motor
Voltage: 12
Rotation: RE
Dimension: Replacement Unit:, OD: 3.906in / 99.2mm, Shaft OD: 0.315in / 8mm, Length: 5.382in / 136.7mm, Shaft: Tang,
Brief: Yamaha 200-300HP Outboard Motors 2002-09

Replaces OEM Numbers:

API MARINE: PT616NM
ARCO MARINE: 6263
ARROWHEAD: TRM0082
EMP UnitS: 4-6798
J & N: 430-22098
J & N (OLD): 430-22079
LESTER: 10865
LESTER (OLD): 10870
QUICKSILVER: 8M6007563
SIERRA MARINE: 18-6798
Yamaha: 60V-43880-00-00, 69J-43880-00-00, 69J-43880-01-00

Compatible With/Replacement For:

YAMAHA F200TXR 2002-2008, F200TXR 2009-2011, F200XA 2012-2018, F225NCA 2015-2018, F225TUR 2002-2006, F225TXR 2002-2008, F225TXR 2009-2011, F225XA 2012-2018, F225XB 2017-2018, F225XCA 2011-2018, F250BTUR 2009-2010, F250BTXR 2009-2010, F250NCA 2015-2018, F250TUR 2006-2009, F250TUR 2010-2012, F250TXR 2006-2009, F250TXR 2010-2012, F250UA 2013-2014, F250UCA 2011-2018, F250XA 2013-2018, F250XB 2017-2018, F250XCA 2011-2018, F300BETU 2017-2017, F300BETX 2017-2017, F300NCA 2015-2018, F300UCA 2011-2018, F300XA 2018-2018, F300XCA 2011-2018, FL300BETU 2017-2017, FL300BETX 2017-2017, LF200TXR 2002-2008, LF200TXR 2009-2011, LF200XA 2012-2018, LF225TUR 2002-2006, LF225TXR 2002-2008, LF225TXR 2009-2011, LF225XB 2017-2018, LF225XCA 2011-2018, LF250BTUR 2009-2010, LF250BTXR 2009-2010, LF250TUR 2005-2009, LF250TUR 2010-2012, LF250TXR 2005-2009, LF250TXR 2010-2012, LF250UA 2013-2014, LF250UCA 2011-2018, LF250XA 2013-2018, LF250XB 2017-2018, LF250XCA 2011-2018, LF300UCA 2011-2018, LF300XA 2018-2018, LF300XCA 2011-2018, LZ250TUR 2003-2006, LZ250TXR 2003-2006, LZ300TUR 2004-2007, LZ300TXR 2004-2007, VF250XA 2016-2018, Z250TUR 2003-2006, Z250TXR 2003-2006, Z300TUR 2004-2007, Z300TXR 2004-2007
