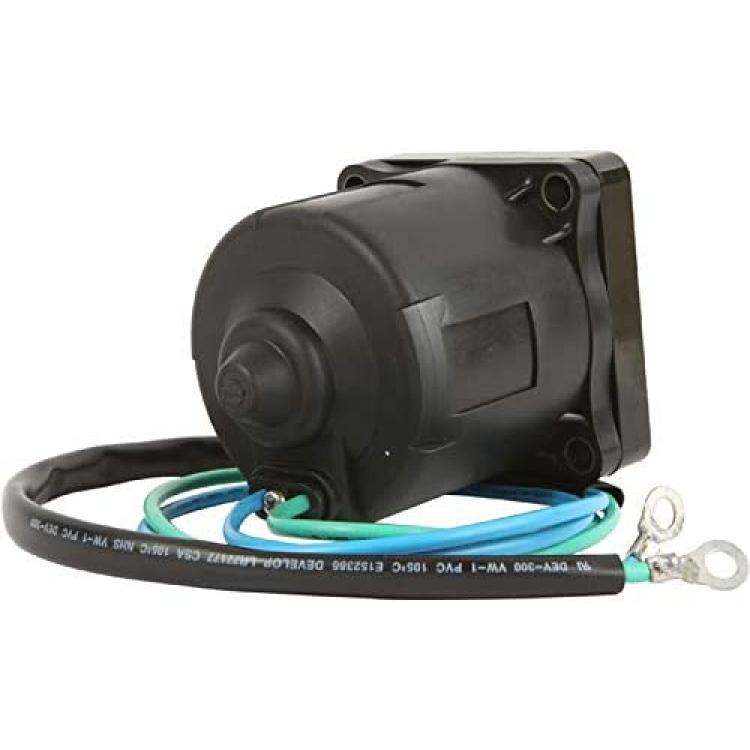

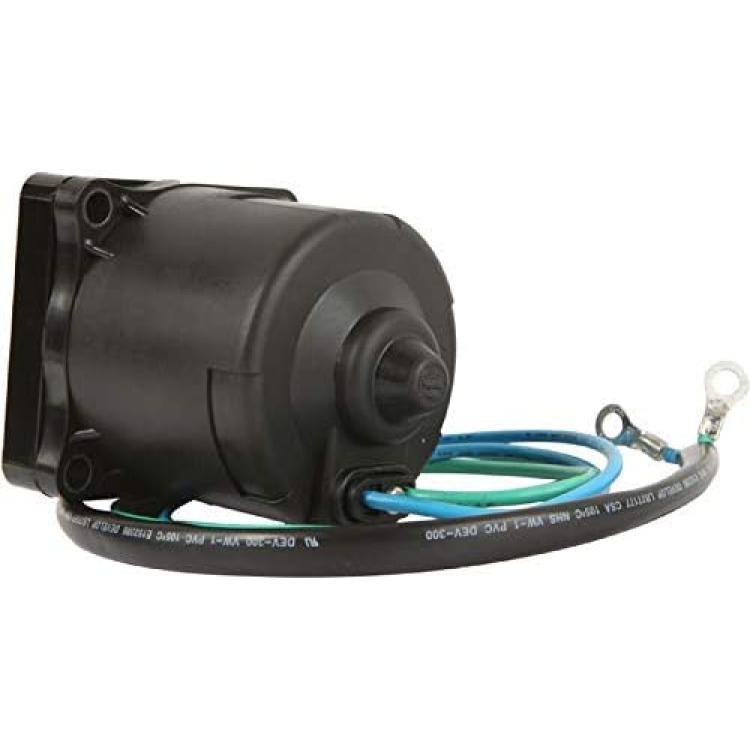

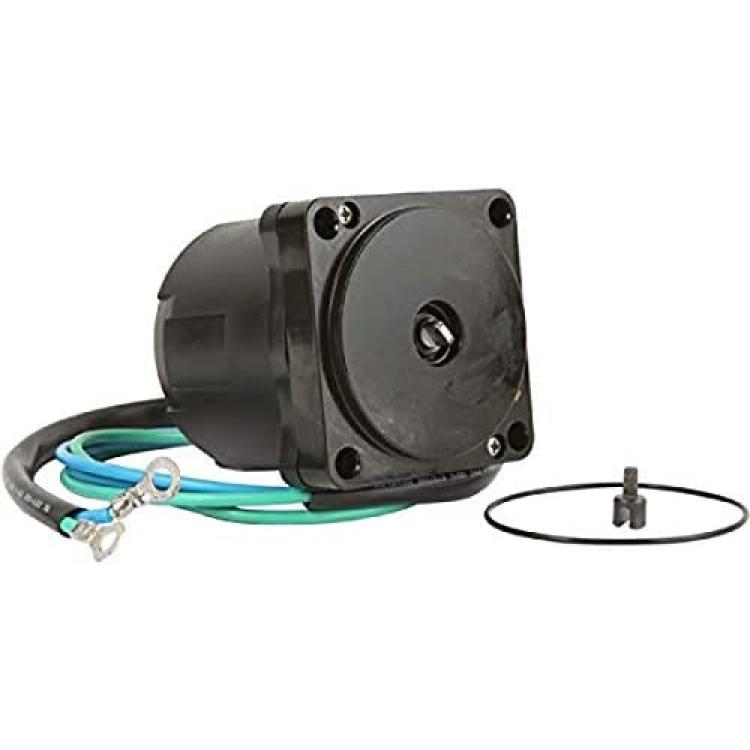

DB Electrical New TRM0069 Tilt & Trim Motor Compatible with/Replacement for Johnson BJ60PL4, BJ70PL4, J60PL4, J70PL4 2006, Yamaha 115TJR 1997-1999, 115TLR 1997-2010, 115TXR 2002-2006 10855N
About this product
*JOHNSON & YAMAHA REPLACEMENT/COMPATIBLE: Our starter is compatible with Johnson model numbers J60PL4, BJ60PL4, BJ70PL4, BJ70PL4, J60PL4, J60PL4, J70PL4, J70PL4 and Yamaha model numbers 115TJR , 115TLR, 15TXR, 130TLR, 130TXR.
*POWERFUL SPECS: This product is a 12-volt tilt & trim motor. It has a reversible rotation and its dimenions are as follows: Replacement Unit:, OD: 3.634in / 92.3mm, Shaft OD: 0.315in / 8mm, Length: 4.425in / 112.4mm. The motor has a Tang shaft and a brief of Yamaha 115-300HP Outboard Motors 1997-18. High quality brushes, bushings and armatures for longer service life
*DB ELECTRICAL: Trusted by mechanics for over 35 years, DB Electrical offers quality parts for automotive, marine, powersports, agricultural, industrial and lawn and garden motors. All parts are proudly backed by a 1-year warranty.
Description
**Verify part fits before purchasing**_x000D_ _x000D_ Specs:_x000D_ _x000D_ Item Condition: Aftermarket Part_x000D_ Unit Type: Tilt & Trim Motor_x000D_ Voltage: 12_x000D_ Rotation: RE_x000D_ Dimension: Replacement Unit:, OD: 3.634in / 92.3mm, Shaft OD: 0.315in / 8mm, Length: 4.425in / 112.4mm, Shaft: Tang,_x000D_ Fits: Yamaha 115-300HP Outboard Motors 1997-18_x000D_ _x000D_ Replaces OEM Numbers:_x000D_ _x000D_ ARCO MARINE 6240_x000D_ ARROWHEAD TRM0069_x000D_ EMP UnitS 4-6783_x000D_ J & N 430-22088_x000D_ LESTER 10817, 10855_x000D_ OMC 5036732_x000D_ QUICKSILVER 8M6007575_x000D_ SIERRA MARINE 18-6783_x000D_ Yamaha 64E-43880-00-00, 64E-43880-01-00, 64E-43880-02-00, 64E-43880-03-00, 67H-43880-00-00, 67H-43880-01-00, 67H-43880-02-00, 67H-43880-03-00, 67H-43880-04-00, 67H-43880-10-00, 68V-43880-00-00, 68V-43880-01-00, 68V-43880-03-00, 68V-43880-04-00_x000D_
