DC Motor 31ZY Permanent Magnetic DC Carbon Brush Motor CW/CCW(#4) for 775 dc motor 12v 1/4 hp electric motor wind turbine small 12v motor 24v dc motor for 6v bldc brushless motor permanent magnet moto

DC Motor 31ZY Permanent Magnetic DC Carbon Brush Motor CW/CCW(#4) for 775 dc motor 12v 1/4 hp electric motor wind turbine small 12v motor 24v dc motor for 6v bldc brushless motor permanent magnet moto

Product Code: MM882
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Material: The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life. for 775 dc motor 12v for 6v bldc

*Material: The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life. for 775 dc motor 12v

*Material: The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life. for brushless motor

*Two directions: This DC motor supports clockwise and counterclockwise rotation. for 1/4 hp electric motor for permanent magnet motor 12v

*Stable performance: This DC motor features large moment of force, and low noise, Stable performance for wind turbine for dc 12v motor

Description

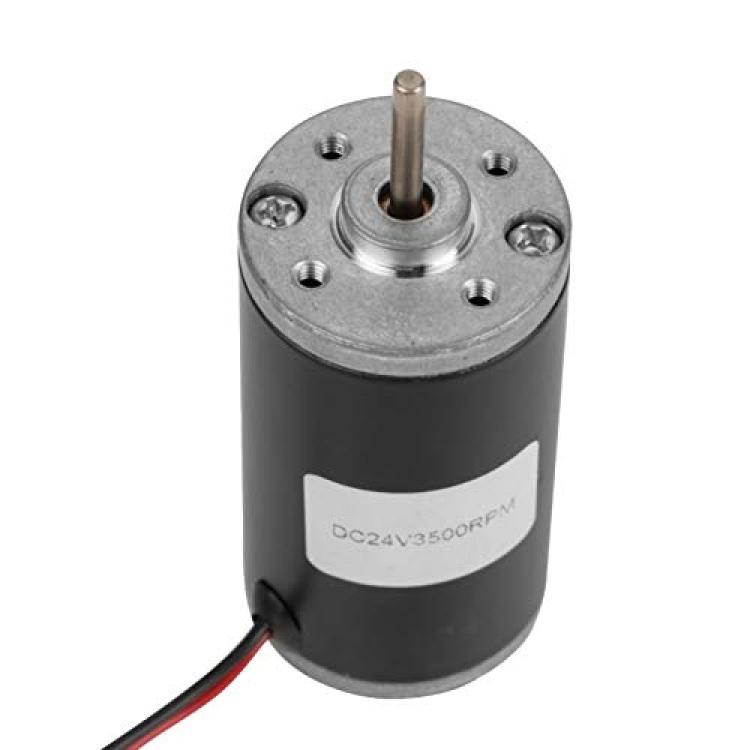

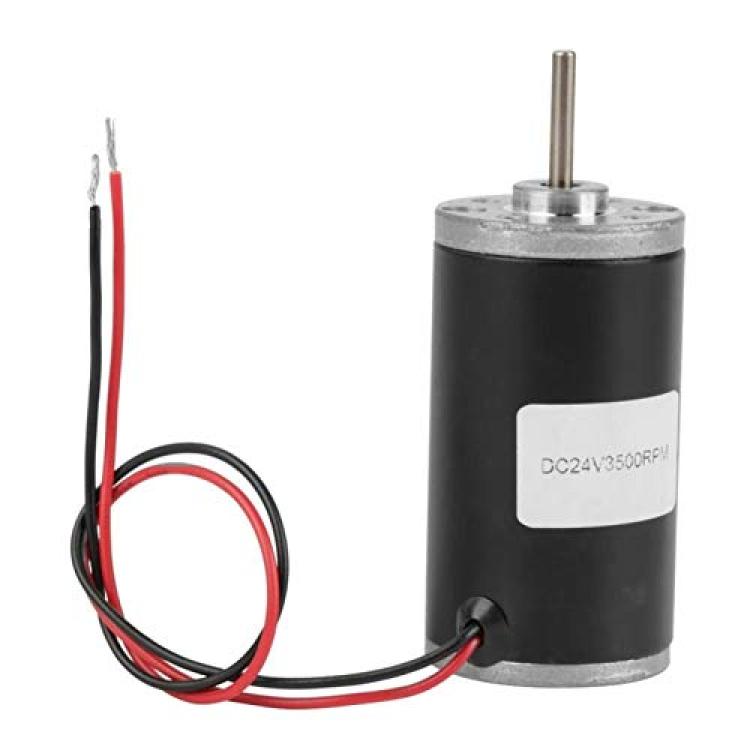

Specifications:
Model: 31ZY
Outer diameter: 31mm / 1.22in
Shaft length: 19mm / 0.75in
Shaft diameter: 3mm / 0.12in
Type(Optional): #1: 6V 4000rpm, #2: 12V 4000rpm,#3: 12V 8000rpm, #4: 24V 3500rpm, #5: 24V 5000rpm, #6: 24V 8000rpm
Weight:165g

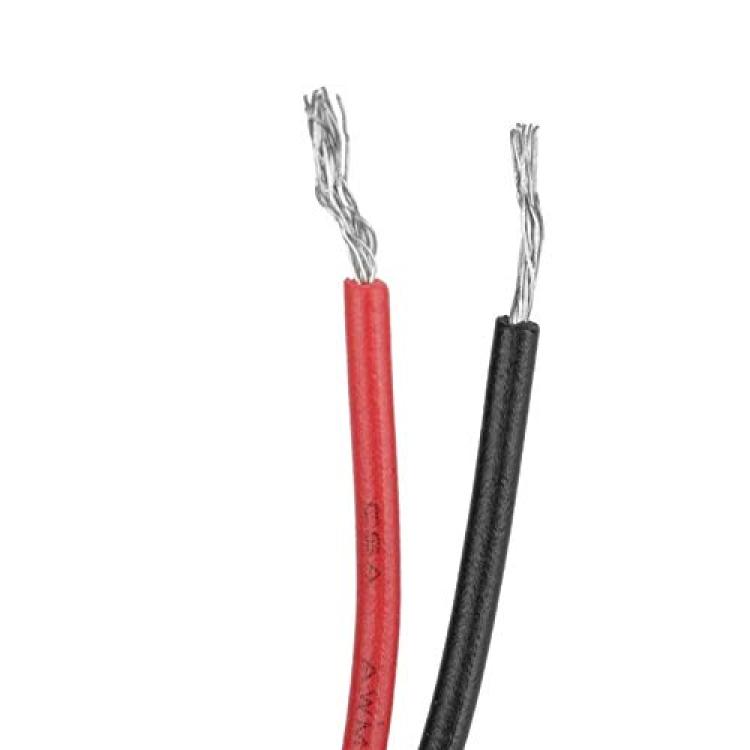

Wiring:
CW: red: "+", black: "-"
CWW: red: "-", black: "+"
No-load current mA?180?350?110?200?200
?41
No-load speedÂ rpm400080004000500080003500
Rated moment of force gf.cm100200100200200150
Rated speed rpm320065003200400066002500
Rated current A?0.8?1.6?0.5?0.6?1.0?0.3
Locked-rotor moment of force gf.cm?500?1000?600?850?1200?400
Locked-rotor current A?3.3?6.5?2.3?2.0?4.4?0.8

Package includes:
1 x Motor
