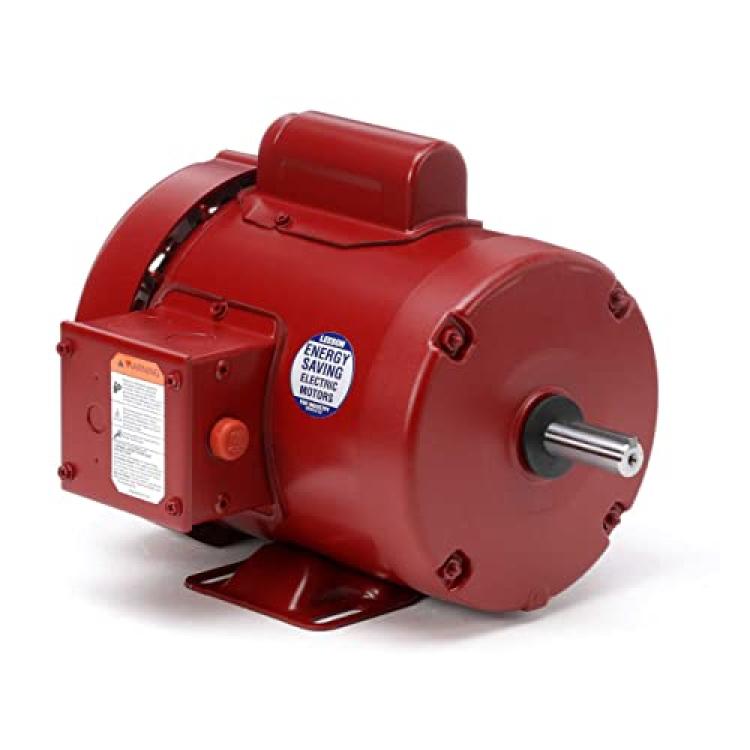

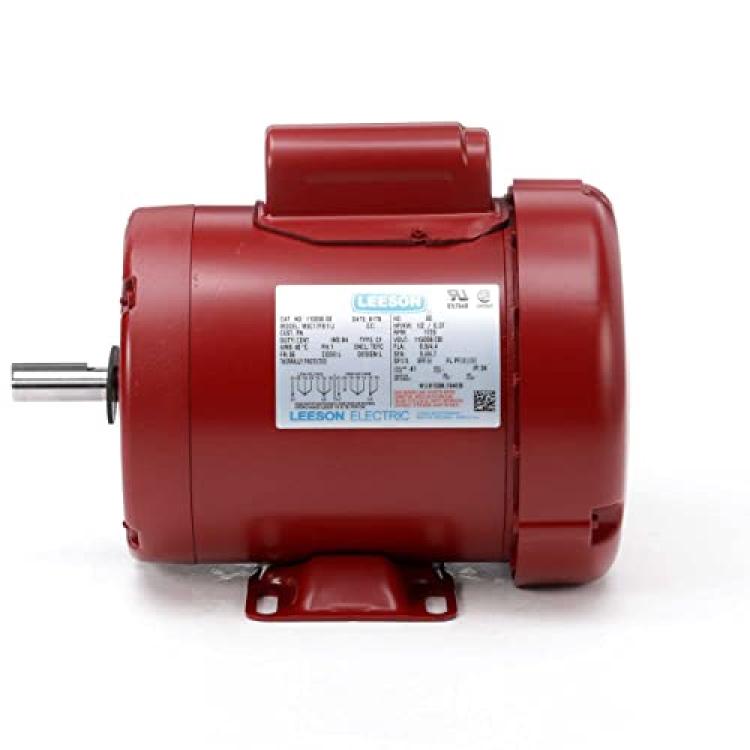

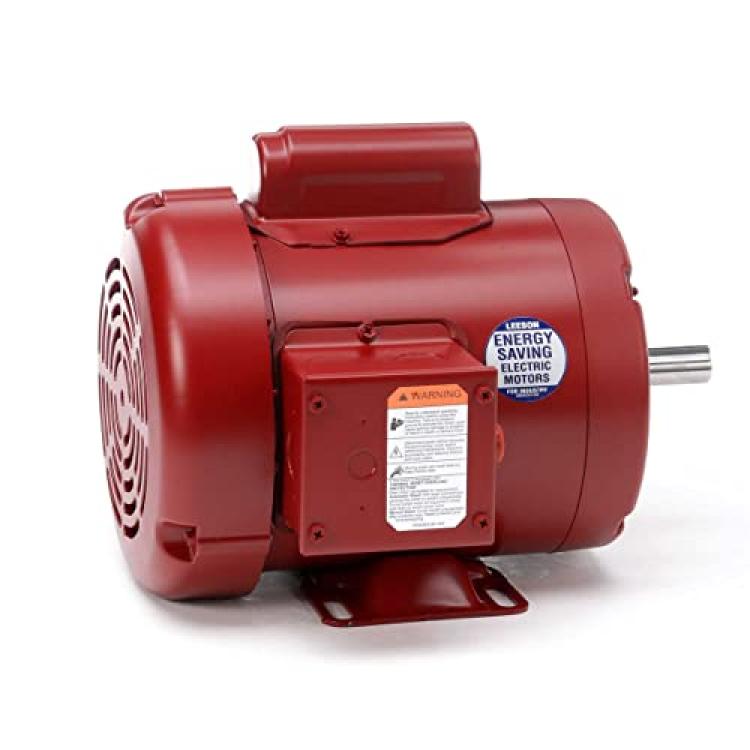

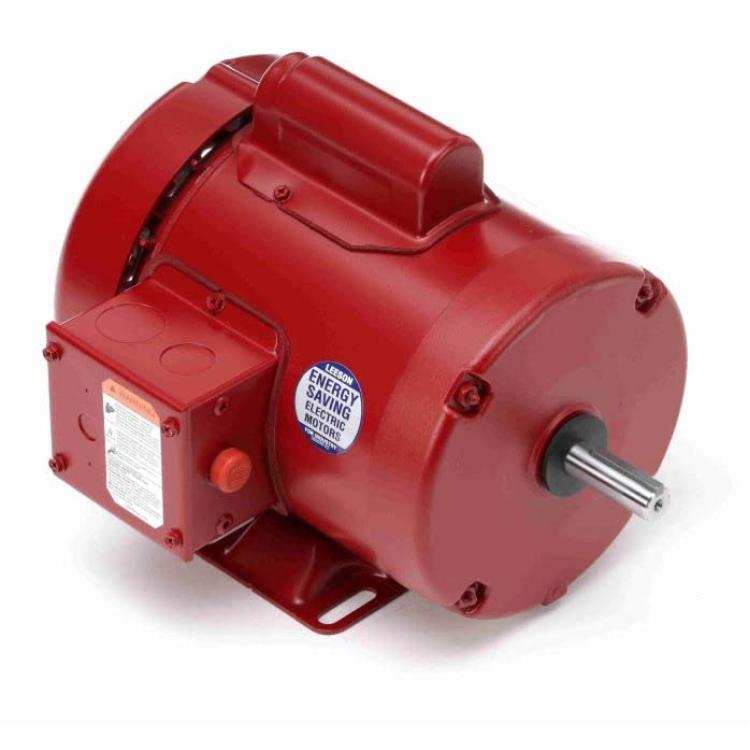

Leeson Farm Duty Electric Motor - 1/2 HP, 1,725 RPM, 115/208-230 Volts, Single Phase, Model Number M6C17FB11

115/208-230V single-phase motor delivers high torque that's ideally suited for use on Farm/Ag equipment such as feeders, conveyors, fans, grain elevators, silo unloaders and other demanding farm duty equipment. For use where exposure to water, dust and dirt exists. U.S.A. Motor Phases Single, Volts 115/208-230, Totally Enclosed Housing Yes, Shank Diameter in. 5/8, HP 1/2, Amps 4.4 @ 230V, Rotation Direction CCW, Rigid Base Yes, Frame Type 56, Capacitor Run No, CSA Yes, Hertz 60, Rated RPM 1,800, Capacitor Start Yes, UL Yes. Gasketed capacitor housing and conduit boxes provide protection in all environments Double sealed ball bearings have operating temperature range of -20F to +350F, and special formulation to provide extra bearing protection and long life Rubber boot over manual protector reset button provides weather protection Low temperature manual overload protector protects against extreme overload Rigid base allows for mounting on equipment Totally enclosed, fan cooled TEFC housing has an external fan to provide cooling by blowing air over the outside frame Reversible rotation direction adds versatility Continuous-duty operation Durable rolled steel construction Capacitor start provides high starting torque with normal starting current Service Factor 1.15 Model Number: 110086. Size: 1. Age Group: Adult.
