DC Motor Speed Controller 12V 36V 48V Slow Start Adjustable Speed Board with Overload Protector Permanent Magnet DC Brushed Motor
Availability: Pre-Order, Inquiry Price
About this product
*STABLE PERFORMANCE: The DC motor speed controller is industrial grade product, which features high stability, can be used for long time
*SIMPLE TO CONDUCT: The motor speed controller switch board has gains barrier terminal block, which make the wire connection easy to conduct
*SLOW START: slow start function will protect the speed controller and the dc motor from instantaneous large current when power on
*LOCKED-ROTOR PROTECTION: PWM controller capable of limiting large current(maximum 30A) caused by locked rotor, instead of cutting off power
*LOW-VOLTAGE PROTECTION: if powered by storage battery, this speed control switch module can protect the battery from damage caused by over discharge
Description
This speed controller for permanent magnet DC Motor is industrial product with high stability. It's the combination of speed controller and overload protector. With the slow start function, it will help a lot in protecting the speed controller and motor from instantaneous large current. With locked-rotor protection function, it is capable of limiting large current caused by locked rotor, rather than cutting off power. It's also upgraded with low-voltage protection. All in all, this is a well-designed product with customers in mind, and it's multi-functional and durable.
Â
Specifications:
Input Voltage: DC10V-55V
Output Voltage: Linear with load
Output Current: 0A-40A
Limit Current: 30A
Speed Range: 0% to 100%
Regulation Method: Potentiometer(Linear, 270°)
Control Frequency: 15KHz
Wiring Type: Screw terminal

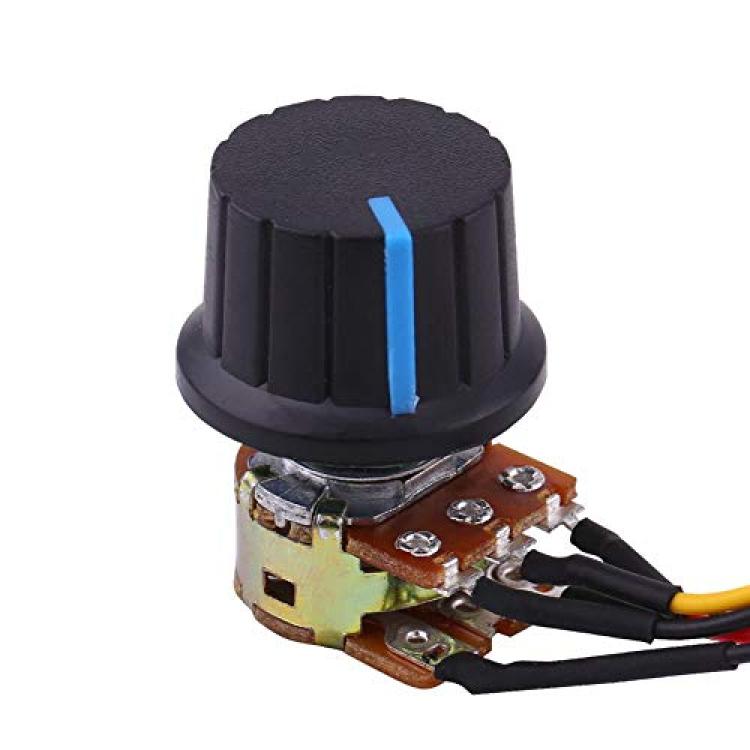

Rotary Knob: 10K(with switch)

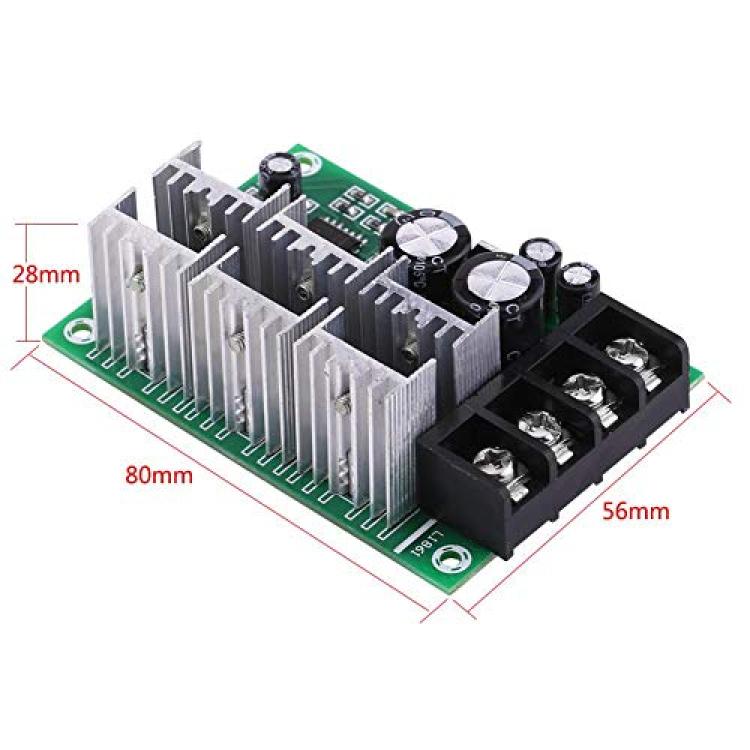

Size: 80 x 56 x 28mm / 3.15 x 2.2 x 1.1"
Â
Package Includes:
1 x Speed Controller
