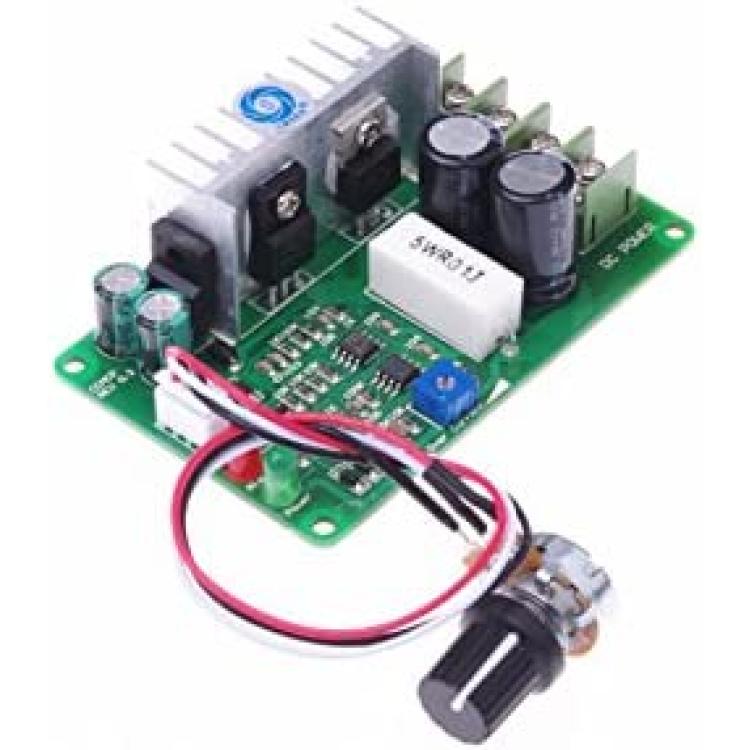

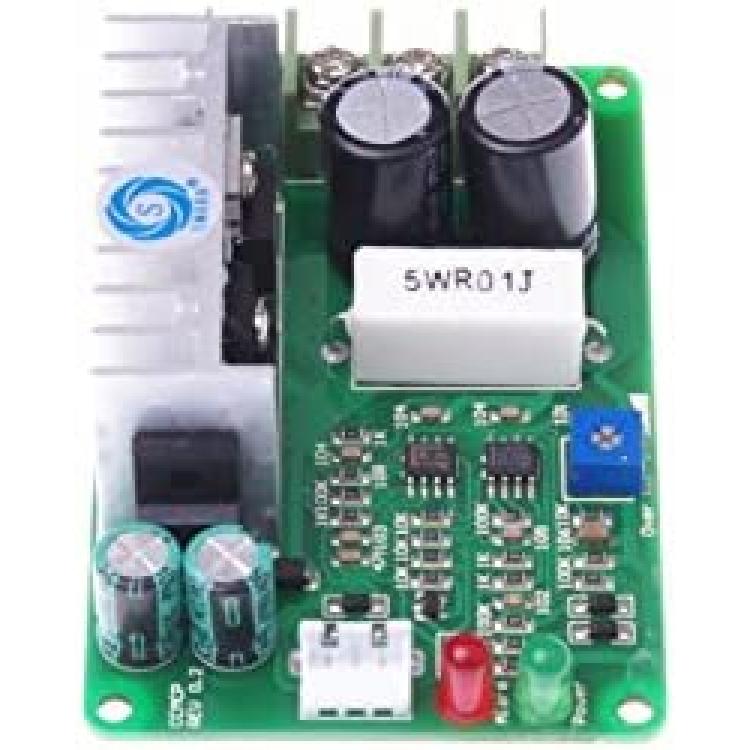

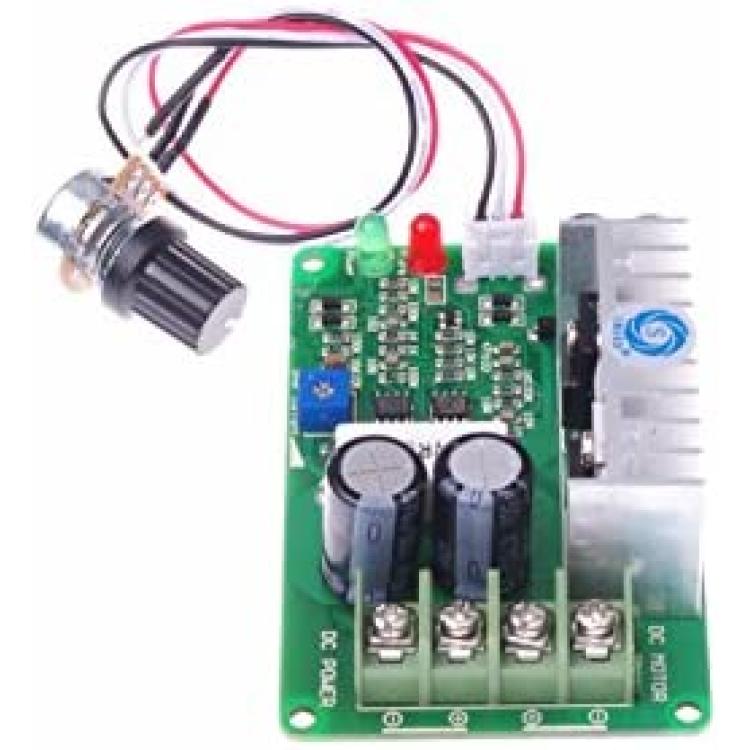

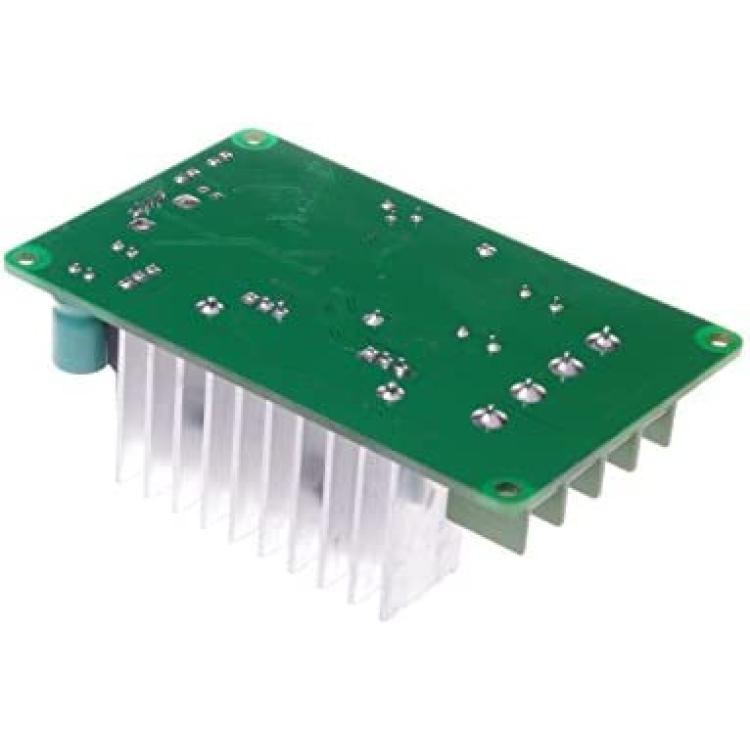

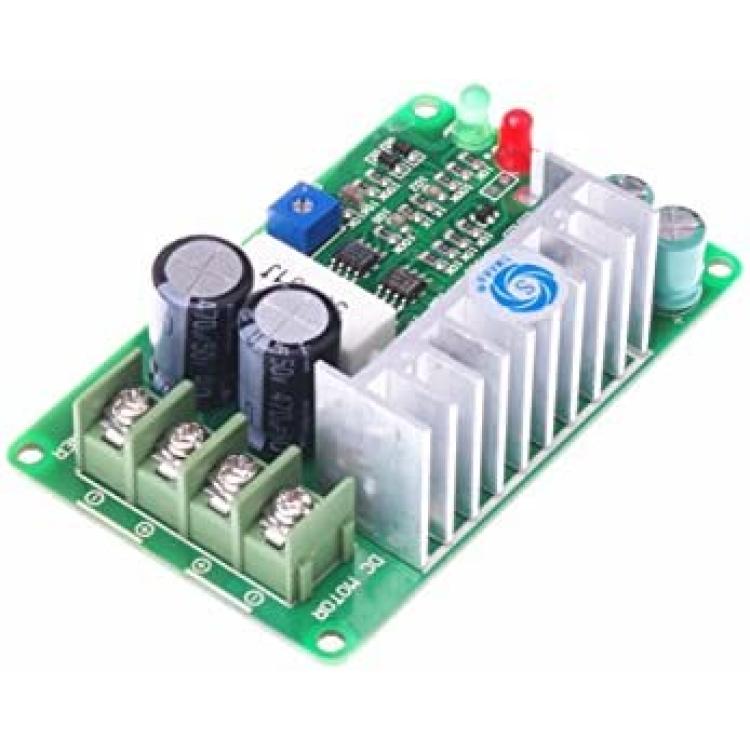

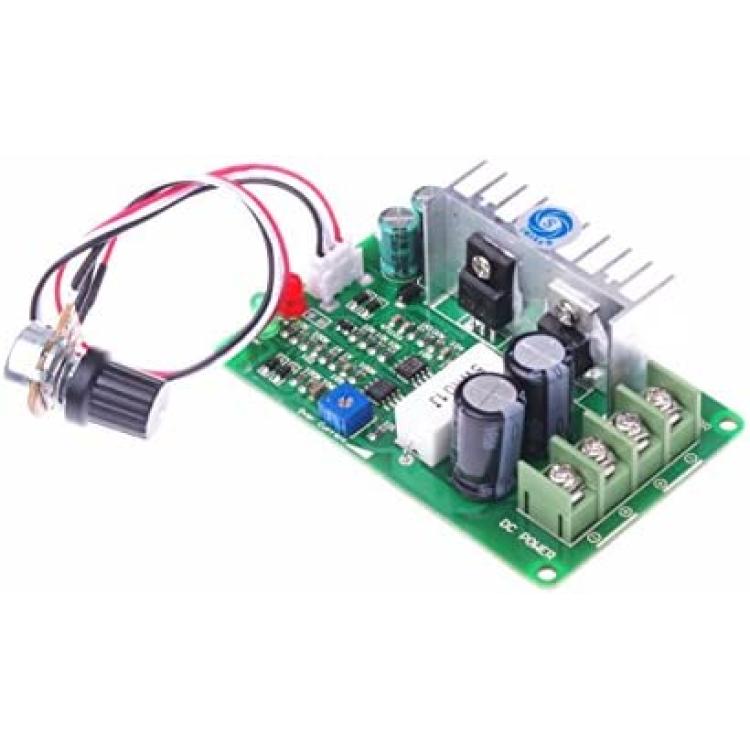

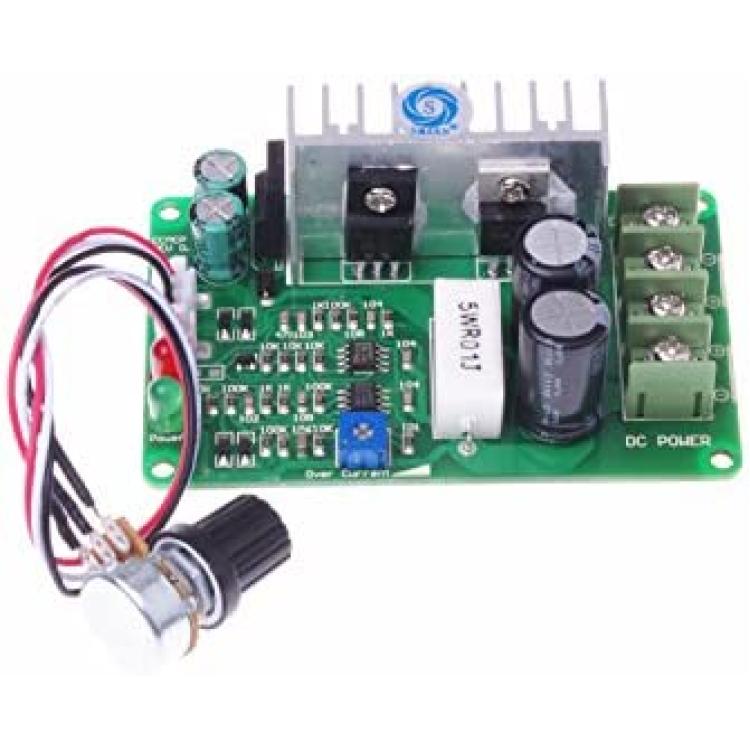

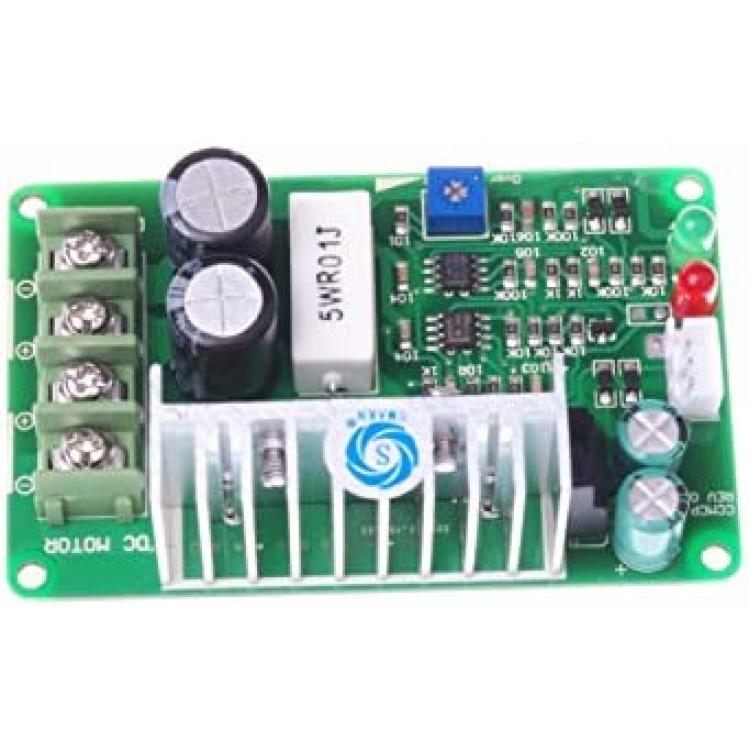

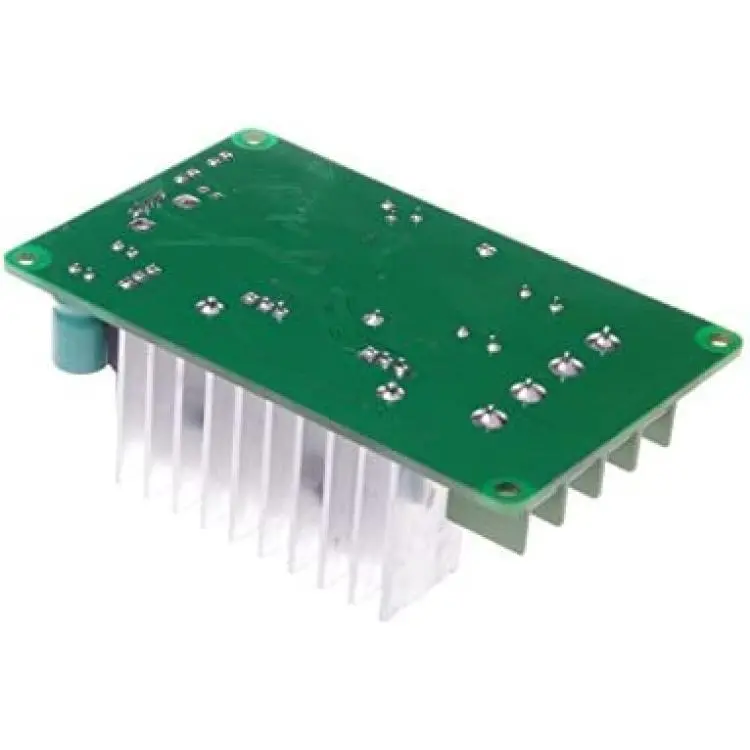

SMAKN CCMHCW PWM DC Motor Speed Controller Adjustable Current Overload Protector 12V 24V 36V 15A

*Model: CCMCP
*Operating voltage: DC10V-40V
*Speed range: 0% -100%
*PWM Frequency: 21kHz
*Size: 85.5mm*54mm*27mm
*Net Weight:68g
*Current Rating: 10A (limiting the scope of protection 1A-10A)
*Maximum current: 15A
*Potentiometer: Resistance B100K; line length: 20cm; hole: 8mm.
*The output voltage is the input voltage of about 0-100%
*CCMCP Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
*Provide smooth variable speed capability for DC motor.
*Adjustable current limit. Current limit can be adjustable 1A to 10A.
*Include Power-on LED and current-limit-protected alarm LED.
Notes and use:
*DC motor speed controller input is DC, not directly connected to AC power, otherwise it will burn.
*You can not reverse the positive and negative DC power supply, otherwise it will damage the governor.
*Motors, regardless of positive and negative, when the running direction is inconsistent with the expectations, the direction can be changed by adjusting the order.
*Adjusting potentiometer knob to change the converter output duty cycle, thus changing the motor speed.
