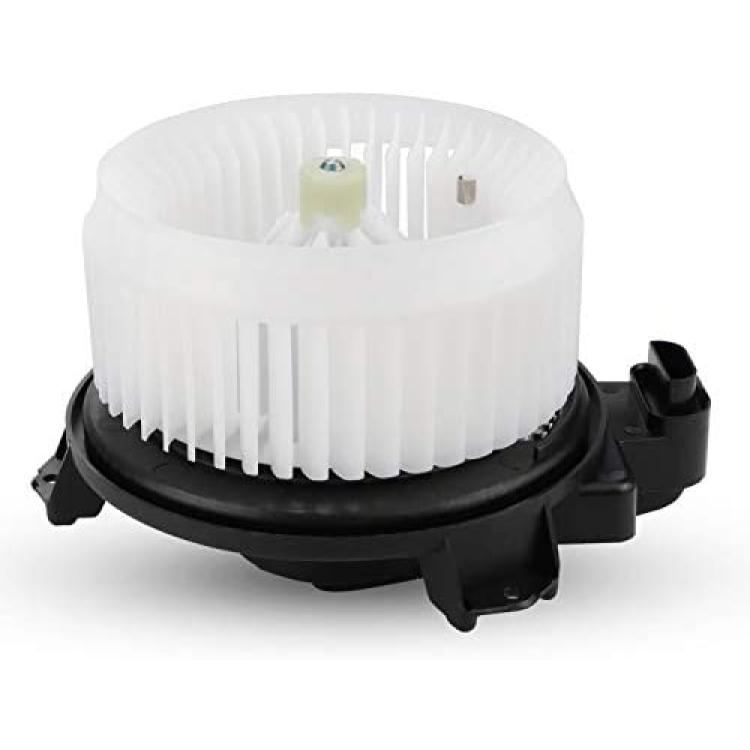

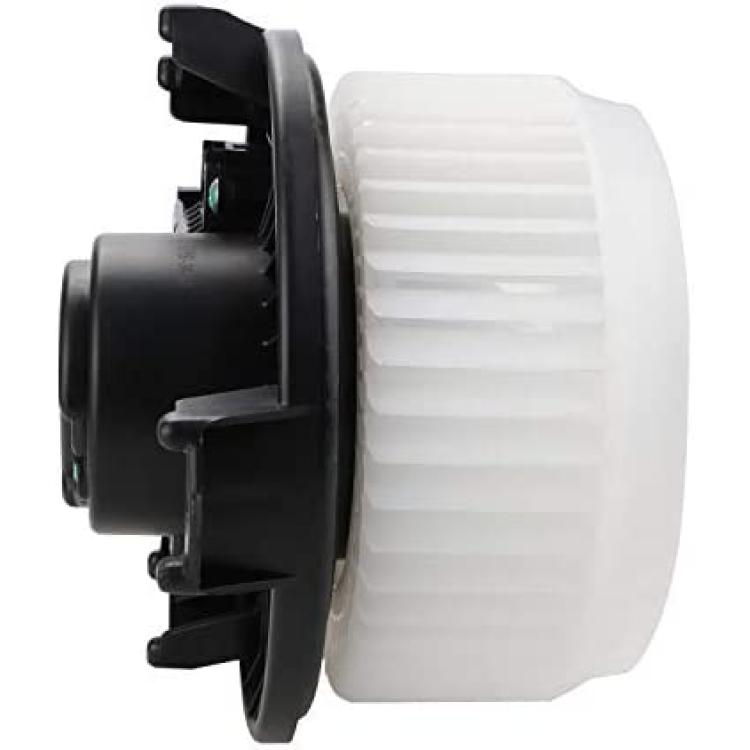

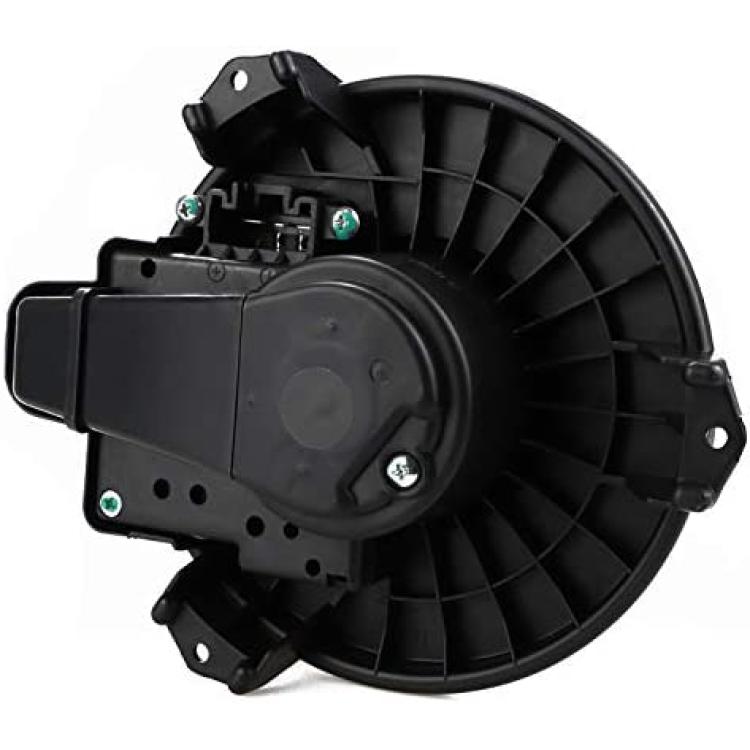

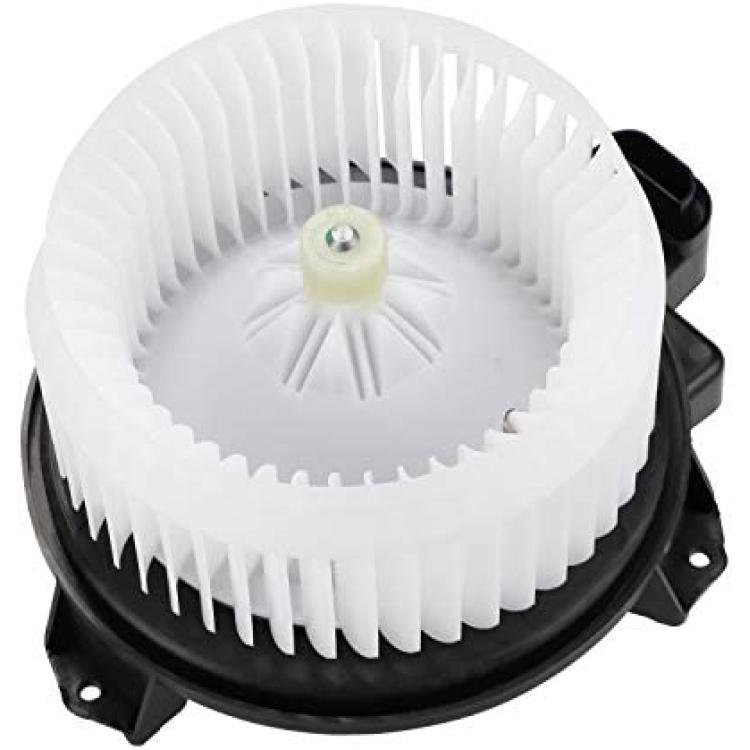

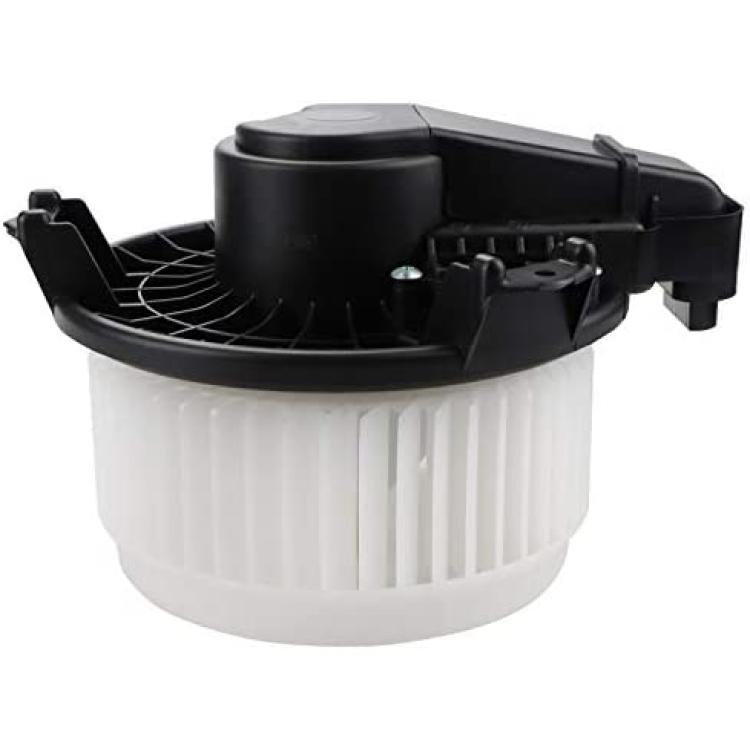

HVAC Blower Motor Assembly 87103-02260 87103-02210 8710302210 700249 PM4031 668-TYB027 MOT123 75839 Heater Blower Motor with Fan Cage for 2009-2017 Toyota Corolla; 2010-2016 Toyota Prius, Prius V

FITMENT:

* 2009-2017 Corolla l4 1.8L Sedan
* 2009-2013 Corolla l4 2.4L Sedan
* 2010-2016 Prius l4 1.8L Hatchback
* 2012-2016 Prius V l4 1.8L Wagon



Replaces Part Numbers:

* 87103-02260
* 87103-02210
* 8710302260
* 8710302210
* 700249
* PM4031
* 668-TYB027
* MOT123
* 75839



How to replace with new HVAC blower motor?

* 1 Always wear eye protection and start with installation tools.
* 2 Locate the HVAC blower motor under the passenger side dash. Removing the dash may be necessary to access the blower motor on some vehicles. (Note: On older vehicles, the blower motor may be * located in
the engine compartment on the passenger side firewall.)
* 3 Disconnect the blower motor electrical connector.
* 4 Remove the retaining screws to the blower motor assembly.
* 5 Remove the box and blower motor assembly.
* 6 Remove the blower motor retaining screws. Remove the motor from the box.
* 7 Compare the new blower motor to the old one to verify that you have the correct part. Install the new motor into the box and tighten the retaining screws. Re-install the blower motor assembly.
* 8 Connect the blower motor electrical connector.
* 9 Operate the heating and A/C system. Verify that the blower motor operates at all speeds and that the system produces hot and cold air.
* 10 Searching related installation video on the internet will be also recommended.
