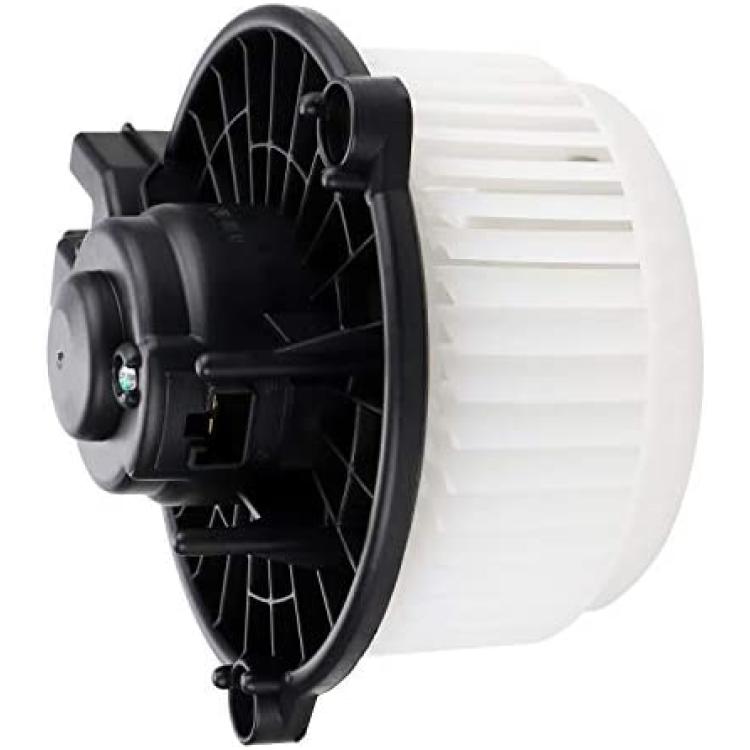

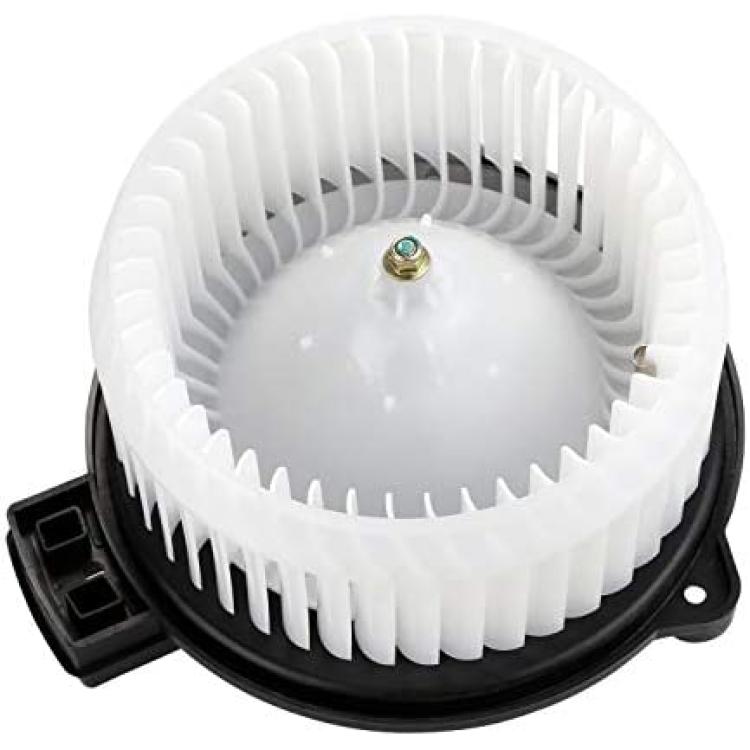

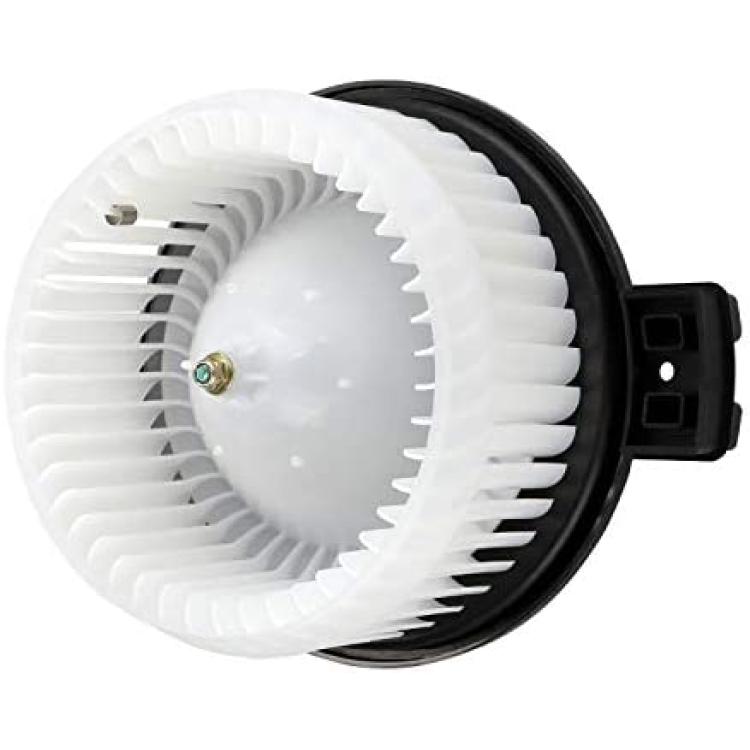

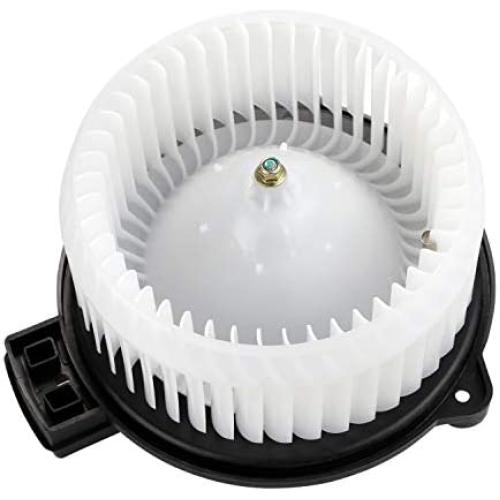

HVAC Blower Motor Assembly 700247 79310TF0G01 615-50209 Heater Blower Motor with Fan Cage for 2009-2014 FIT

FITMENT:

* 2009-2014 FIT



Replaces Part Numbers:

* 700247
* 79310TF0G01
* 615-50209



How to replace with new HVAC blower motor?

* 1 Always wear eye protection and start with installation tools.
* 2 Locate the HVAC blower motor under the passenger side dash. Removing the dash may be necessary to access the blower motor on some vehicles. (Note: On older vehicles, the blower motor may be * located in the
engine compartment on the passenger side firewall.)
* 3 Disconnect the blower motor electrical connector.
* 4 Remove the retaining screws to the blower motor assembly.
* 5 Remove the box and blower motor assembly.
* 6 Remove the blower motor retaining screws. Remove the motor from the box.
* 7 Compare the new blower motor to the old one to verify that you have the correct part. Install the new motor into the box and tighten the retaining screws. Re-install the blower motor assembly.
* 8 Connect the blower motor electrical connector.
* 9 Operate the heating and A/C system. Verify that the blower motor operates at all speeds and that the system produces hot and cold air.
* 10 Searching related installation video on the internet will be also recommended.
