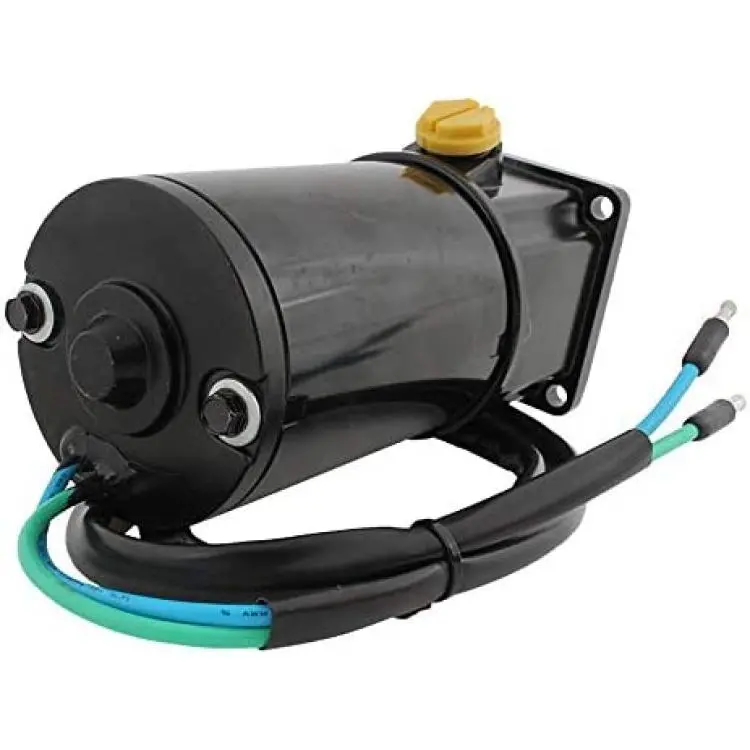

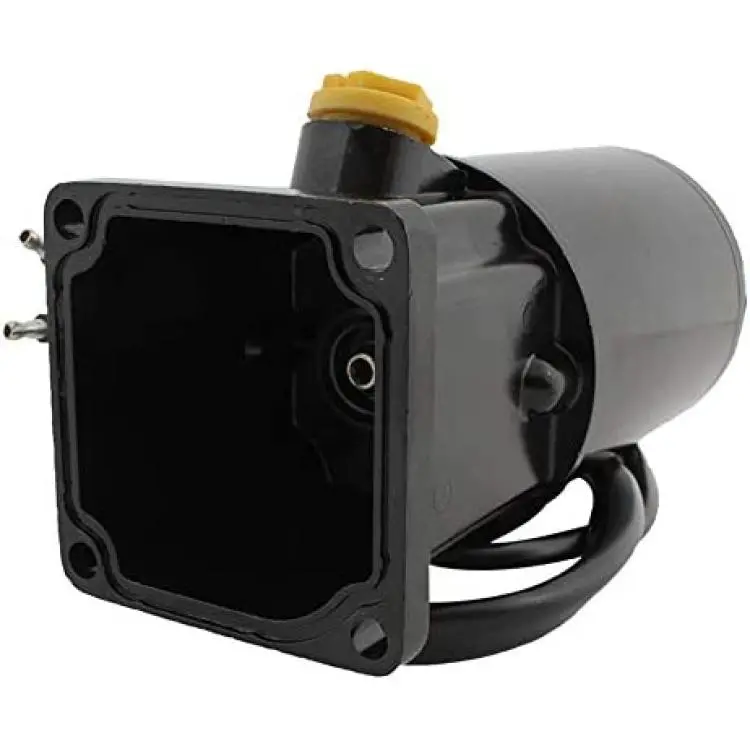

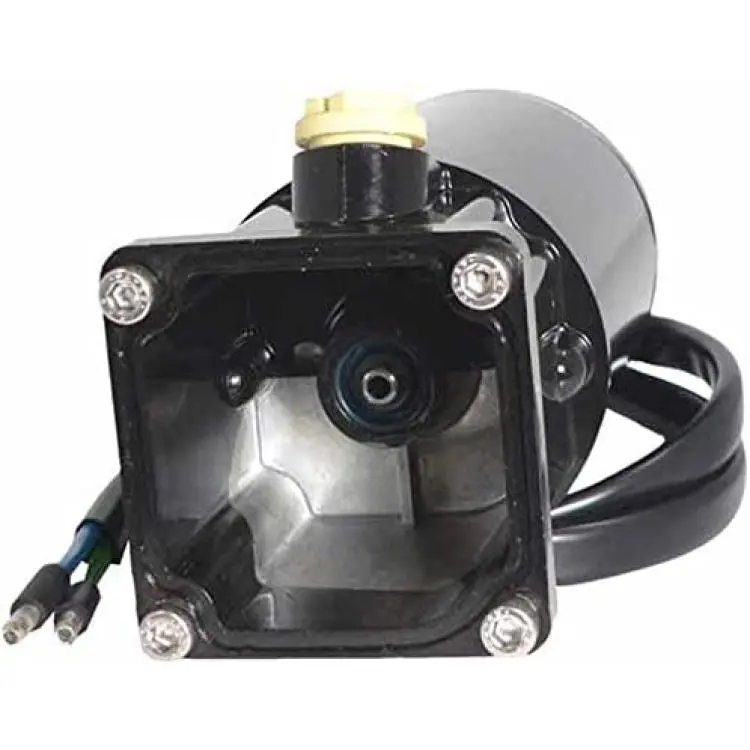

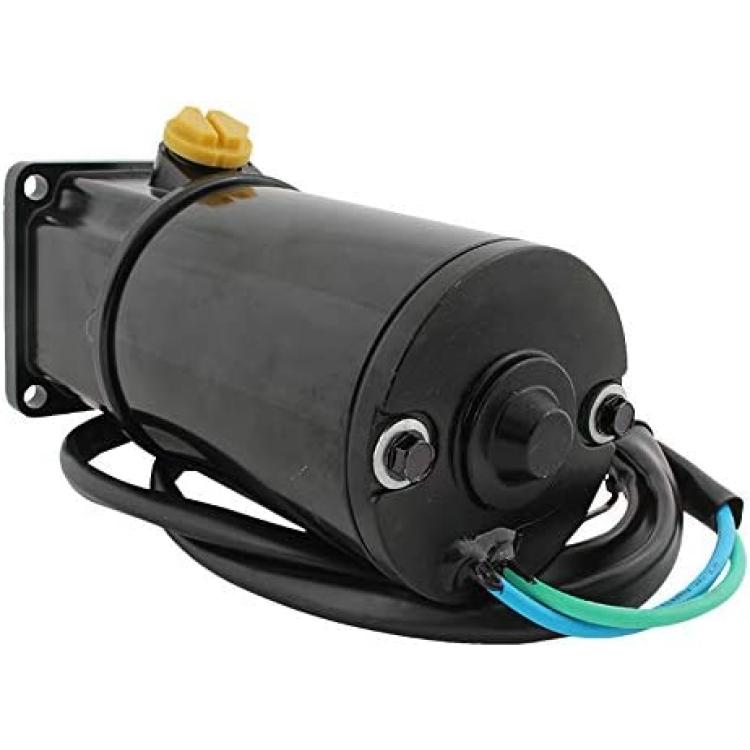

DB Electrical TRM0047 Tilt Trim Motor Compatible with/Replacement for Mercury Mariner 50-125Hp 809885A1 PT497NK 6276 4-6777 430-22008 10850 811699 813447 819479A1 819480A1
About this product
* Marine grade that meets SAE J1171 and ISO8847
* High quality brushes, bushings and armatures for longer service life
* Includes a harness, relays and heavy duty valves where applicable
* True-fit design ensures perfect fitment with every installation
Description
Power Trim Motor and Resevoir for Mercury & Mariner Outboards
Specifications:
Voltage:12 Volts
Rotation:Reversible
Field Hsg OD:72.8mm / 2.866in
Overall Length:175mm / 6.890in
Shaft Notes:Hollow Hex Shaft
Approximate Weight:4.72 lbs / 2.15 kg
Notes:

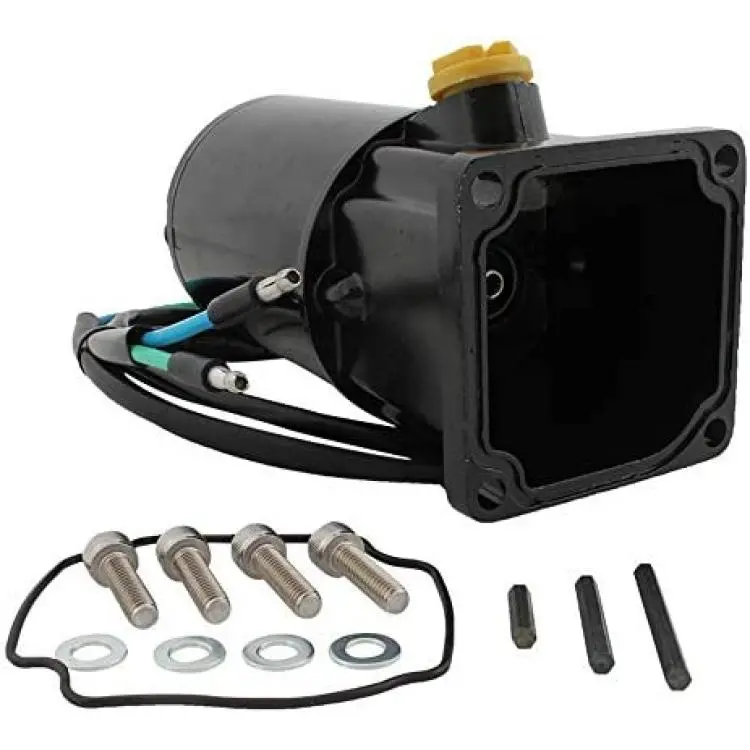

2-Wire Connection Includes (2) 3-1/2 Foot Wire Harness With Bullet Connectors and Hardware Kit With O-ring
Applications:
Force MarineTilt & Trim All Models 50-125 H.P.
Mercury MarineTilt & Trim All Models 50-125 H.P.
Replaces these part numbers:
API Marine PT496NK-2
Arco Marine6276
Lester10827
Mercury Marine809885A1, 809885A2, 809885T2, 811674, 813447, 831447, 819479A1, 819480A1, 885654T1, 885654T2
Sierra Marine18-6777
Spider MarineTM10827
