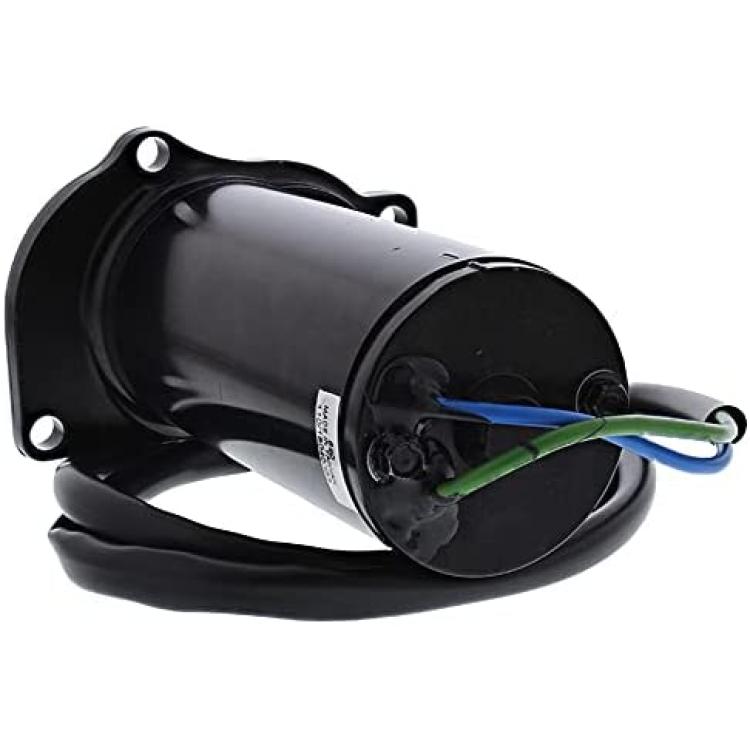

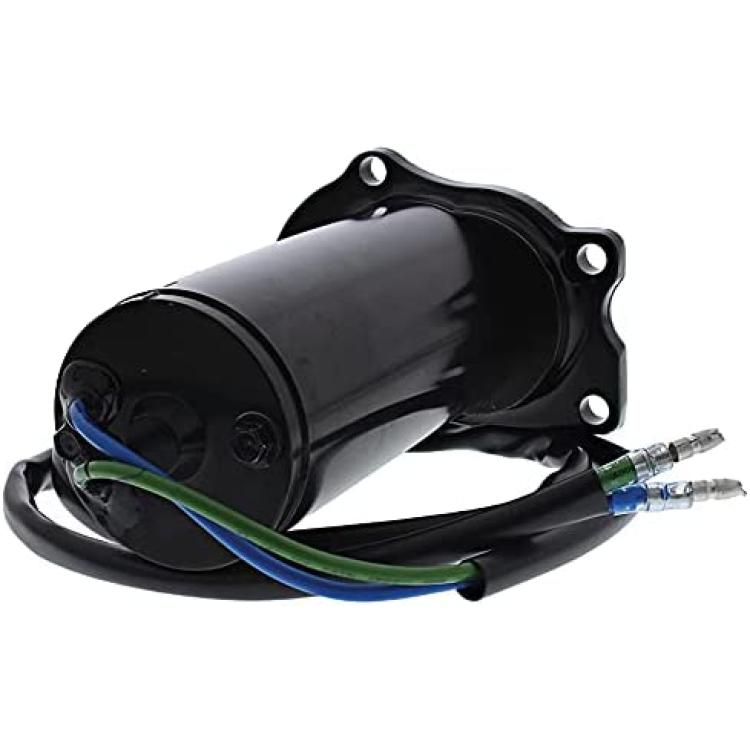

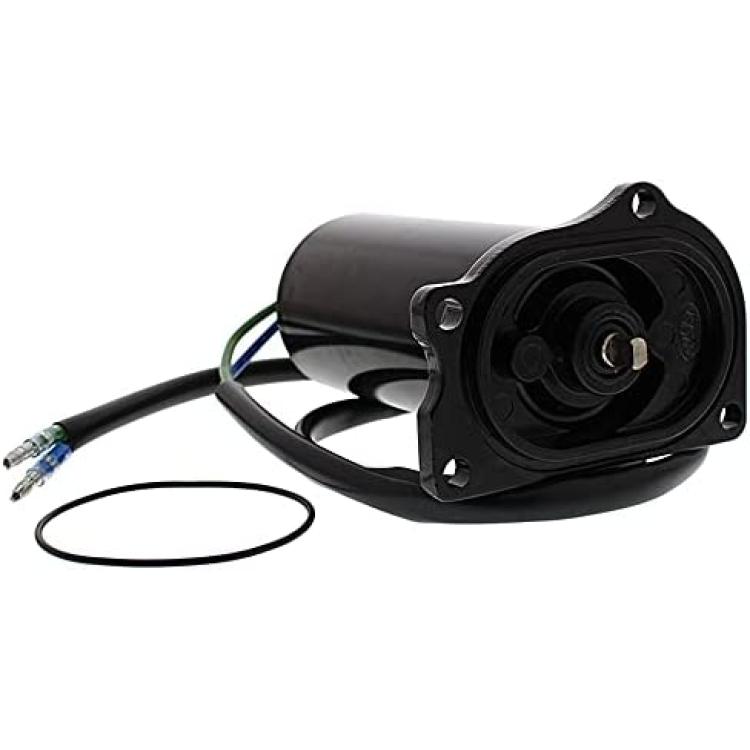

DB Electrical TRM0048 Tilt Trim Motor Compatible with/Replacement for Mercury Outboard 25-50 HP /827675A1 /18-6286 /PH200-T002 /PT498NM

**Verify the part fits before purchasing**

Specs:

Unit Type: Tilt & Trim Motor
Voltage: 12
Rotation: RE
Dimension: Replacement Unit:, OD: 2.047in / 52mm, Shaft OD: 0.283in / 7.2mm, Length: 5.276in / 134mm, Terminal Size (2): Crimp, Shaft: 3.8mm Slotted, Note: (4) 6.7mm ID Unthreaded Mounting Holes,
Brief: Mercury / Mariner 25-50HP

Replaces OEM Numbers:

API MARINE: PT498NM
ARCO MARINE: 6255
ARROWHEAD: TRM0048
EMP UnitS: 4-6286
J & N: 430-22034
LESTER: 10828
Mercury MARINE: 827675A1
PROTORQUE: PH200-T002
SIERRA MARINE: 18-6286
WAI: 10828N

Compatible With/Replacement For:

FORCE 40EL 1995-1999, 40ELPT 1995-1999, 50EL 1995-1999, 50ELPT 1995-1999

MERCURY MARINE 25.0HP - SN 0G590000 Thru 0G760299 All, 25.0HP - SN 0G760300 Thru 0T408999 All, 25.0HP - SN 0T409000 Thru 1B344298 All, 30.0HP - SN 0G055314 Thru 0G760299 All, 30.0HP - SN 0G760300 Thru 0T979999 All, 30.0HP - SN 0T980000 Thru 0T999999 All, 30.0HP - SN 1B000001 & Up All, 30.0HP / Jet - SN 0G590000 Thru 0G760299 All, 30.0HP / Jet - SN 0G760300 Thru 0T408999 All, 40.0HP - SN 0G231123 Thru 0G760299 All, 40.0HP / 2cyl - SN 0G055314 Thru 0G760299 All, 40.0HP / 2cyl - SN 0G760300 Thru 0T979999 All, 40.0HP / 2cyl - SN 0T980000 Thru 0T999999 All, 40.0HP / 2cyl - SN 1B000001 & Up All, 40.0HP / 3cyl - SN 0G590000 Thru 0G760299 All, 40.0HP / 3cyl - SN 0G760300 Thru 0T979999 All, 40.0HP / 3cyl - SN 0T980000 Thru 1B209735 All, 45.0HP Bodensee - SN 0G231123 Thru 0G760299 All, 50.0HP - SN 0G231123 Thru 0G760299 All, 50.0HP / 3cyl - SN 0G590000 Thru 0G760299 All, 50.0HP / 3cyl - SN 0G760300 Thru 0T979999 All, 50.0HP / 3cyl - SN 1B000001 & Up All, 55.0HP / 3cyl - SN 0G590000 Thru 0G760299 All, 55.0HP / 3cyl - SN 0G760300 Thru 0T979999 All, 60.0HP / 3cyl - SN 0G590000 Thru 0G760299 All, 60.0HP / Bigfoot / 3cyl - SN 0G590000 Thru 0G760299 All, All Models All
