BOJACK 12.5 uF ±6% 12.5 MFD 370V/440V CBB65 Oval Run Start Capacitor for AC Motor Run or Fan Start and Cool or Heat Pump Air Conditione
Availability: Pre-Order, Inquiry Price
About this product

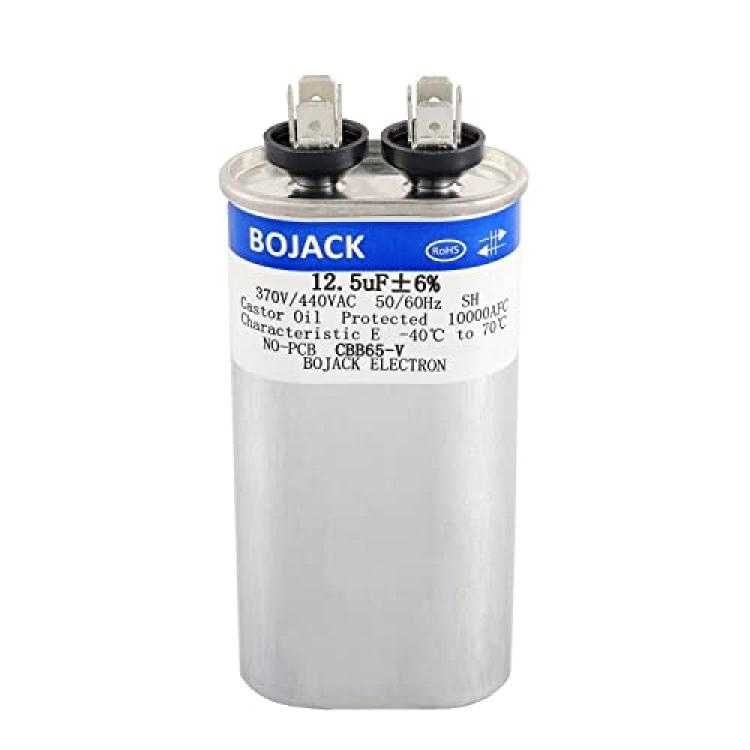

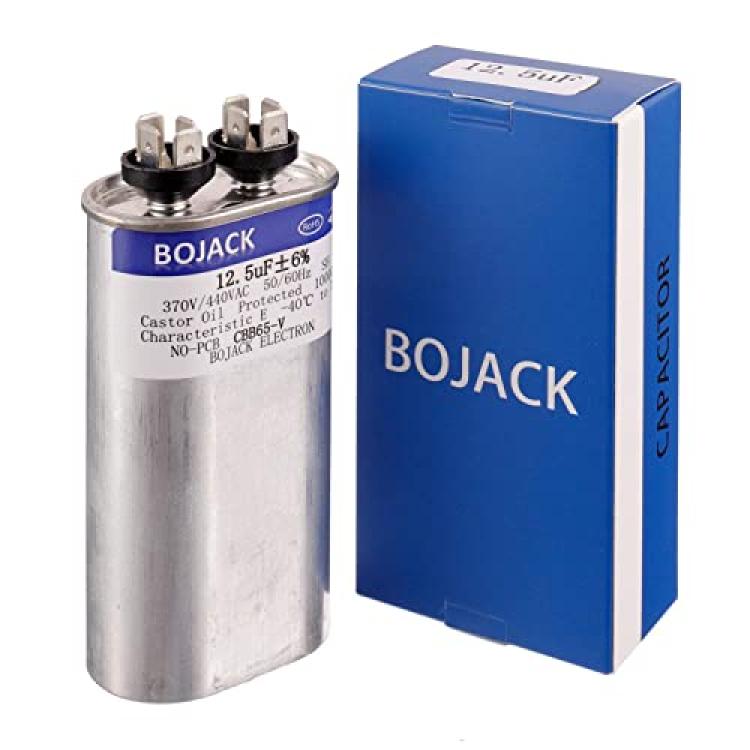

*BOJACK 12.5 uf MFD 370V/440VAC Oval Run Start Capacitor
*Operating Temperature Range -40 ℃ to +70 ℃/ -104℉ to +158℉
*This Capacitor Will Run Compressor And Fan Motor
*UL Recognized(E187356),Engineered For Safety 10 000 AFC Anti Explosion Pressure Switch
*Replacement for :97F9003 , Z97F9003 , 27L572 , P2911253 ,P291-1253 , C312L , HCKS125V440Z , TP-CAP-12.5/440
Description
BOJACK 12.5 uF 370V/440V CBB65 Oval Run start capacitor
Model: CBB65?Universal model?
Shell material: Case Material Aluminum, Cover Material Steel
Dielectric Material: metallized polypropylene film
Capacity: 12.5 uf
Tolerance: ±6%
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Length<2.02 inch>,Wide<1.23 inch> Height <4.53 inch>
Operating temperature: -40 ? to +70?/-104?to+158?
This capacitor is used for a compressor motor and a fan motor
start-up and operation of AC motors with frequency of 50Hz/60Hz
such as Industrial Grade Replacement forCentral Air-Conditioners,
Heat Pumps, Condenser Fan Motors, and Compressors.It is small
in size, lightweight, heat resisting and anti-explosion.
Oval run capacitor can be used to substitute round shape one with the
same MFD and volt specs.A 440 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 can’t be used in place
of a 440 volt.
