BOJACK 55+7.5 uF 55/7.5 MFD ±6% 370/440 V AC CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight Cool or Heat Pump Air Conditioner
Availability: Pre-Order, Inquiry Price
About this product

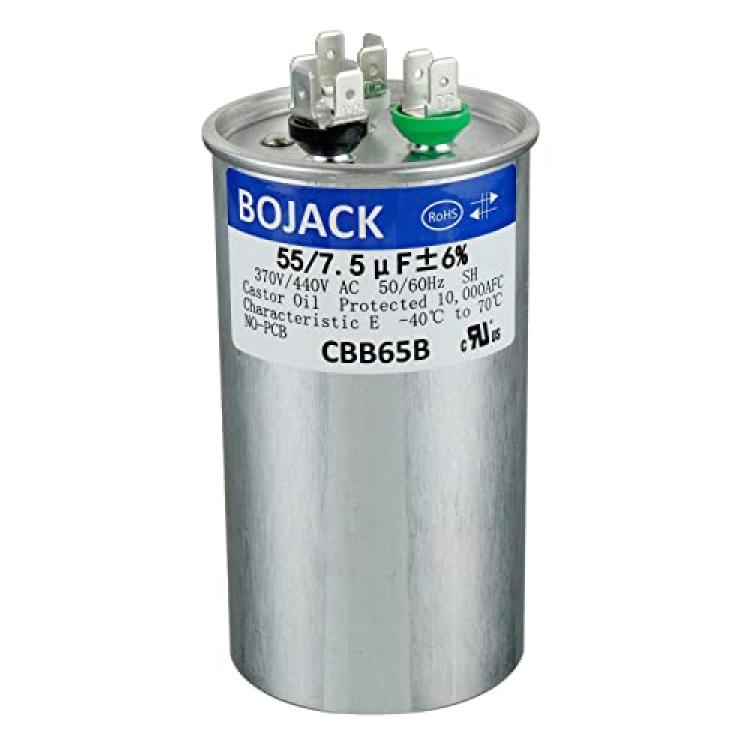

*BOJACK 55+7.5uF ±6% 370V/440V CBB65 Dual run circular start capacitor

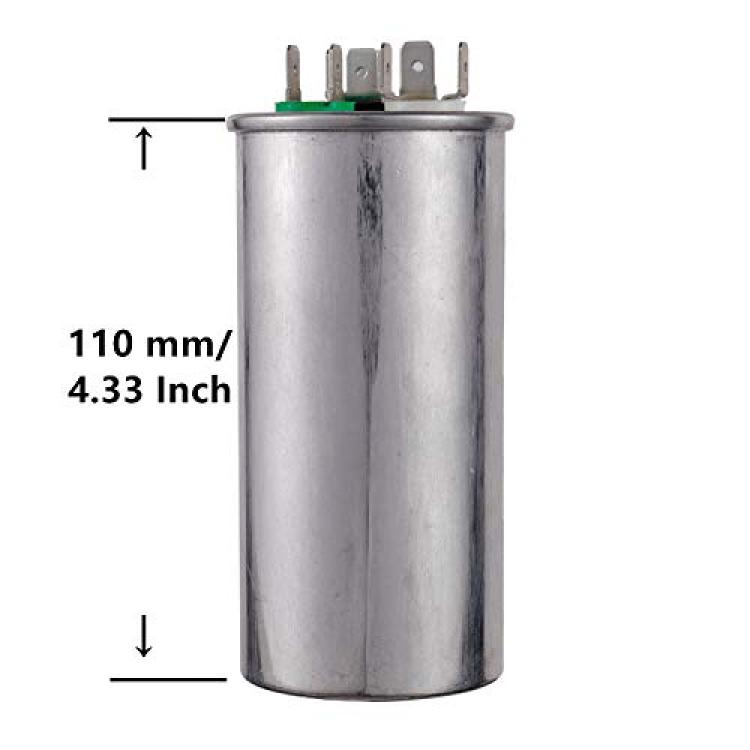

*Capacitor dimension: Diameter-2.502 inch,Height-3.94 inch
*Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
*Safety rated: 10,000 AFC

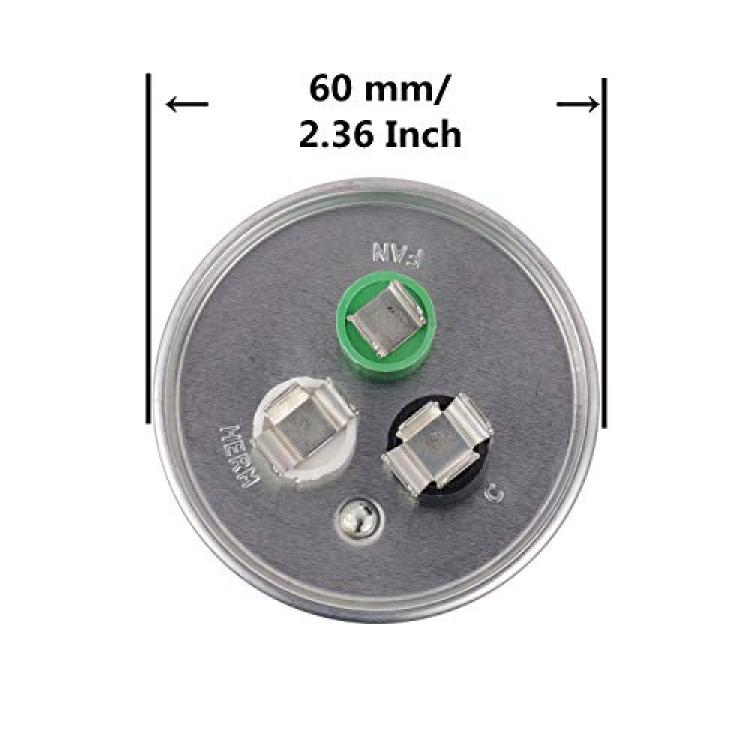

*Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
Description
BOJACK Dual run circular start capacitor
Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor
Model: CBB65?Universal model?
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 55+7.5uf
Tolerance: ±6%
Rated voltage: 370V/440 V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Operating temperature: -40 ? to +70?/-104?to+158?
This capacitor is used for start-up and operation of AC motors with
frequency of 50Hz/60Hz such as Industrial Grade Replacement for
Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and
Compressors.It is small in size, lightweight, heat resisting and anti-explosion.
Round capacitor can be used to substitute oval shape one with the
same MFD AND Volt specs.A 440 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 can’t be used in place
of a 440 volt.
