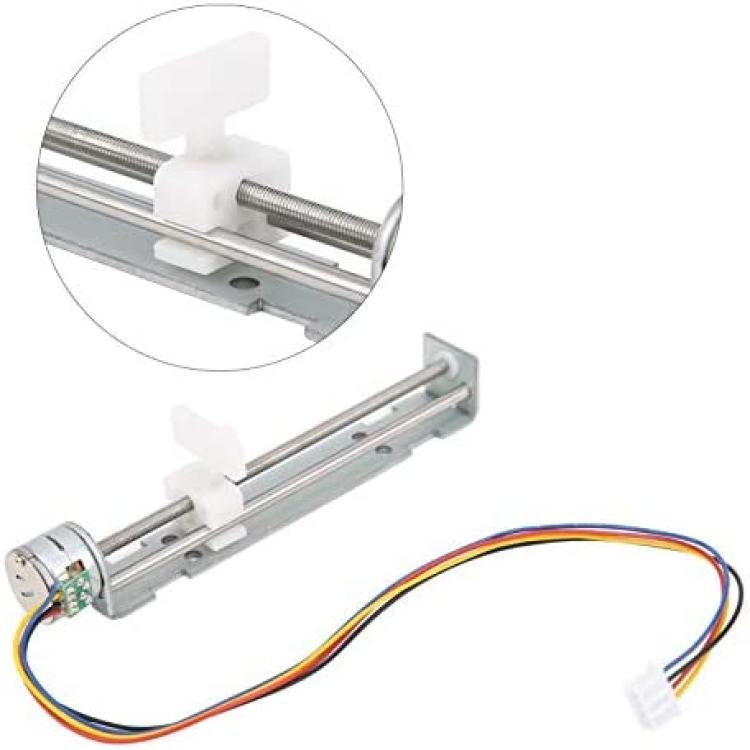

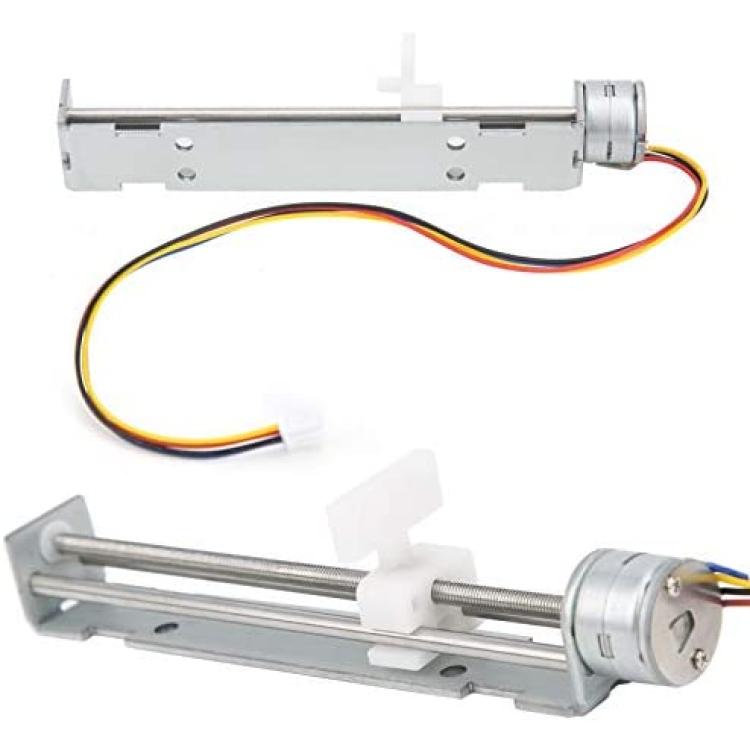

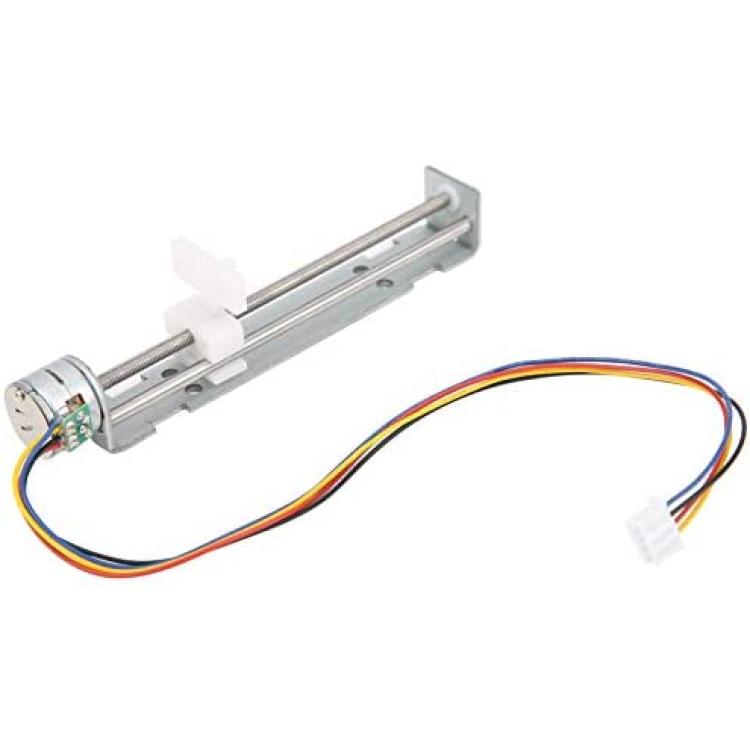

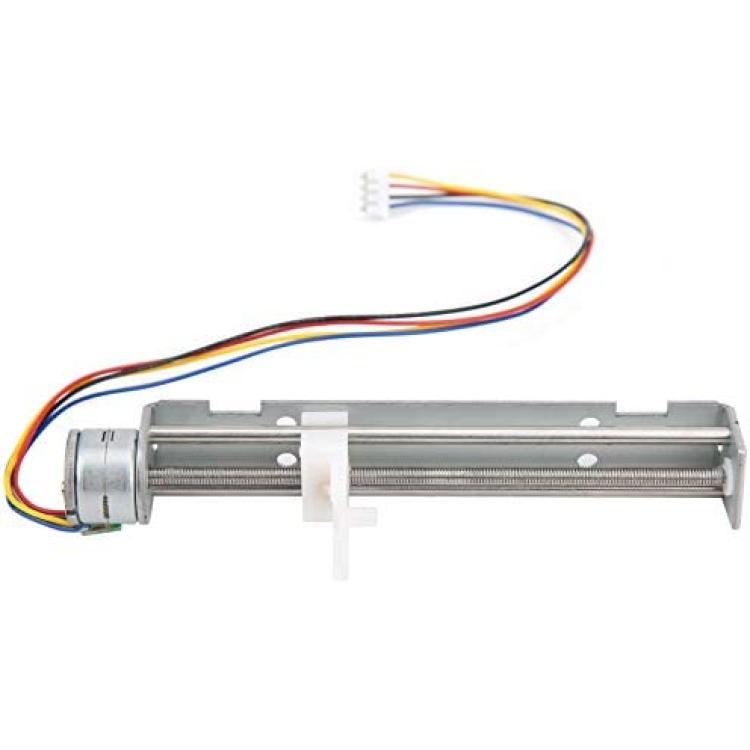

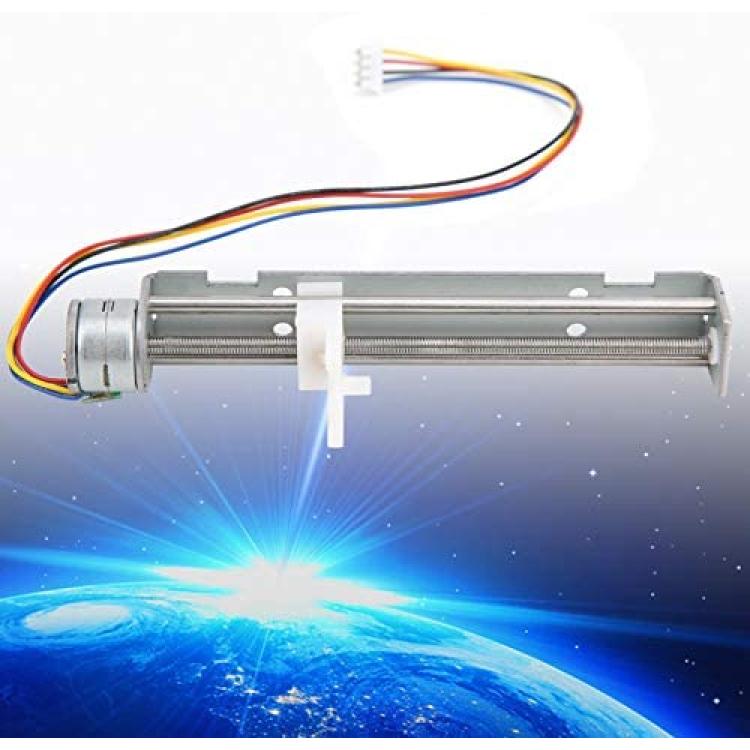

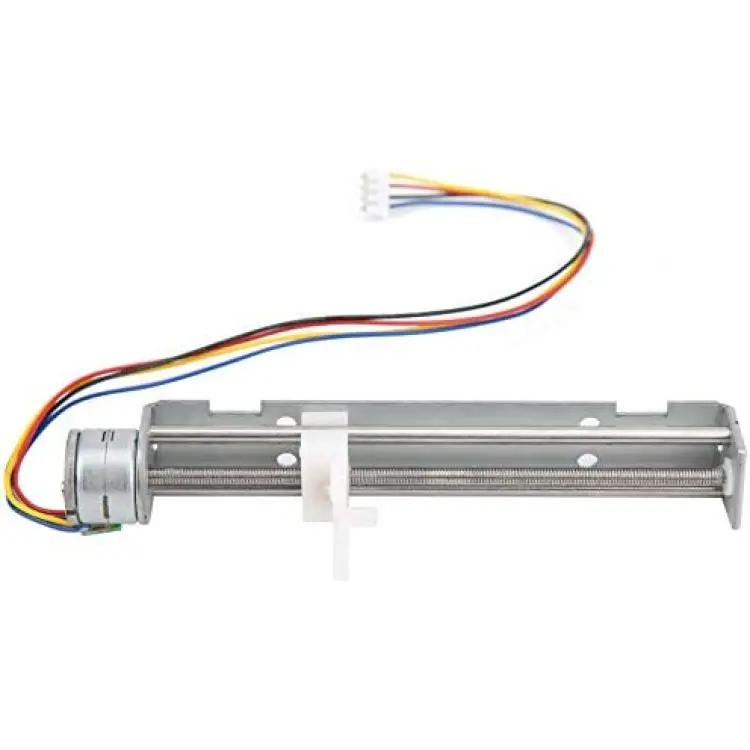

Electric Linear Guide Rail Motion Slide Actuator Module 80mm Stroke Driven by 2Phase 4Wire Stepper Motor for DIY CNC Linear Position Kit Engraving Machine
About this product
*【Application】The linear actuatior can be used in DIY small slider/project/equipment measurement/CNC machine.
*【Stepper Motor】2phase 4wire micro stepper motor come with planetary gearbox, planetary gearbox reducer adopts all metal structure.
*【Precise】The stroke drive accurate diagonal lines to move the metal slider up and down, the bracket is basically made of metal structure.
*【Stable】Using high class materials with good quality to guarantee stable performance and high working efficiency.
*【Practical】Adopt advanced technology with fine workmanship, which is a necessary linear moving parts, very practical in industry.
Description
Specification:
Item Type: Stepper Motor Linear
Motor Type: 2-Phase 4-wire
Drive Voltage: 4-9V/100-500mA (the higher the voltage, the greater the force, the greater the heat)

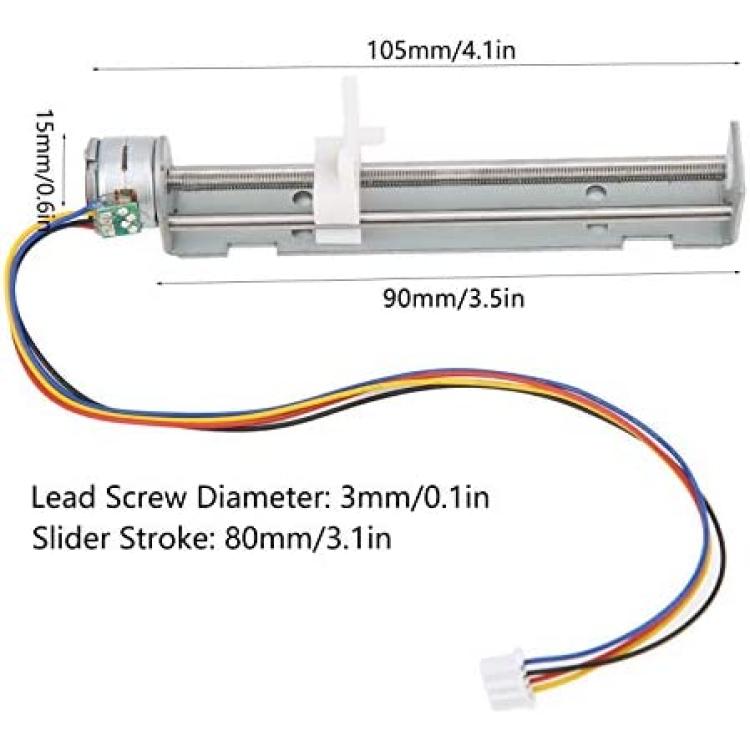

Lead Screw Length: Approx. 90mm / 3.5in
Slider Stroke: Approx. 80mm / 3.1in
Motor Diameter: Approx. 15mm / 0.6in
Lead Screw Diameter: Approx. 3mm / 0.1in
Lead Screw Pitch: 0.5mm
Step Angle: 18°
Phase Resistance: 15.5 ohms
Overall Size: Approx. 15 x 105mm / 0.6 x 4.1in
Blue A+
Black A-
Red B+
Yellow B-
Package List:
1 x Stepper Motor Linear
Note:
Note that it's a stepper motor, directly connected to the power will not rotate, need stepper motor drive board and control board.
