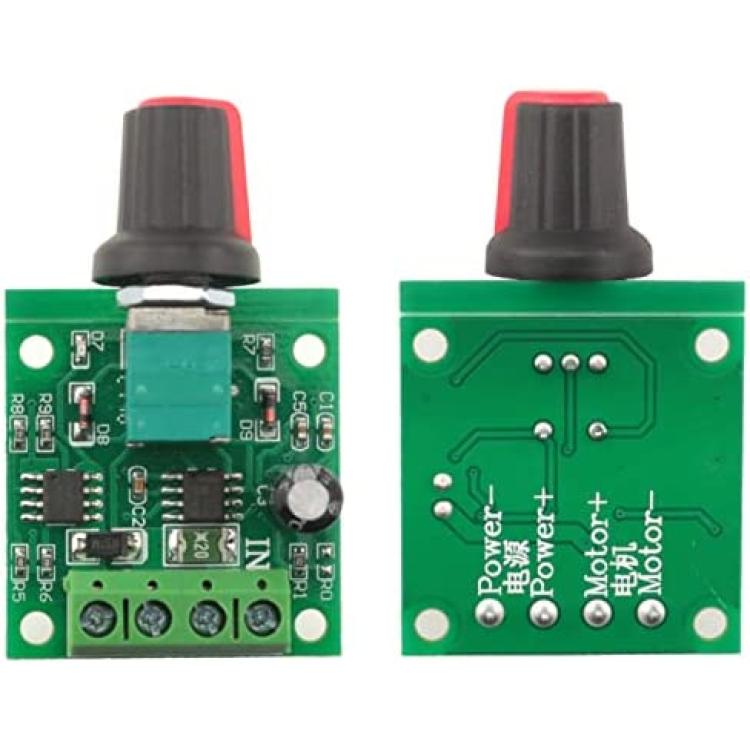

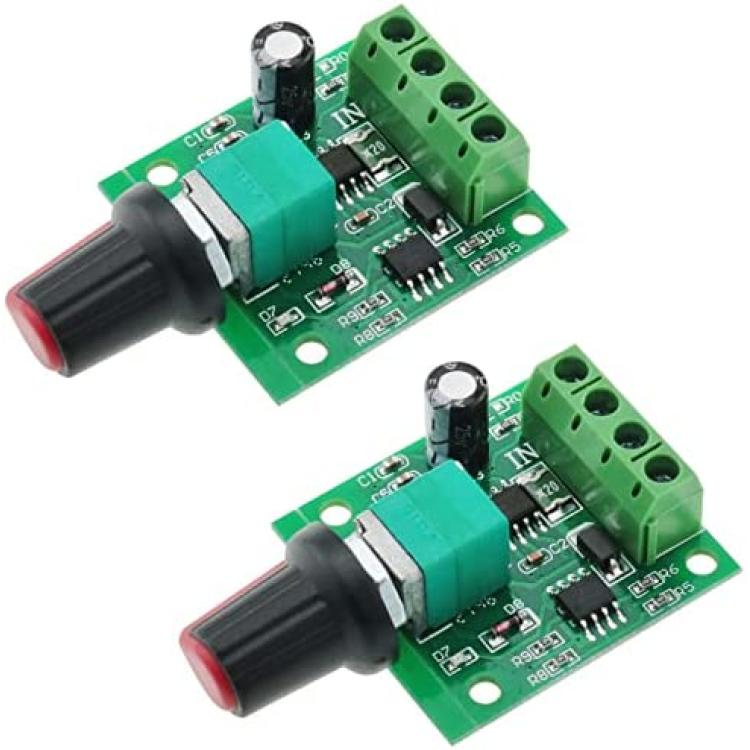

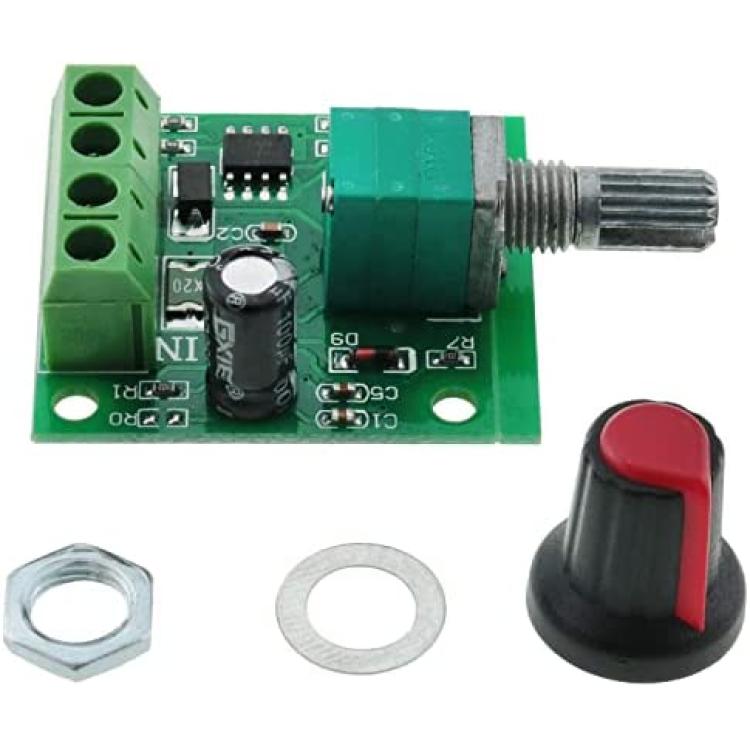

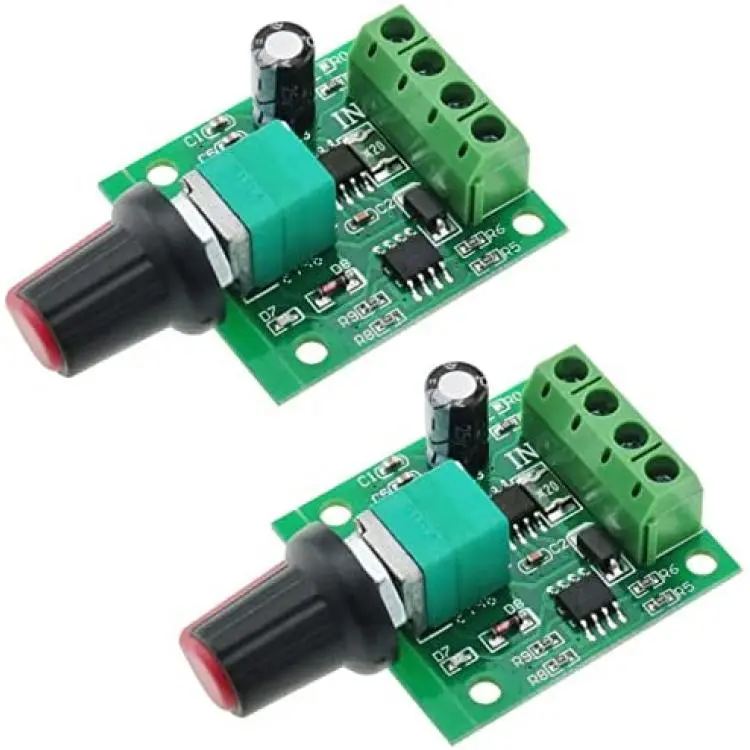

DC Motor Speed Controller MTQY 2PCS DC 1.8V-12V 2A 30W Low Voltage PWM 1803BK 1803B Adjustable Driver Switches with Control Knob
About this product
*High quality PWM DC motor speed controller with on/off function and power-on LED light.
*The DC motor speed controller allows the DC direction of the motor to be controlled using a pulse width modulated (PWM) DC voltage. Adjustable duty cycle: 0%-100%.
*Motor governor with resettable fuse 2A and Power-On LED light, the maximum current of the governor is 2A.
*If the current is too large, it will automatically disconnect, and the fuse will automatically recover after cooling.
*Packing List: 2PCS DC Motor Speed Controller.
Description
Specification
Input power supply voltage: DC 2.2V-12V
Output voltage: 1.8V-12V
Maximum output power: 30W
Maximum continuous output current: 2A
Adjustable duty cycle: 0%-100%
Working temperature: -10-70 degrees Celsius

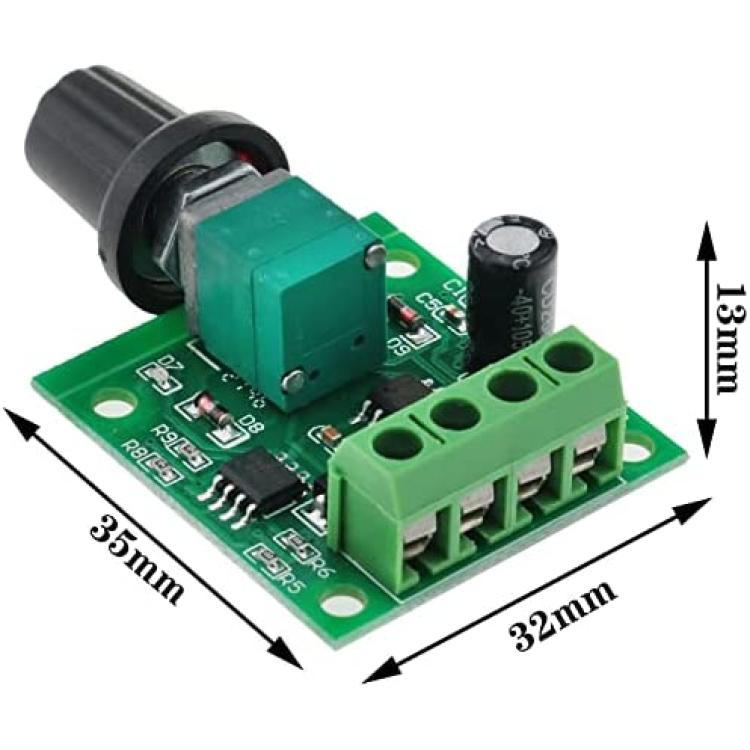

Size: Approx. 32x35x13mm/1.26x1.38x0.51inch
Potentiometer opening size: 8mm
Package Included:
2PCS DC Motor Speed Controller
Important hint:
The DC power supply of the DC motor governor should not be directly connected to the household 220V AC power.
A properly rated fuse (rated slightly higher than your expected maximum current) is recommended for safe operation.
Double check all connections before applying power, and always turn off power before making any wiring changes.
