PAGOW DC Motor Speed Controller 12v , Low Voltage PWM 1083BK 1803B Adjustable Driver Switch with Control Knob 1.8v 3v 5v 6v 7.2v 12v 2A 30W (2 PCS)
About this product
*The high quality PWM (Pulse-Width-Modulated) DC motor speed controller with switch function
*The motor speed controller with a self-recovery fuse 2A and a Power-On LED light, maximum current of governor is 2A, not suitable for supply power greater than 12V, such as 12V lead-acid batteries, which may cause damage to the governor. This mini controller will be disconnected automatically if the current is too large and the fuse will recover automatically after cooling
*PAGOW PWM 1803BK DC motor speed controller allows controlling the direction of a DC the motor using a Pulse-Width-Modulated (PWM) DC voltage. Duty cycle adjustable: 0%-100%.

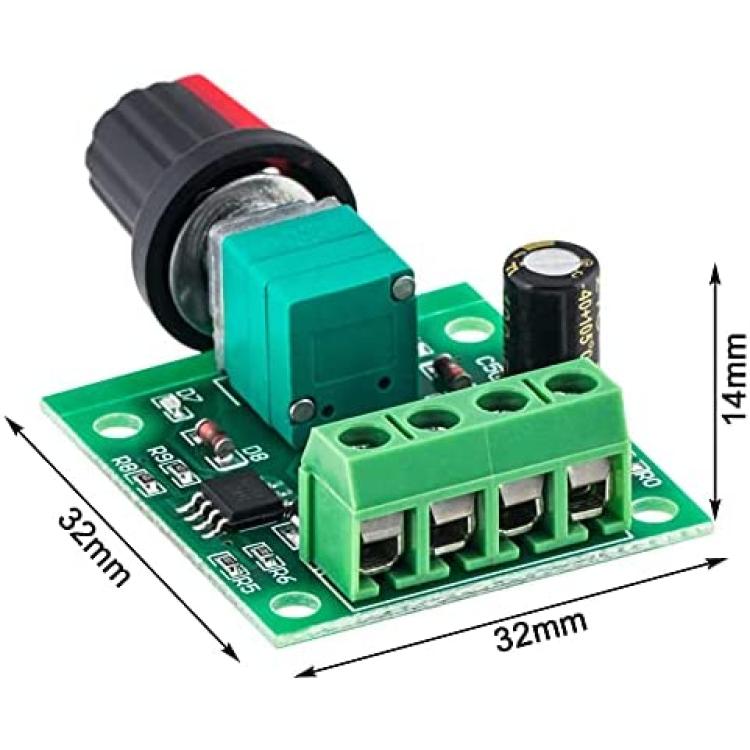

*Size: approx. 32*32*15mm/1.25*1.25*0.59

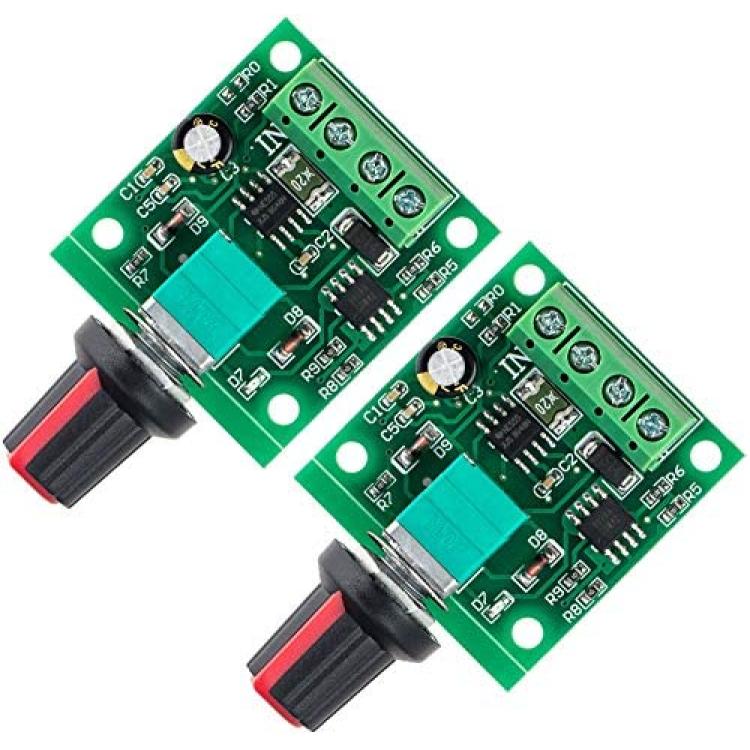

*Package Included: PAGOW 1083BK Low Voltage Adjustable Driver Switch (2 PCS)
Description
Item Name : PAGOW 2 Pack DC Motor Speed Controller,1.8v 3v 5v 6v 7.2v 12v 2A 30W Low Voltage Adjustable PWM 1083BK Driver Switch,with a self-recovery fuse 2A and a Power-On LED light
specification :
Material : Metal
Input supply voltage:1.8V-15VDC
The max output power:30W
The max continuous output current :2A
Duty Cycle adjustable: 0%-100%
Weight : 14 g
Size: approx. 32*32*15mm/1.25*1.25*0.59''
Note :
1, Don not be directly connected to household 220V AC,please allow 1-3 mm difference due to manual measurement.
2, PWM (Pulse-Width-Modulated) DC motor speed controller with switch function.
3, The controller is safe with a self-recovery fuse 2A . Please double check all connections before applying power,and keeping turn off the power supply before attempting to wire the controller .
4, The 1803BK DC Motor Speed Controller will be automatically disconnected if current too large,and the fuse will recover automatically after cooling.
Package List : 2 x PWM Low Voltage DC Motor Speed Controller 2 x Speed Control Knob
