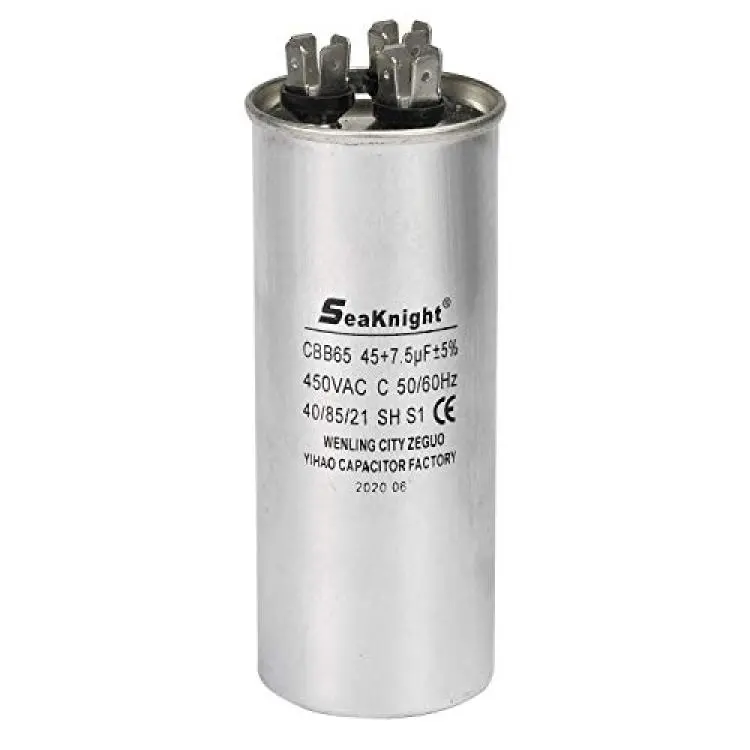

BlueNatHxRPR 45+7.5 MFD uF Air Conditioner Capacitor CBB65 Capacitor Dural Motor Run Capacitor Withstand 450V AC Round

BlueNatHxRPR 45+7.5 MFD uF Air Conditioner Capacitor CBB65 Capacitor Dural Motor Run Capacitor Withstand 450V AC Round

Product Code: MM7015
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Production Name: Air Conditioner Capacitor, Module Type: CBB65 High Capacity Metallized Polypropylene Capacitor, Withstand Voltage: 450V AC, Capacity Volume:45 + 7.5 MFD uF, Dural, Tolerance:+/- 5%

*Standard and professional capacitor for air conditioner and heat pump,One capacitor combined 2 capacitors, 45 uF for condensor, 7.5 uF for heat dissipation blower fan, Saving your space and repair time

*Built to the TOUGHEST USA standards for AC motor run capacitors including EIA-456-A and IEC 60252-1:2001,safe and durable

*Direcly replace Z97F9969 97F9969 very compatible

*450V series air conditioner capacitor can replace 250, 330, 370, 440V series, more convenient for fast repairing

Description

Production Name: Air Conditioner Dural Capacitor

Module Type: CBB65 High Capacity Metallized Polypropylene Capacitor

Withstand Voltage: 450V AC

Capacity Volume: 45+7.5 MFD uF

Tolerance: +/-5%

Working Temperature Range: -40?/-40? - 85?/185?

Feet Pins: 3, H for condensor,F for cooling fan, C for common feet

Terminal Size: 1/4 in Standard Terminal(6.3x0.8mm)

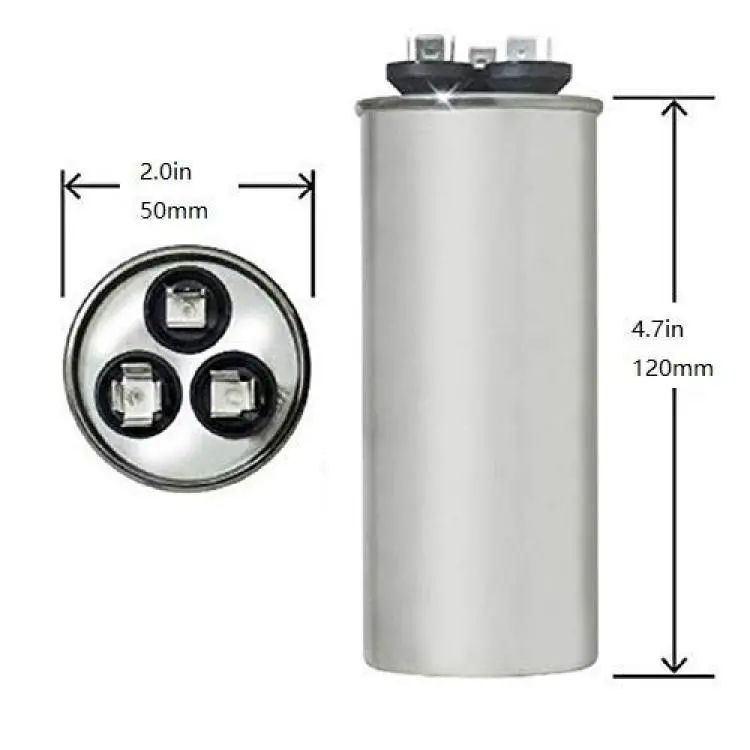

Overview Size(with Feet):50*50*120mm/2.0*2.0*4.7in

NetWeight:247 g/8.7oz

Remark:

1.Safe first, unplug and power off, advise to wait for at least 1 minute to let capacitor to release high voltage

2.Please conform high voltage is already released, advise to use a nipper pliers to short capacitor foot and common foot to double conform release voltage,notice your hand needs to hold the insulated part of nipper pliers

3.The common phenomenon of air conditioner capacitor broken is that compressor can not start or moving strengthless

4.High withstand voltage capacitor can replace the low withstand voltage capacitor, such as 450V withstand capacitor can replace the 370V capacitor with same volume, yet the 370V can not replace the 450V capacitor.

5.Normally the relative air conditioner's fan blower capacitor are 5, 7.5, 10,20 microfalad, 5 and 7.5 are mostly common
