DC 4.8-6V Servo Motor, 360 Degree Continuous Rotation Servos, RC Motor for Vehicle Ship Plane Model
Availability: Pre-Order, Inquiry Price
About this product
*[Specifications] This servo motor is 40.8*20*39.5mm / 1.6*0.8*1.6inch in size, its working voltage is DC 4.8 - 6 V, its torque is 5.5kg/cm at 4.8V.

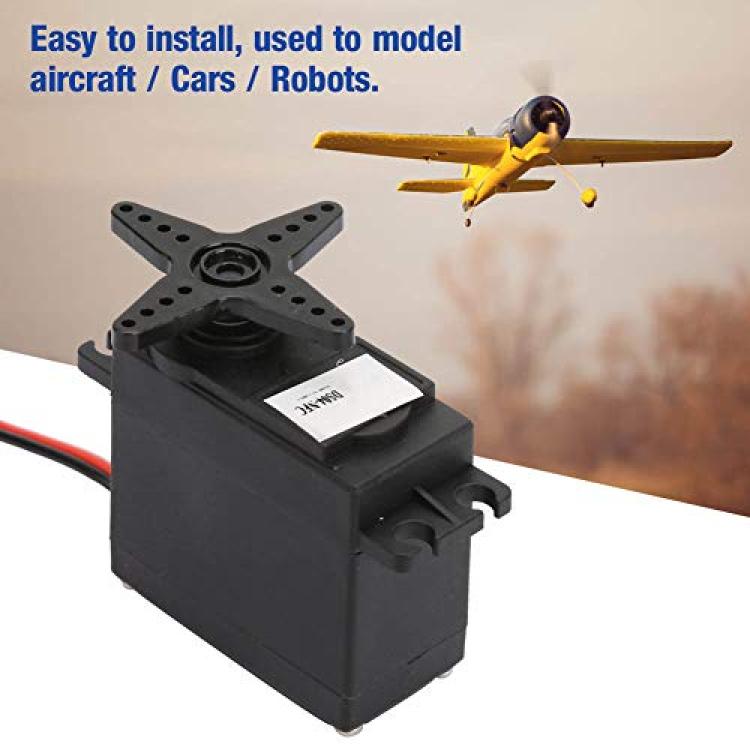

*[Wide Range of Applications] The servo motor is ideal for crafting RC vehicle, ship, and plane Models, and robots.
*[High Quality] This motor features high quality, fine workmanship and good performance, it is stable and sturdy for long service life.
*[Compact Motor] This motor is compact in size and light weight, it is easy to carry and use.
*[Adjustment] This motor has a median adjustment potentiometer (open shell to see), debugging can be high pulse is set at 1.5 ms to observe the steering gear stall, if you stop and turn on the regulation potentiometer until the stall so far, so the zero.
Description
Description:
50 HZ square wave input. The duration of high level pulse can control speed and forward/backward rotation as well as stalling. The duration of high level corresponds to a speed. When high level is 1ms - 1.5ms, servo rotates forward(the rotate speed is the fastest when it is 1ms, the higher the lower, servo will stop rotating when reaching 1.5ms). When high level is 1.5 - 2ms, the servo rotates backward(The servo stops rotating when reaching 1.5ms, when the duration is closer to 2ms, the closer, the faster. The backward rotation speed, the fastest when reaching 2ms)
Specification:
Condition: 100% Brand New
Item Type: 360 Degree Continuous Rotation Servo Motor
Material: Metal + Plastic
Color: Black

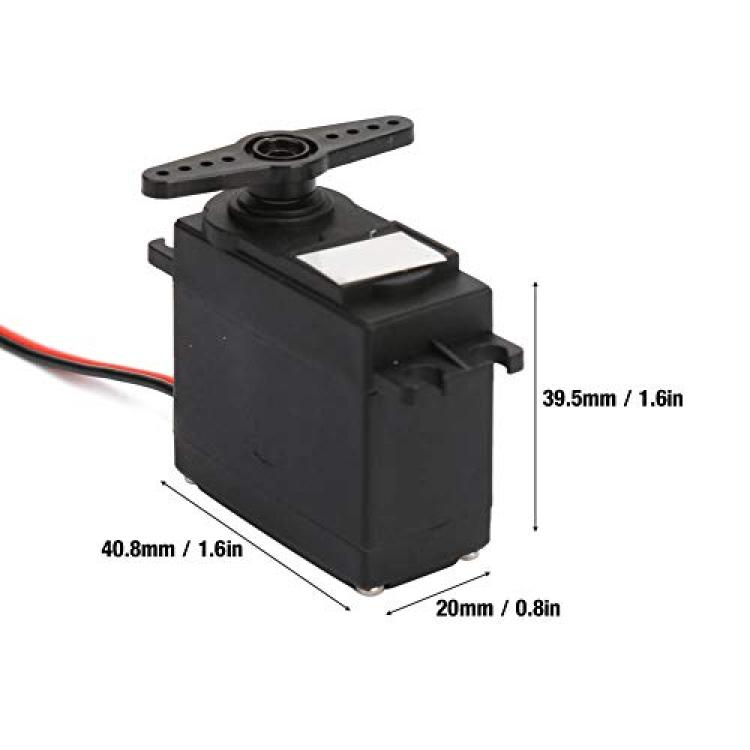

Product Size: Approx. 40.8*20*39.5mm / 1.6*0.8*1.6inch
Weight: Approx. 52g / 1.8oz
Torque: 5.5kg/cm (at 4.8V)
Uses: Aircraft models, Car models, Robots, etc.
Working Voltage: 4.8V-6V
Operating Temperature: 0°C - 60°C
Current Usage: <1000mA
Wiring Method:
Three lines: red line, black line, and white line.
1. The red line is the positive pole of the power supply, connected to the positive pole of the 5V-6V DC power supply.
2. Black wire is connected to the negative pole of the power supply.
3. White line signal input, which is the 50HZ signal input line mentioned above.

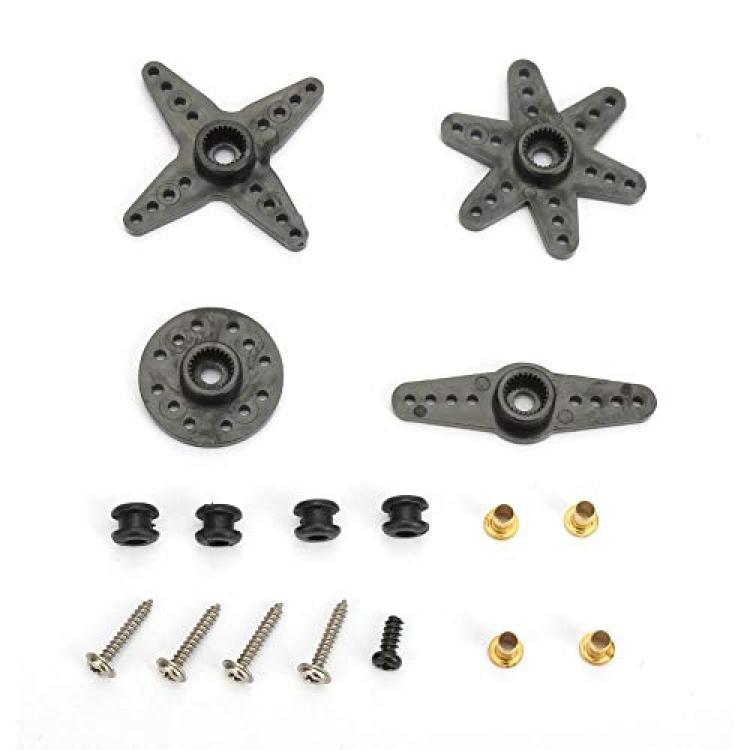

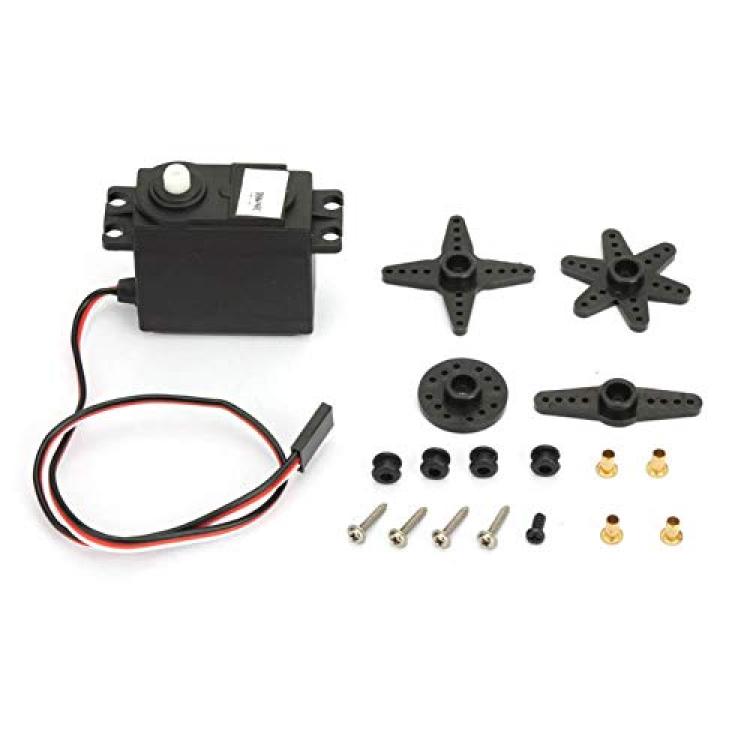

Package list:
1 x 360 Degree Continuous Rotation Servo Motor
4 x Rocker Arm
4 x Rocker Arm Cap
4 x Rat-tail Screw
4 x Flat Tail Screw
1 x Black Flush Tail Screw
Notes:
1. The actual product color may deviate from the photo due to light.
