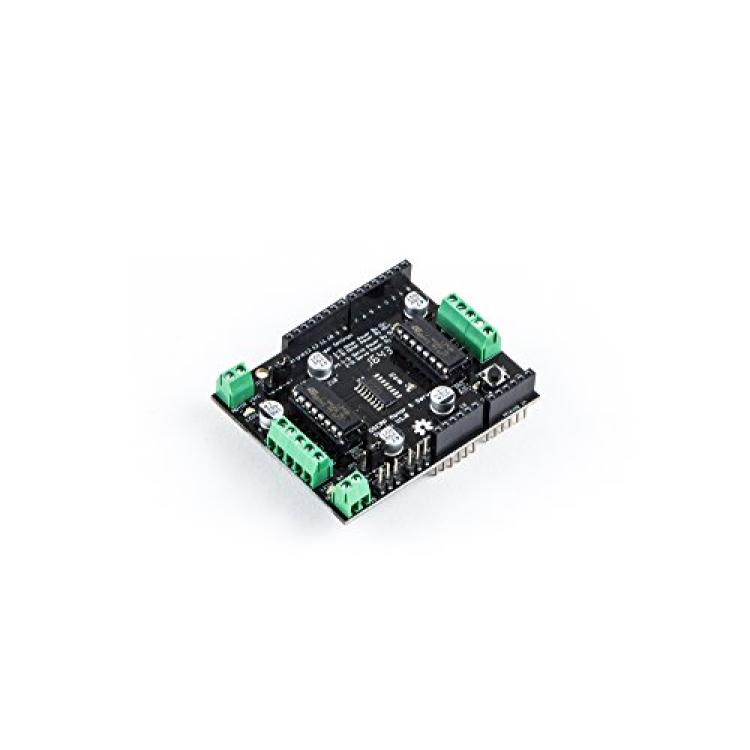

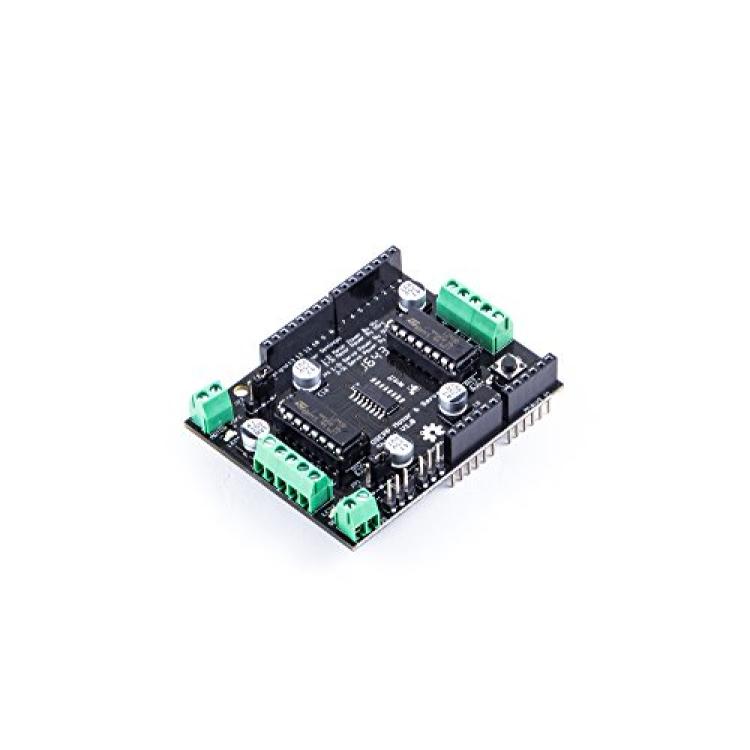

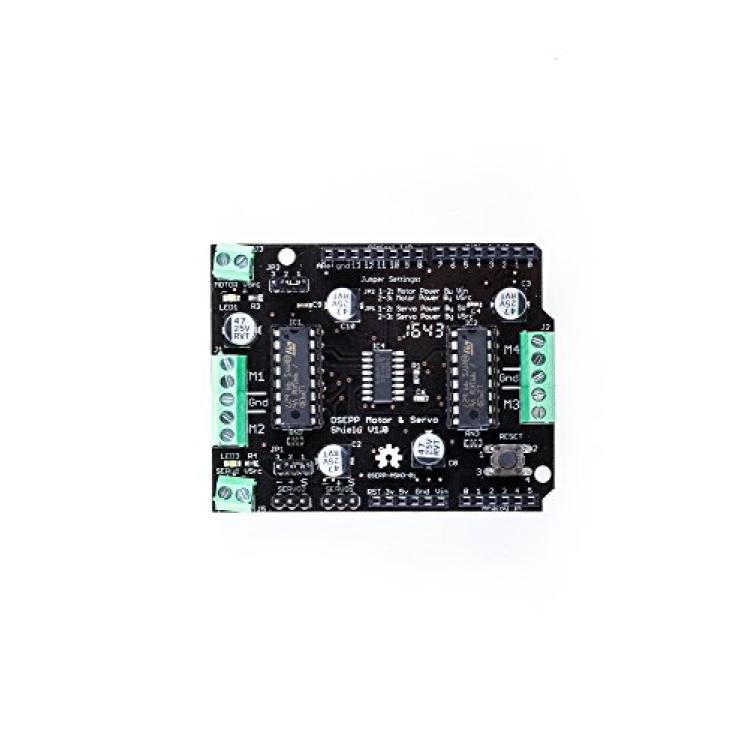

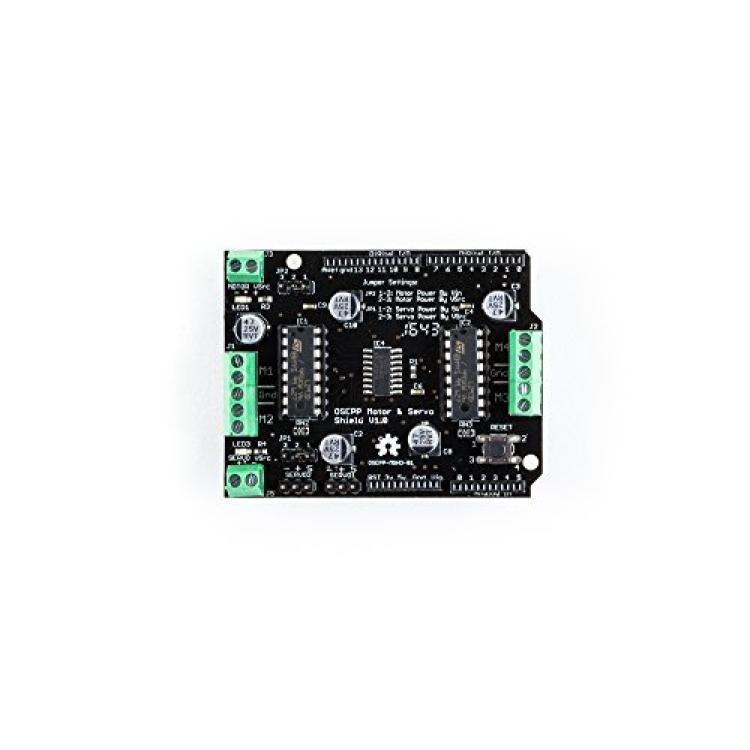

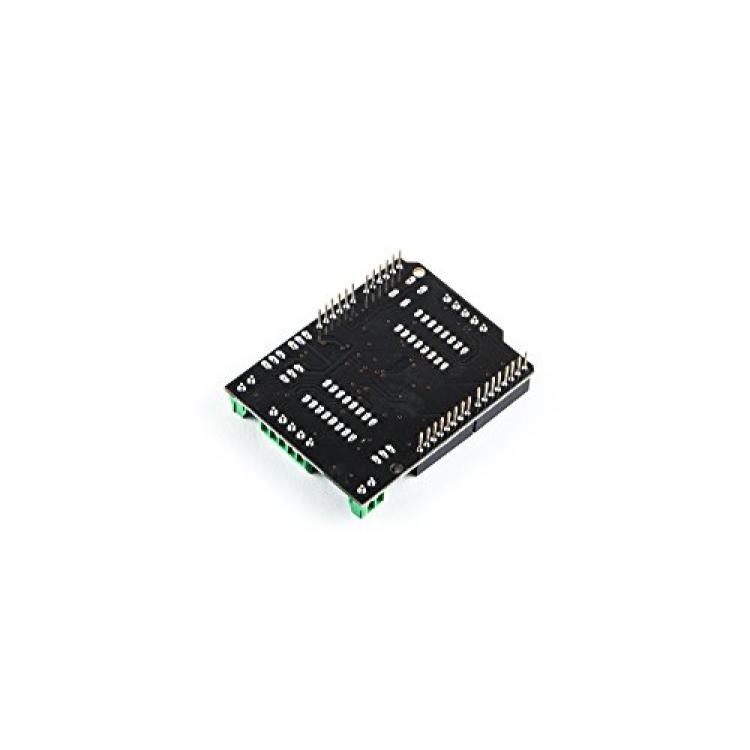

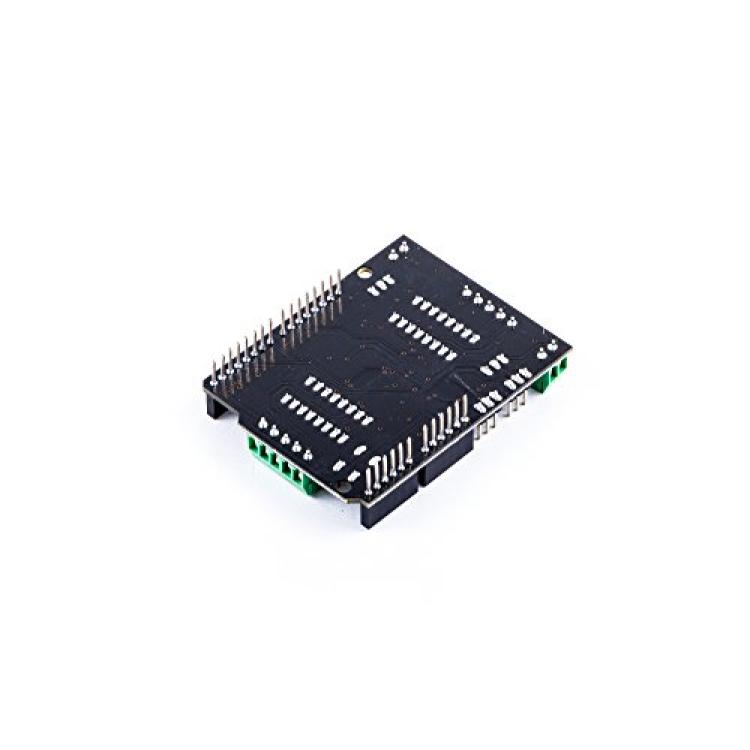

OSEPP SCSHD-01 Motor and Servo Shield, 4 x DC
Availability: Pre-Order, Inquiry Price
About this product
*Mate with arduino and arduino compatible boards
*Provides connectors to support 2 servos
*Servo power supply can be configured to source from the servo power terminal block or from the arduinos 5V pin
*Support up to 4 bi-directional dc motors with individual 8-bit speed selection, and up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping
*Integrated pull down resistor to keep motor disable during start up
Description
The OSEPP motor and servo shield can plug directly onto the arduino and arduino compatible boards. It supports up to 2 servo motors and 4 bi-directional DC motors, or 2 servo motor and 2 Stepper motors. Servo header and terminal blocks are provided for easy connection to motor. The servo power supply and motor power supply can be configured to source from an individual terminal block or from the arduino board providing options for your project. The shield is compatible with the afmotor library, and you can download the library here.
Small parts. Not for children under 3 years.
