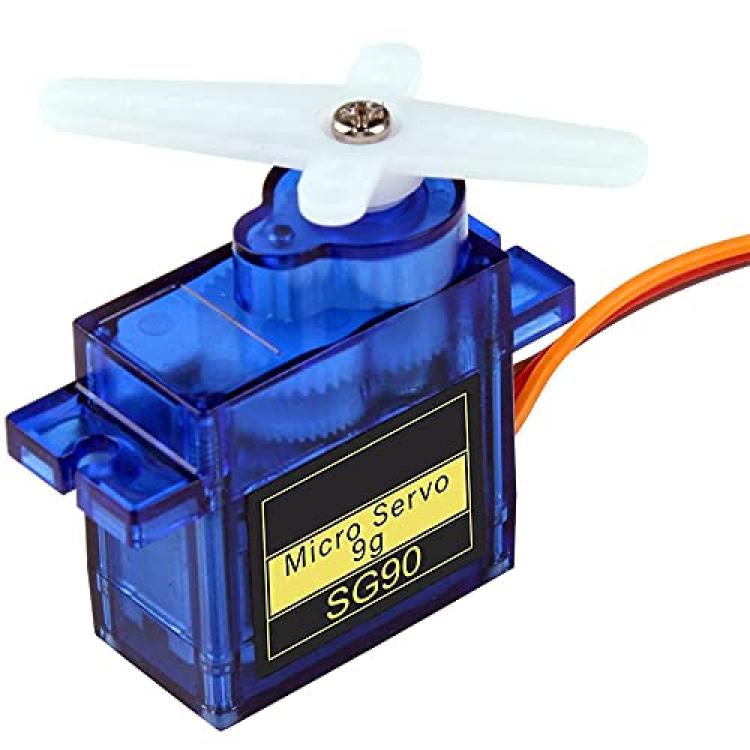

MMOBIEL SG90 9g Micro Servo Motor Kit for RC Drone/Car/Airplane/Helicopter/Vehicles/Robots/Compatible with Arduino Projects and Raspberry Pi Incl. Screws and 3 Servo Arms
Availability: Pre-Order, Inquiry Price
About this product
*Features: Interface Type: Compatible with JR & FUTABA interface. Created from the Highest Quality Parts Available and Put Together with Care, to give You the Best Experience in Controlling Your Remote Controlled Vehicle.

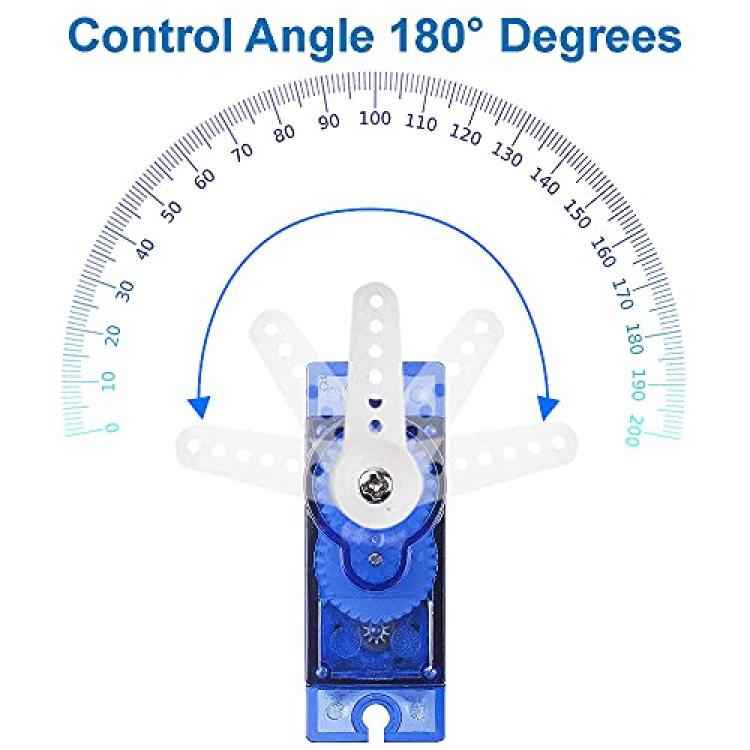

*Servo Motor Specs: No Load Running Speed: 0.09±0.01 sec/60° Degree at 4.8V; Stall Torque (4.8V): 17.5oz/inch / 1kg/cm, Type: Analog Controller, Operating Voltage: 4.8V - 6.0V, Left & Right travelling Angle deviation: ≤ 6° Degree, Centering deviation:≤ 1° Degree, Maximal Angle 120° Degree Neutral position: 1500 μsec, Dead band width:7 μsec, Rotating direction: Counter Clockwise (900→2100μsec), Pulse width range: 900→2100 μsec, Operating Temperature Range: -10℃～50℃elcius
*Compatible with Remote Control Drones, Helicopters, Cars, Boats, and all sorts of RC Toys and hobby projects. Can also be used with any type of Arduino project, Raspberry Pi, Futaba, JR, Sanwa and Hitec remote system.

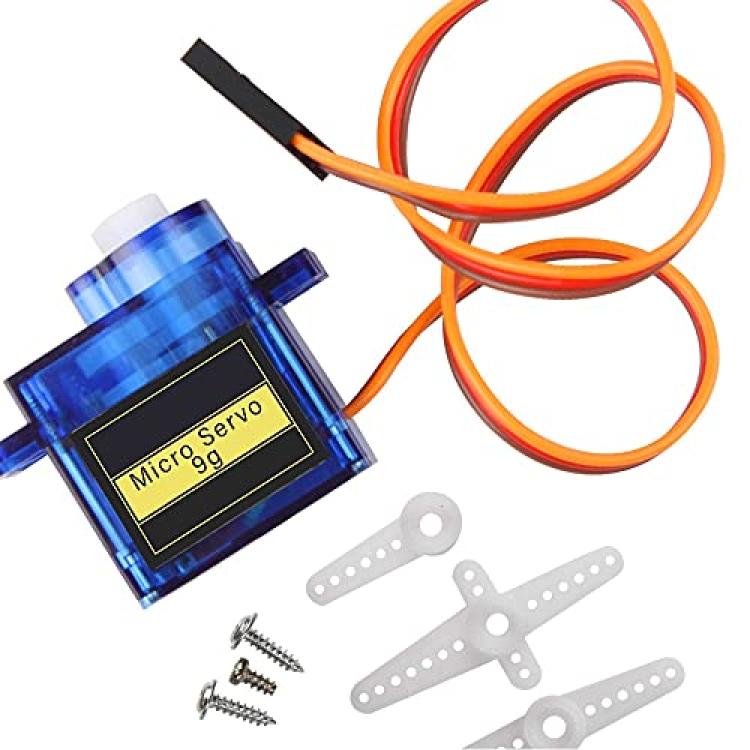

*Set Contains: 1x SG90 Micro Servo Motor 9G, 1x 3 Colored Cable (Brown / Yellow / Red) with a Futaba Connector Plug, 3x Servo Horn Steering Arms, 3x Stainless Steel Screws in different sizes: 9mm / 5mm
*High quality product by MMOBIEL: Each part is tested before shipment. Item in Stock.
Description
Features: Interface Type: Compatible with JR & FUTABA interface. Created from the Highest Quality Parts Available and Put Together with Care, to give You the Best Experience in Controlling Your Remote Controlled Vehicle. Servo Motor Specs: No Load Running Speed: 0.09±0.01 sec/60° Degree at 4.8V; Stall Torque (4.8V): 17.5oz/inch / 1kg/cm, Type: Analog Controller, Operating Voltage: 4.8V - 6.0V, Left & Right travelling Angle deviation: ? 6° Degree, Centering deviation:? 1° Degree, Maximal Angle 120° Degree Neutral position: 1500 ?sec, Dead band width:7 ?sec, Rotating direction: Counter Clockwise (900?2100?sec), Pulse width range: 900?2100 ?sec, Operating Temperature Range: -10??50?elcius Compatible with Remote Control Drones, Helicopters, Cars, Boats, and all sorts of RC Toys and hobby projects. Can also be used with any type of Arduino project, Raspberry Pi, Futaba, JR, Sanwa and Hitec remote system. Set Contains: 1x SG90 Micro Servo Motor 9G, 1x 3 Colored Cable (Brown / Yellow / Red) with a Futaba Connector Plug, 3x Servo Horn Steering Arms, 3x Stainless Steel Screws in different sizes: 9mm / 5mm High quality product by MMOBIEL: Each part is tested before shipment. Item in Stock.
