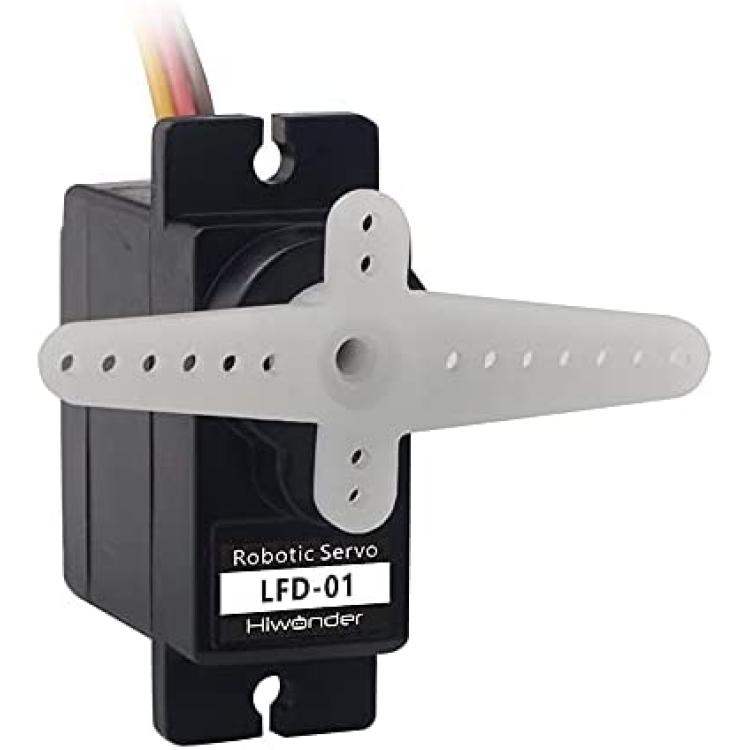

LewanSoul LFD-01 9G Robot Servo 180°Rotation Micro Servo Anti-Blocking for RC Robot (5PCS)
About this product
*Working voltage is 4.8-6V.
*Built-in anti-blocking algorithm is more durable.
*Optimize the design of metal gears to make the operation more smooth.
*Using the high quality material for better performance.
*Provide 51, Arduino, STM32 servo control program.
Description
Feature:
Working voltage is 4.8-6V.
Built-in anti-blocking algorithm is more durable.
Optimize the design of metal gears to make the operation more smooth.
Using the high quality material for better performance.
Provide 51, Arduino, STM32 servo control program.
Specification:
Type: LFD-01 Servo
Locked-servo current: 700mA
Control method: PWM
PWM pulse: 500-2500us(0-180°)
Rotate speed: 0.12sec/60°4.8V,0.10sec/60°6V
Locked torque: 1.5KG.cm 4.8V, 1.8KG.cm 6V
No-load current: 50mA
Weight: 10g
Size: 32.5*12*29.85mm
Working voltage:4.8V-6V
Servo wire: 26cm
Rotate range:0-180°

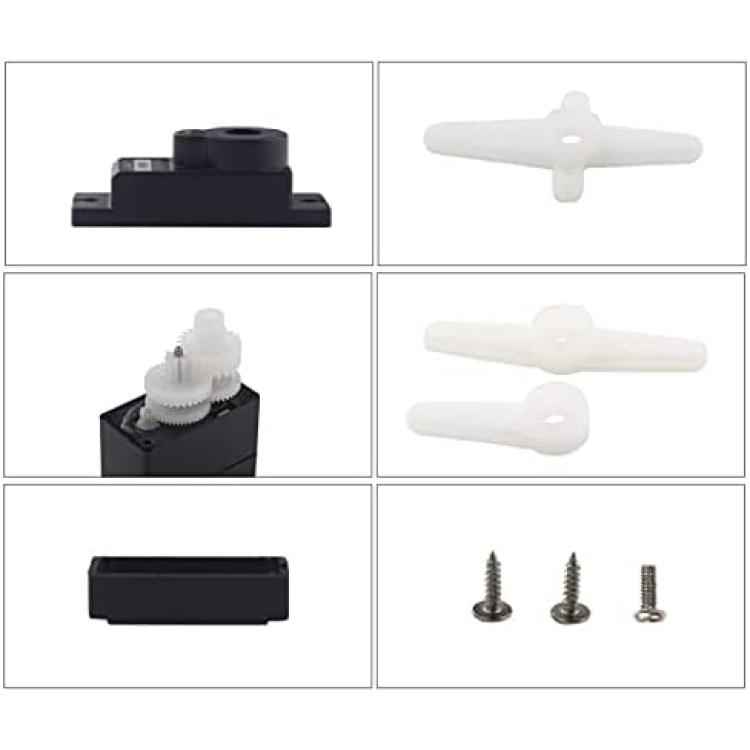

Package:

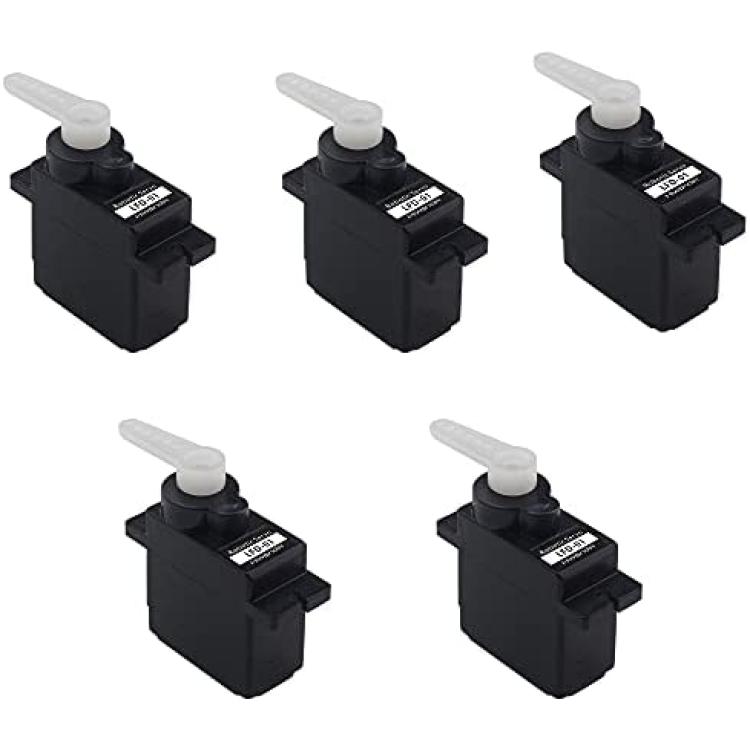

5*LFD-01 Digital Servo
5*Screw bag
